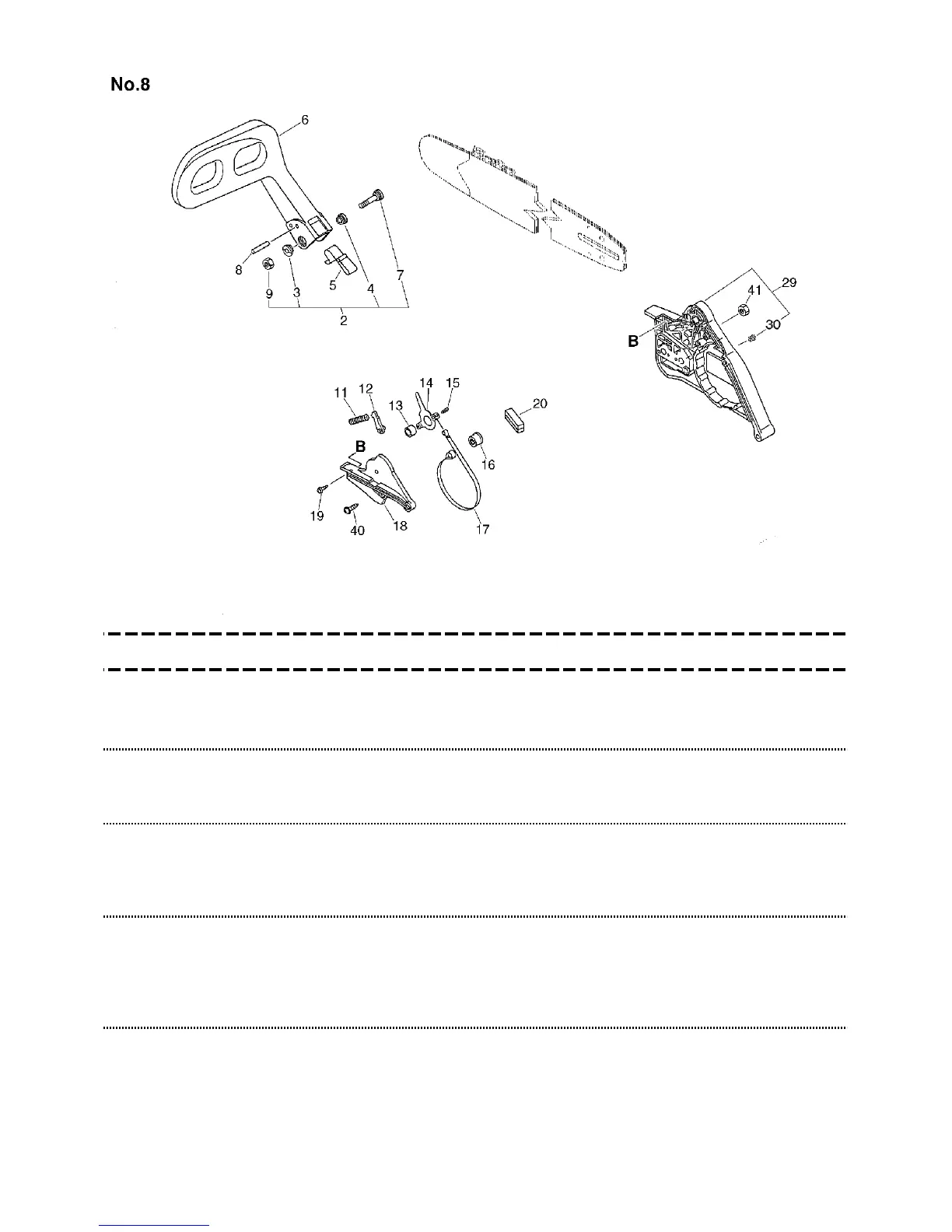

8. Chain Brake Asy
KEY LV PART NUMBER Q'TY DESCRIPTION REMARKS NOTE1
NOTE2
17 + 433123-38130 1 BAND, BRAKE
Sus. by 433123-
38131
17 + 433123-38131 1
BAND, BRAKE
18 + 433310-38130 1
COVER, BRAKE
19 + 900252-04012 2
SCREW 4*12
4*12
20 + 433312-32630 1
COVER, SEAL
29 + 433005-38130 1
GUARD, SPROCKET
Sus. by P021-
002282
29 + P021-002280 1
SPROCKET GUARD
Sus. by P021-
002282
29 + P021-002281 1
SPROCKET GUARD
Sus. by P021-
002282
29 + P021-002282 1
SPROCKET GUARD
30 ++ V162-000020 1
PLUG
Can be needed for
non-side-access
type models
40 + 900220-03018 1
SCREW (+-SR 3*18)
3*18
41 + 900500-00003 1
NUT 3
3
