Echo CS-6701(CE) User Manual

CS-6701(CE)

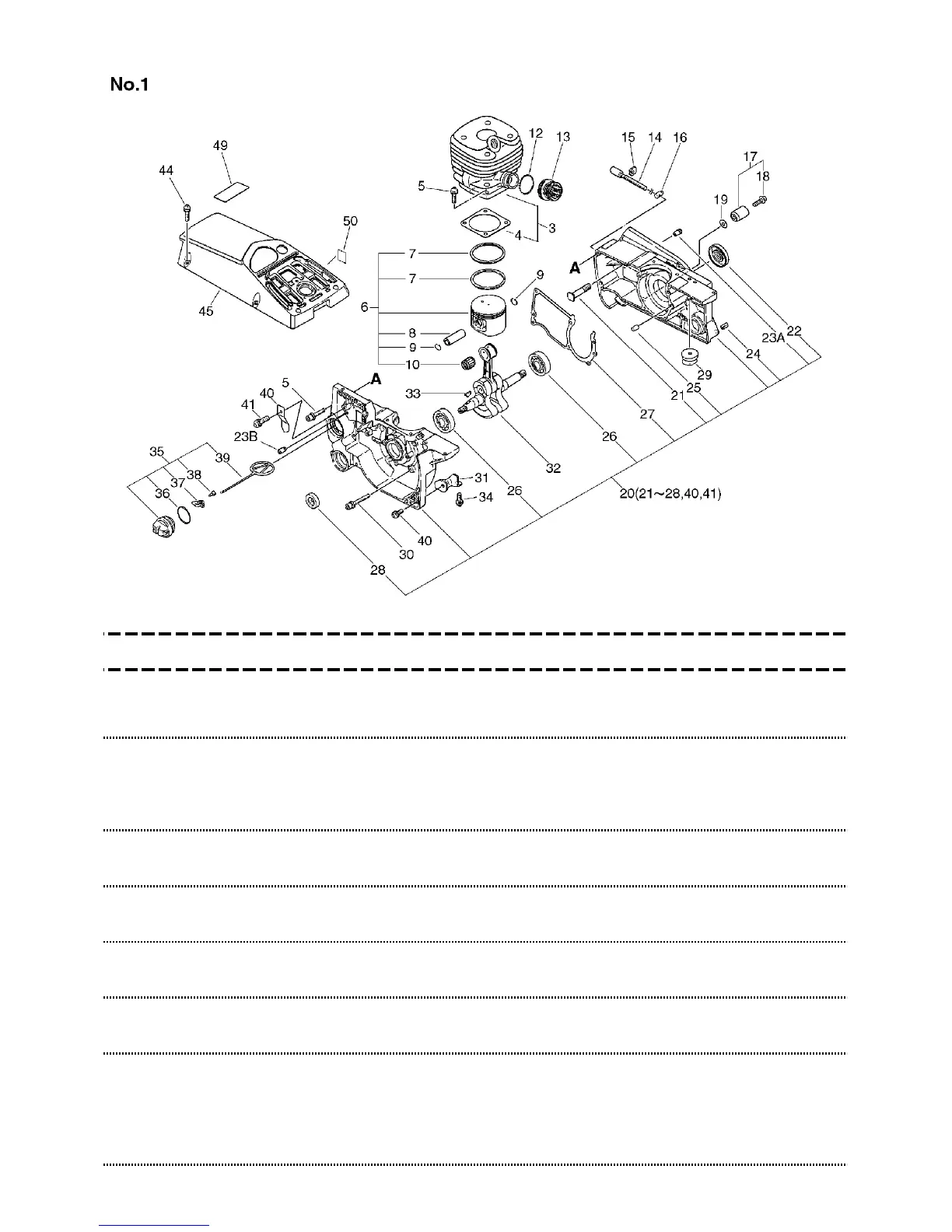

1. Cylinder, Crankcase, Piston
KEY LV PART NUMBER Q'TY DESCRIPTION REMARKS NOTE1
NOTE2
3 101001-32431 1 CYLINDER ASSY
4 + 101010-32431 1
GASKET, CYL. BASE
5 900162-05020 6
BOLT, H.S. 5*20
5*20 W,SW
6 100000-32431 1
PISTON KIT
Sus. by 100000-
32432
6 100000-32432 1
PISTON KIT
7 + 100011-32430 2
RING, PISTON
Sus. by 100011-
32431
7 + 100011-32431 2
RING, PISTON
8 + 100013-32430 1
PIN, PISTON
8*12*33.8
9 + 100015-00230 2
CIRCLIP, PISTON PIN
10 + 100012-32430 1
BEARING, NEEDLE
12 130516-30830 1
BAND
13 130510-32430 1
ADAPTER, INTAKE
14 433016-11031 1
SCREW, TENSIONER
15 433028-11030 1
CLIP
16 433014-02830 1
TENSIONER
17 433000-19831 1
CATCHER KIT, CHAIN
18 + 900220-05018 1
SCREW 5*18
5*18
19 900600-00005 1
WASHER 5
5
20 100204-32432 1
CRANKCASE KIT
Sus. by 100204-
32435
20 100204-32433 1
CRANKCASE KIT
Sus. by 100204-
32435
20 100204-32434 1
CRANKCASE KIT
Sus. by 100204-
32435
