Echo CS-6701(CE) User Manual

CS-6701(CE)

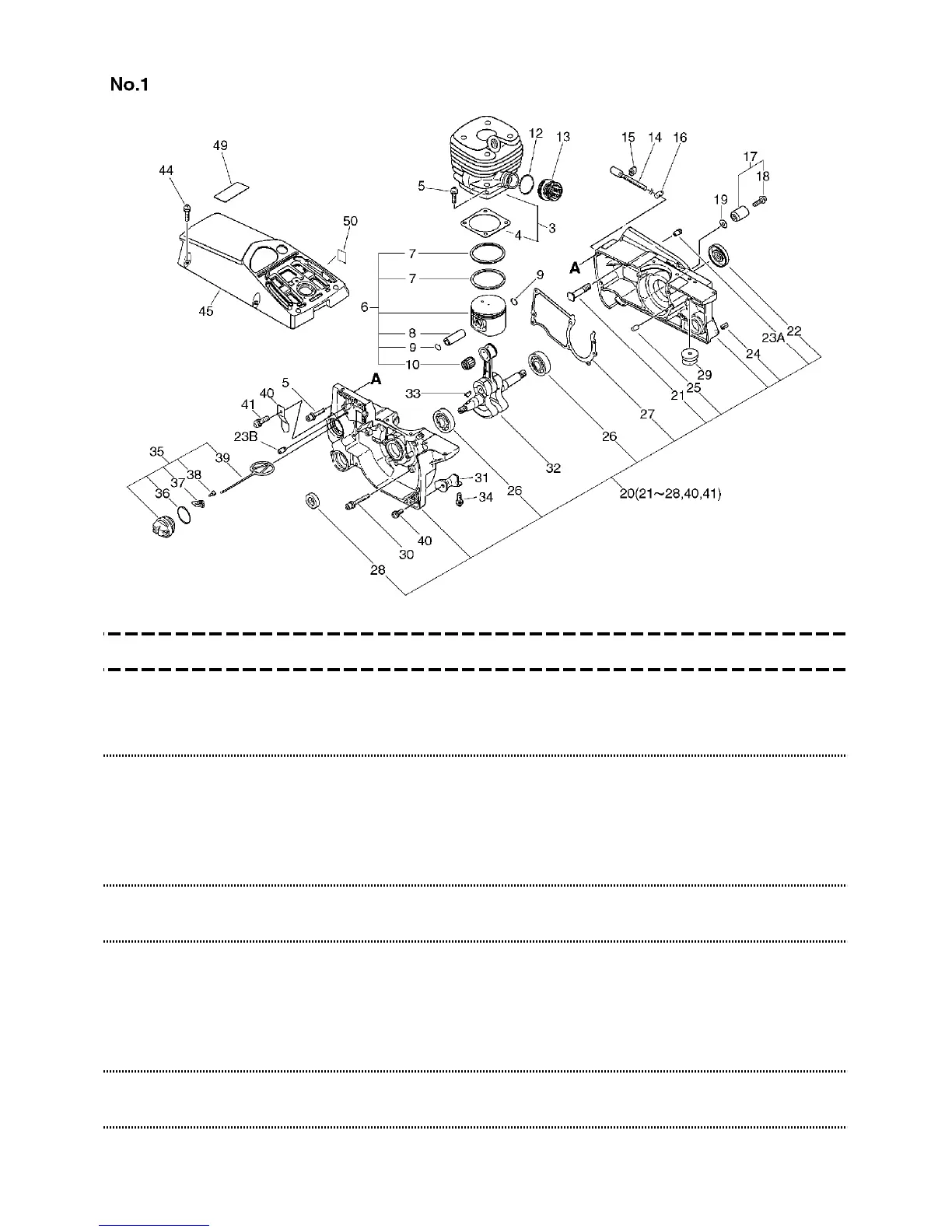

1. Cylinder, Crankcase, Piston
KEY LV PART NUMBER Q'TY DESCRIPTION REMARKS NOTE1
NOTE2
20 100204-32435 1 CRANKCASE KIT
21 + 433011-19830 2
STUD, GUIDE BAR
22 + 100212-32430 1
OILSEAL (L)
25Z-15*39.9*7
23A + 436114-13930 1
VALVE, CHECK
Can be used on the
100204-32432 only
23B + 436114-13930 1
VALVE, CHECK
Can be used on the
100204-32433 only
24 + 900345-50010 1
PIN, SPRING 5*10SUS
5*10SUS
25 + 100215-02830 2
PIN, DOWEL
26 + 900810-36202 2
BEARING, BALL 6202
6202/C3
27 + 100242-32430 1
GASKET, CRANKCASE
28 + 100212-19830 1
OILSEAL
ISM 15*25*6
40 + V150-000570 1
PLATE,EYE
Can be used on the
100204-32433 only
41 + 900242-04008 1
SCREW
4*8
Can be used on the
100204-32433 only
29 100251-32430 1
CUSHION (A)
30 900162-05035 4
BOLT, H.S. 5*35
5*35 W,SW
31 100917-32430 1
CUSHION (B)
32 100100-32430 1
CRANKSHAFT ASSY
33 100142-30830 1
KEY, WOODRUFF
