ES-255 ASSEMBLY
X7531180307 13
© 07/2013 ECHO Inc.
ASSEMBLY
Blower Application
Never perform maintenance or assembly procedures with engine running or serious personal injury
may result.

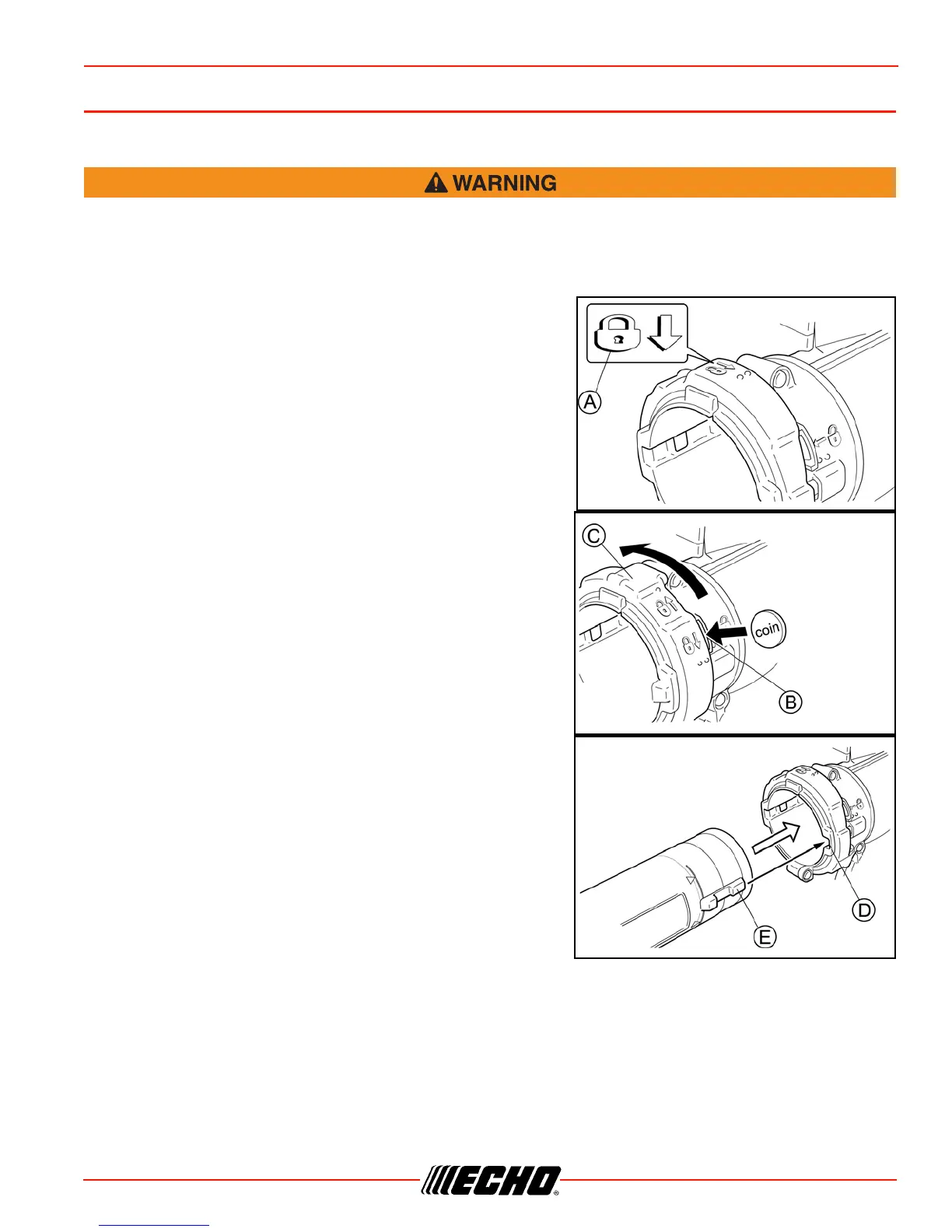

Install Blower Pipes
1. Stand unit upright on blower base.
2. Release locking ring (C) with a coin or screwdriver, and
rotate so that lock symbol (A) is at top of ring..
3. Align locking ribs (E) on mian blower pipe with recesses (D)
in locking ring, and slide mian blower pipe into locking ring.
