ASSEMBLY ES-255

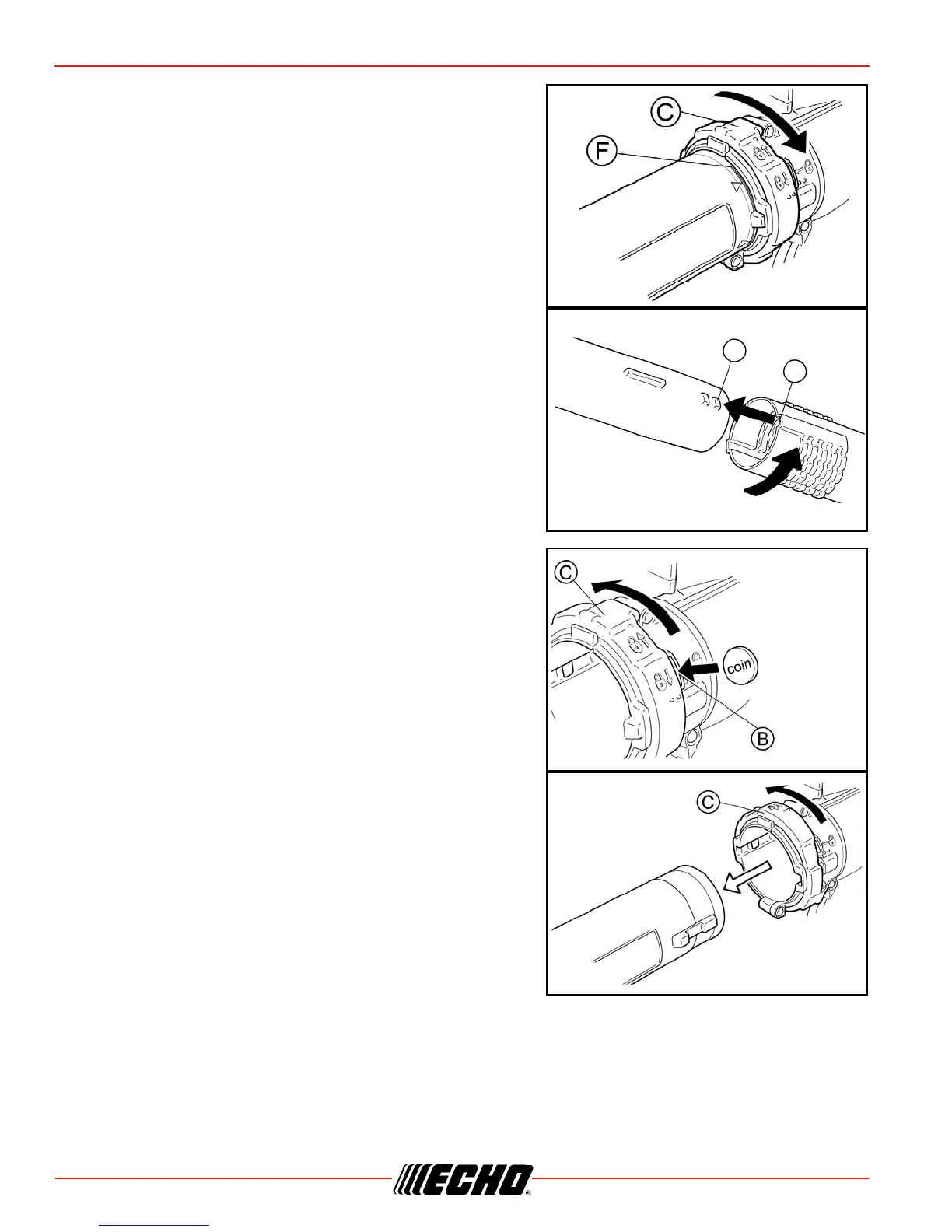

4. After inserting main blower pipe into fan case so that line (F)
meets locking ring (C), rotate locking ring clockwise 1/8 turn
to lock mian blower pipe in place..
5. Align groove (H) in fan-head pipe with tabs (G), and slide
fan-head pipe over main pipe until there is light resistance.
Do not force connection..
6. Hold main pipe, and turn fan-head pipe clockwise, engaging
positive locking channels until connection is firm.
Note: Blower use will eventually loosen pipe connections.
Exclusive positive locking system allows pipes to be
tightened. If loosening occurs, remove fan-head pipe,
and install according to instructions 5 & 6.
Remove Blower Pipes
1. Release locking ring (C) with a coin or screwdriver, and
rotate ring so that lock symbol (A) is at top of ring.
2. Remove pipes from locking ring.
Blower Pipe (main)
Blower Pipe
G
H
