Vacuum/Shredding Application

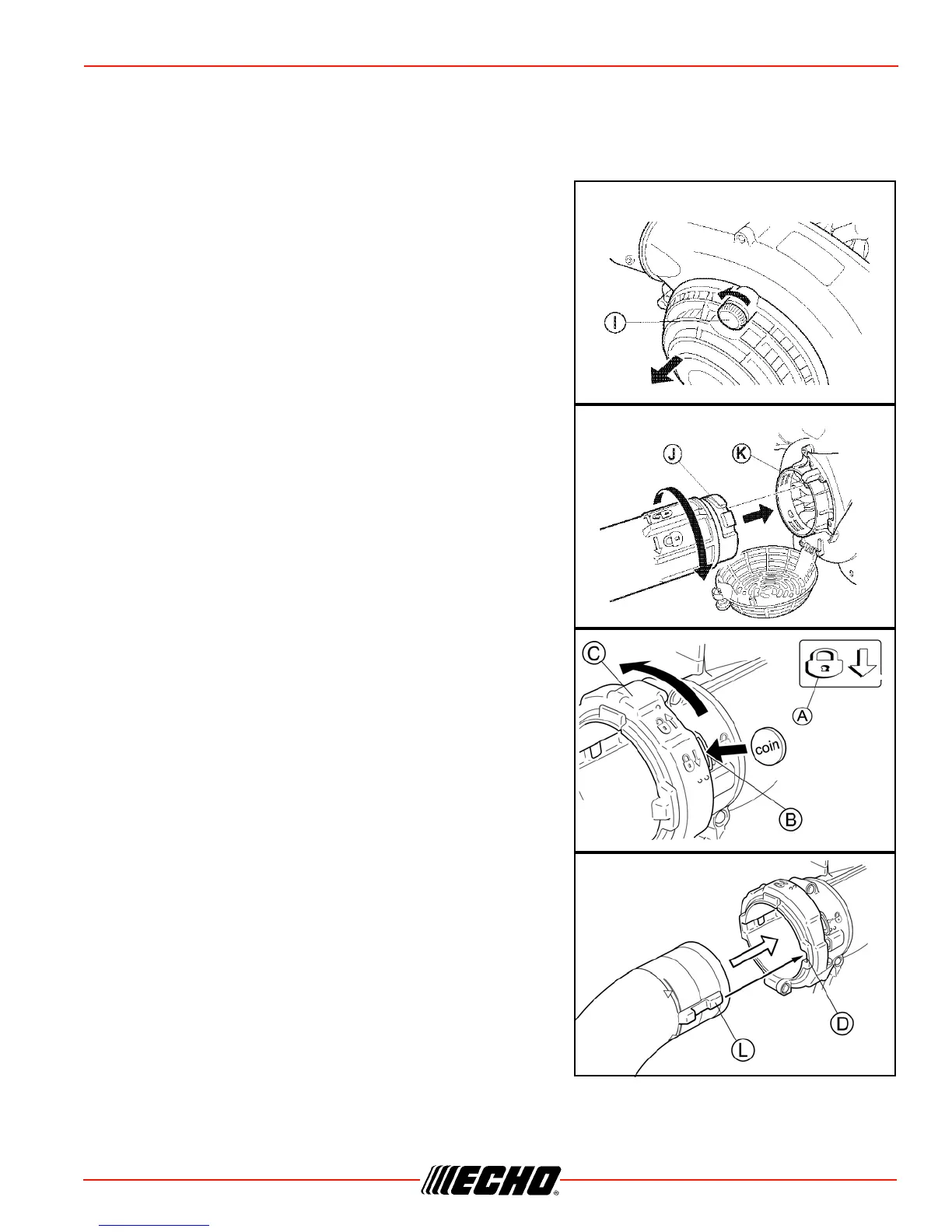

Install Vacuum Tube
1. Turn knob (I) counter clockwise until hinged housing cover is
free to open for vacuum tube installation.
2. Open housing cover, slide recess (J) on vacuum tube into
locking rib (K), and turn the vacuum tube clockwise so that it
is locked.
Note: Engine will not start/operate unless safety interlock
switch (K) is activated by the vacuum tube.
Install Bag
1. Stand unit upright on blower base.
2. Release locking ring (C) with a coin or screwdriver, and
rotate so that lock symbol (A) is at top of ring.
3. Align locking ribs (L) on elbow with recesses (D) in locking
ring, and slide elbow into locking ring.
