Gr a s s Tr i m m e r
Op e r a T O r 's ma n u a l
9

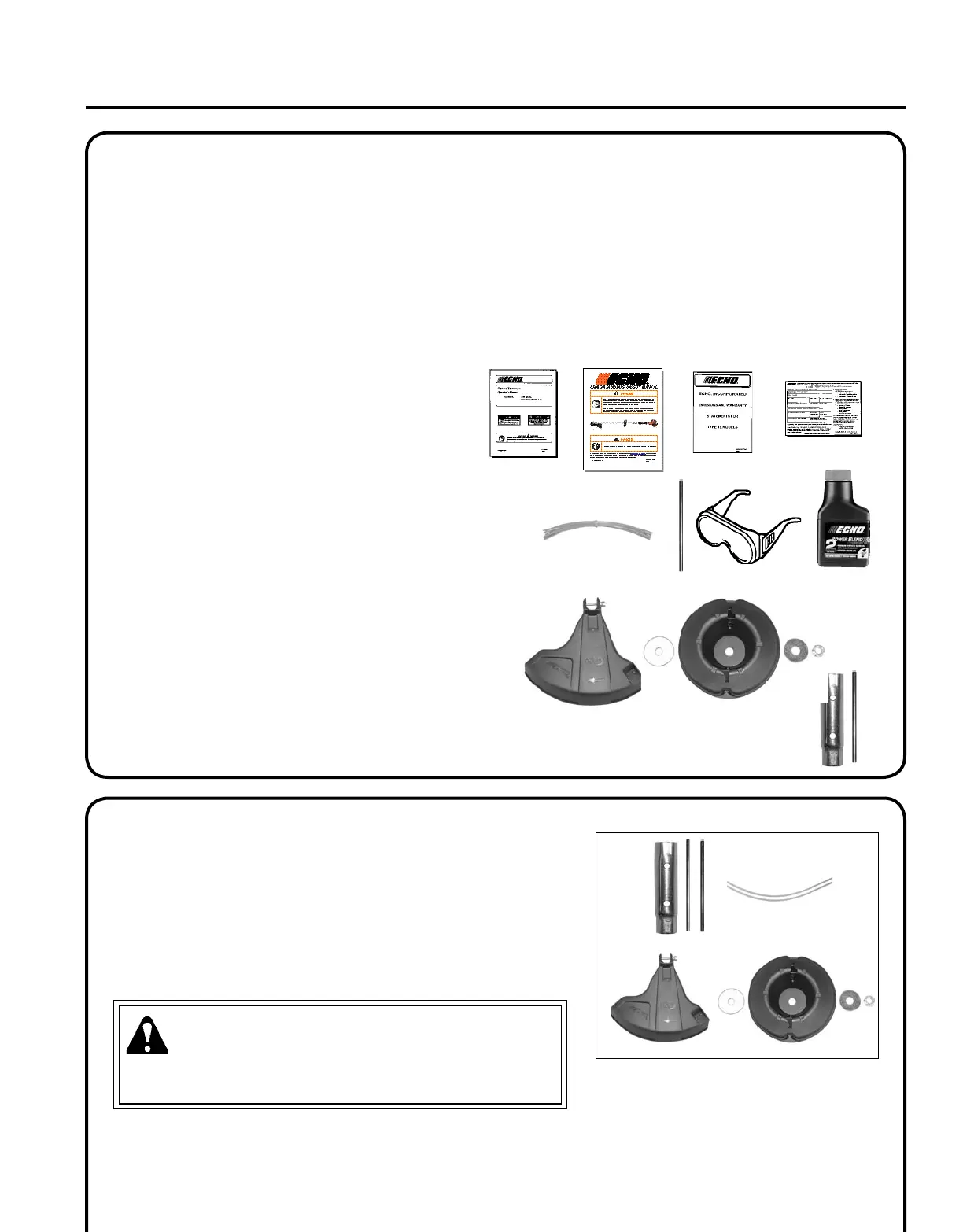

_____ - Trimmer Assembly:
_____ - Power Head
____ - Drive Shaft Assembly
_____ - Plastic Bag (Co-Pack)
_____ - Operator's Manual
_____ - Safety Manual
_____ - Warranty Card & Limited Warranty
_____ - Locking Tool, P/N 89751801131 (head locking tool)
_____ - Safety Glasses
_____ - Echo Power Blend X
TM
2-stroke oil sample
_____ - 12 pcs. 8 in. x .080 Pre-cut Nylon Line
_____ - Rapid Loader
TM
2-line Head
_____ - Shield Assembly
_____ - Line Head Mounting Hardware:
_____ - 3/8-24 Locknut
_____ - Small Washer
_____ - Large Washer
*____ - Locking Tool, P/N 89751801131 (wrench handle)
*____ - Wrench 17 x 14.5, P/N X602000031
co n t e n t s
The ECHO product you purchased has been partially assembled for your convenience. Due to packaging restrictions,
installation of the plastic debris shield, nylon line head, and positioning of the front handle may be necessary.
After opening the carton, check for damage. Immediately notify your retailer or ECHO Dealer of damaged or missing
parts. Use the contents list to check for missing parts.
* Some Echo units may be factory pre-assembled. The nylon line head, plastic debris shield, and mounting hardware
shown in the contents list are pre-assembled to the unit. Assembly tools are not supplied with these units. The front
handle may need to be re-positioned for comfortable operation.
as s e m b l y
Tools Required: Locking Tools (2), Wrench 17 x 14.5 (9/16 in.)
Parts Required: Rapid Loader
TM
Head, Large washer, Small washer,
3/8-24 Locknut, (2) Pre-cut Nylon Line 8 in. x .080
in.,
Plastic Shield Assembly
WARNING
Cut-off knife on debris shield has sharp edges. Avoid contact when
installing or removing line head.
