e x h a u s t s y s t e m

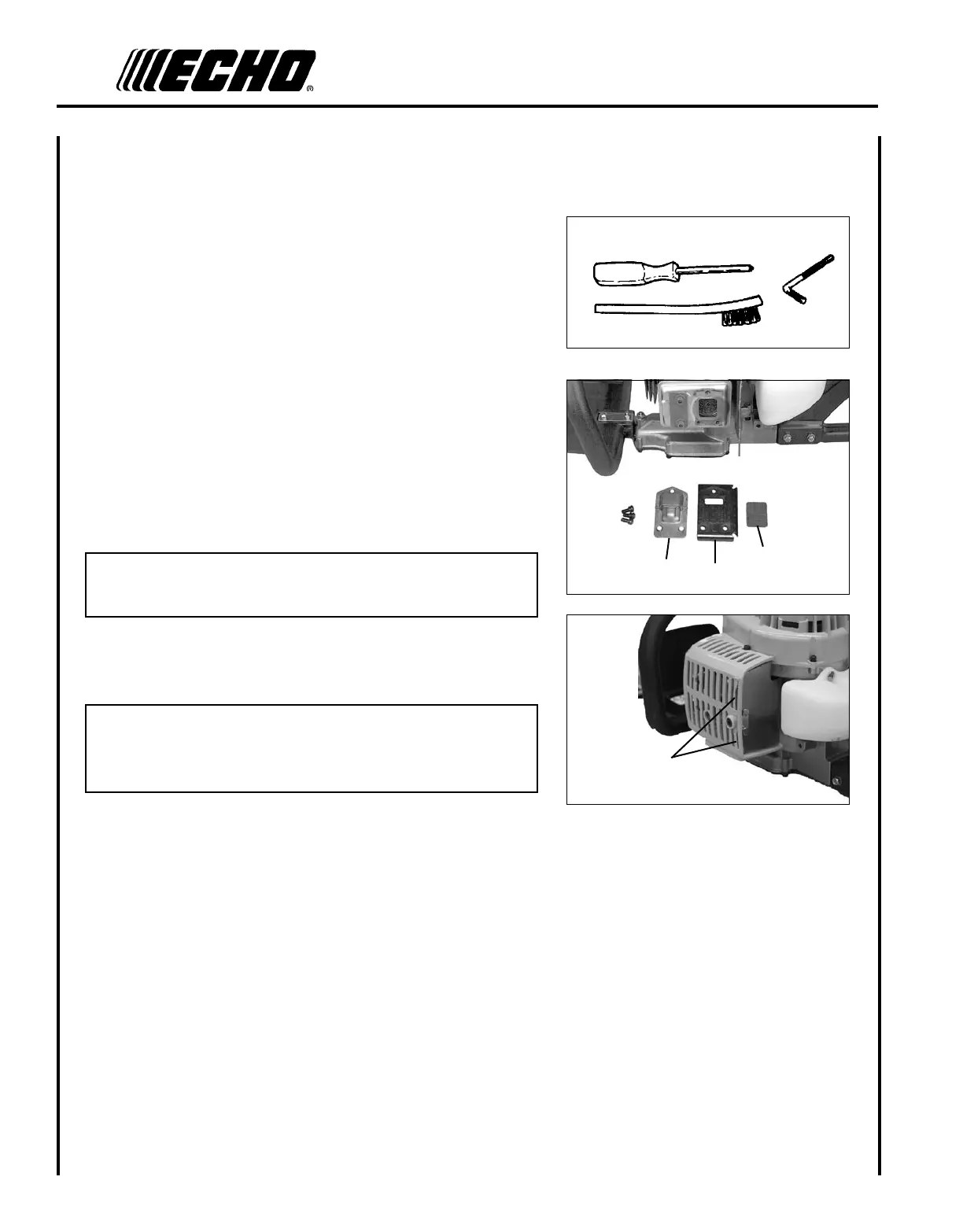

Spark Arrestor Screen
Level 2.
Tools required: 3 mm Hex wrench, Cross Head Screwdriver, Soft
metal brush
Parts required: Screen, Gasket
1. Remove engine cover. See “Cleaning Cooling System” for step by
step instructions.
2. Place piston at Top Dead Center (TDC) to prevent carbon/dirt from
entering cylinder.
3. Remove exhaust guide (A), gasket (B), and screen (C) from mufer
body.
4. Clean carbon deposits from mufer components.
NOTE
When cleaning carbon deposits, be careful not to damage the cata-
lytic element inside mufer.
5. Replace screen if it is cracked, plugged or has holes burned through.
6. Assemble components in reverse order.
NOTE
When installing the cylinder cover, be certain the mufer gasket
tabs (D) are locked into the mufer grill slots and the stop switch
lead is seated in the rubber grommet.
D
A
B
C
