HC-152 MAINTENANCE
X7532249501 23
© 4/2013 ECHO Inc.

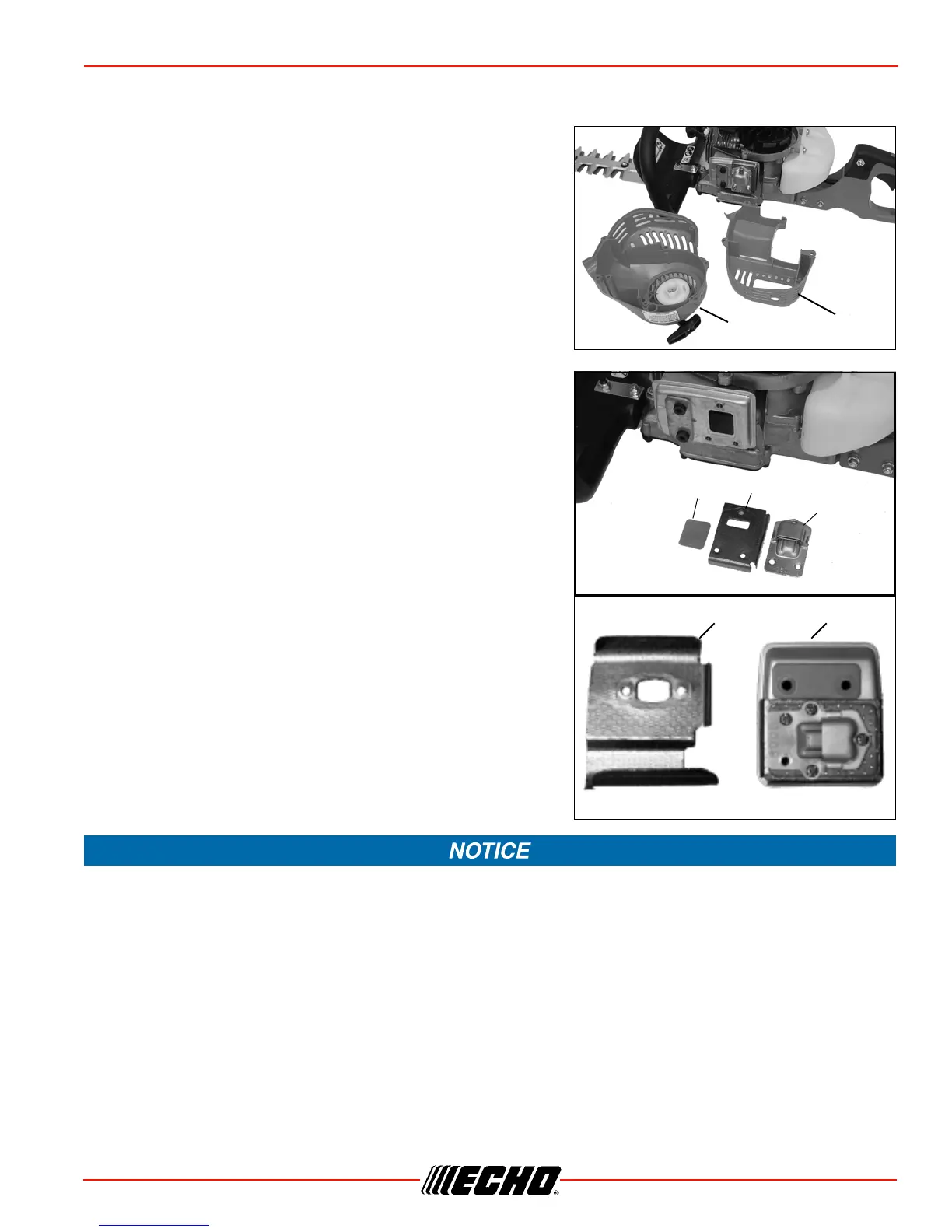

Exhaust System
Spark Arrestor Screen
Level 2.
1. Remove spark plug lead.
2. Remove engine cover (A) and muffler cover (B).
3. Place piston at Top Dead Center (TDC) to prevent
carbon/dirt from entering cylinder.
4. Remove exhaust guide (C), gasket (D), and screen (E) from
muffler body.
5. Clean carbon deposits from muffler components.
Note: When cleaning carbon deposits, be careful not to
damage the catalytic element inside muffler.
6. Replace screen if it is cracked, plugged, or has holes
burned through.
7. Assemble components in reverse order.
Exhaust Port Cleaning
Level 2.
1. Remove spark plug lead from spark plug, and remove
engine cover.
2. Place piston at top dead center. Remove muffler (F) and
heat shield (G).
3. Use a wood or plastic scraping tool to clean deposits from
cylinder exhaust port.
Never use a metal tool to scrape carbon from the exhaust port. Do not scratch the cylinder or piston when
cleaning the exhaust port. Do not allow carbon particles to enter the cylinder.
Parts Required: Spark Arrestor Screen, Gasket
Parts Required: As needed: Heat Shield
