PAS-225/SB/VP/VPB ASSEMBLY
X7732274006 19
© 09/21 ECHO Incorporated

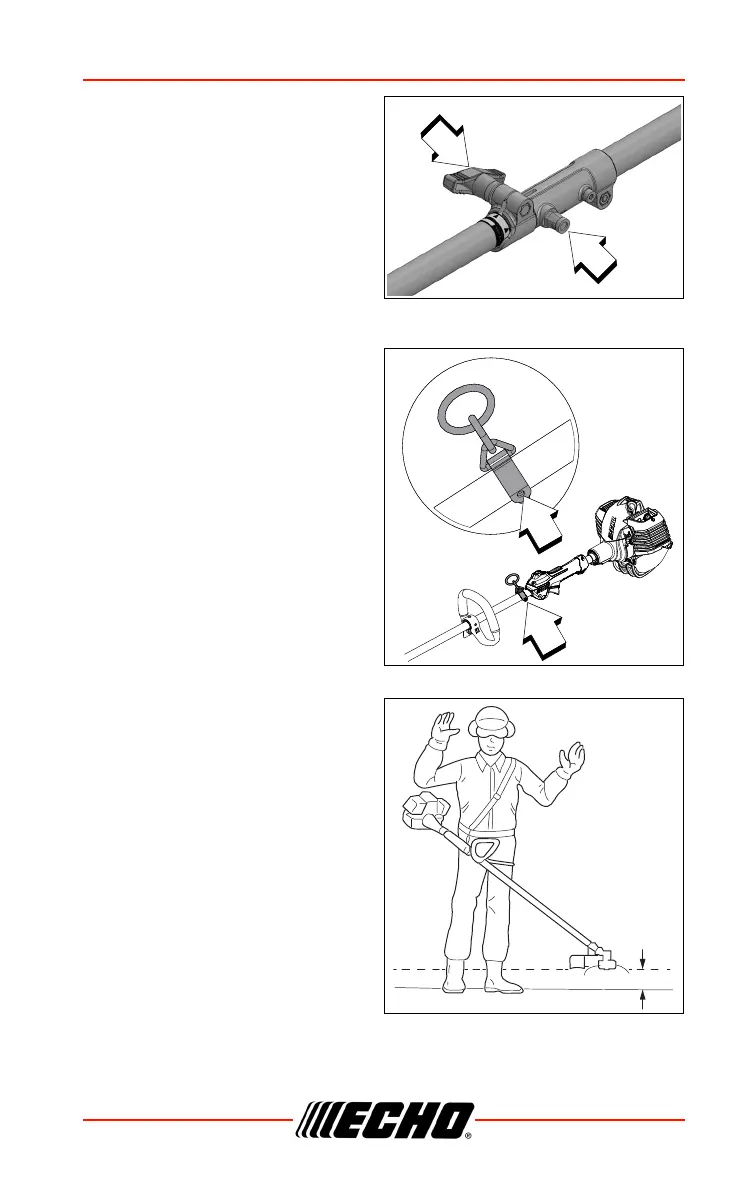

5. Rotate locater pin (A) one-
quarter turn clockwise to
engage lower shaft hole. Make
sure locater pin is fully engaged
by rotating the lower drive shaft.
Locater pin should snap flush in
coupler. Full engagement will
prevent further shaft rotation.
6. Secure lower shaft assembly to
coupler by tightening clamping
knob (D).
Balance and Adjust Unit
1. Loosen harness ring clamp
screw (A).
2. Put on harness and attach unit
to harness.
3. Slide harness clamp up or down
until unit balances with head or
blade 200 mm ± 100 mm
(8 in ± 4 in) from the ground.
4. Tighten harness clamp screw.
5. Loosen handle clamp screw(s),
and position handle for
comfortable operation.
6. Tighten handle clamp screws
securely.
