PAS-225/SB/VP/VPB MAINTENANCE
X7732274006 47
© 09/21 ECHO Incorporated

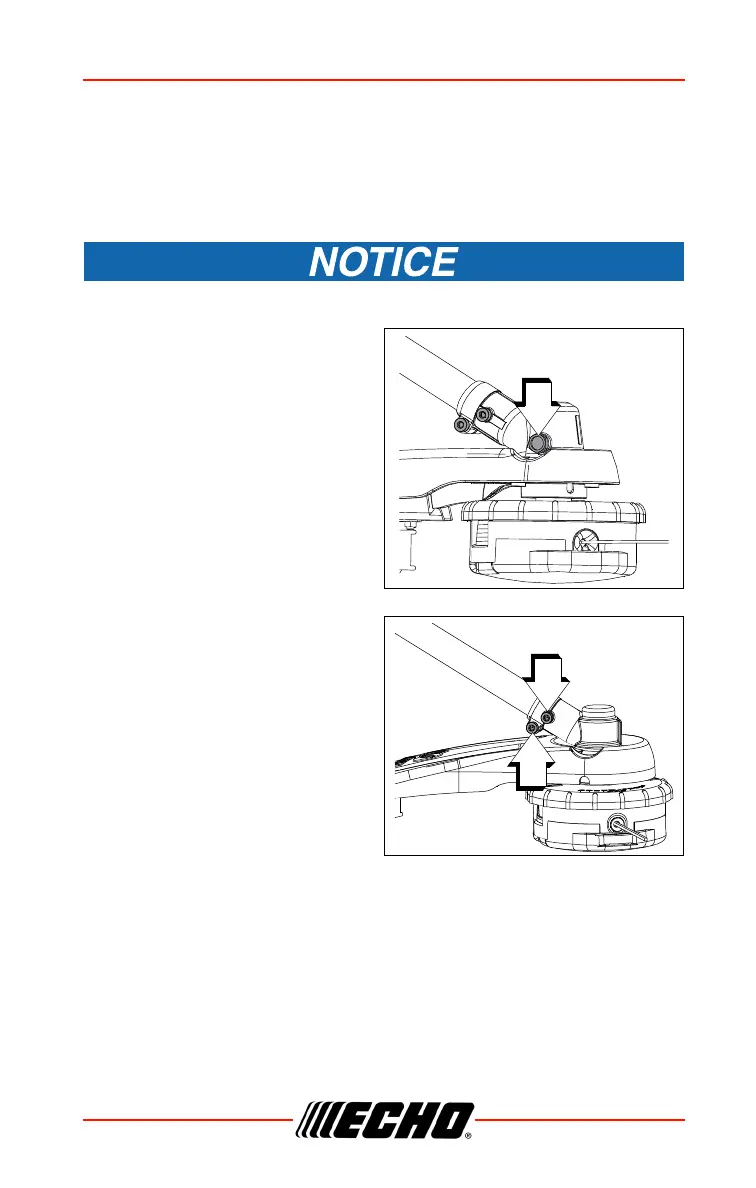

Lubrication
Level 1.
Parts Required: Lithium Based Grease.
Gear Case
Gear cases without grease plug (A) do not require lubrication.
1. Clean all loose debris from gear
case.
2. Remove plug (A) and check
level of grease.
3. Add grease if necessary. DO
NOT over-fill.
Drive Shaft (Lower)
1. Loosen screw (B) and remove
locating screw (C). Pull gear
case and shield from drive shaft
housing.
2. Pull flexible cable (D) from the
drive shaft housing, wipe clean
and re-coat with 15 ml (0.5 oz.)
of grease.
