PAS-225/SB/VP/VPB MAINTENANCE
X7732274006 53
© 09/21 ECHO Incorporated
2. Pull flexible cable from the drive
shaft housing, wipe clean and
re-coat with 15 ml (0.5 oz.) of
grease.
3. Slide the flexible cable back in
the drive housing. DO NOT get
dirt on the flex cable.
4. Install the gear housing and
shield assembly.
5. Tighten screws securely.

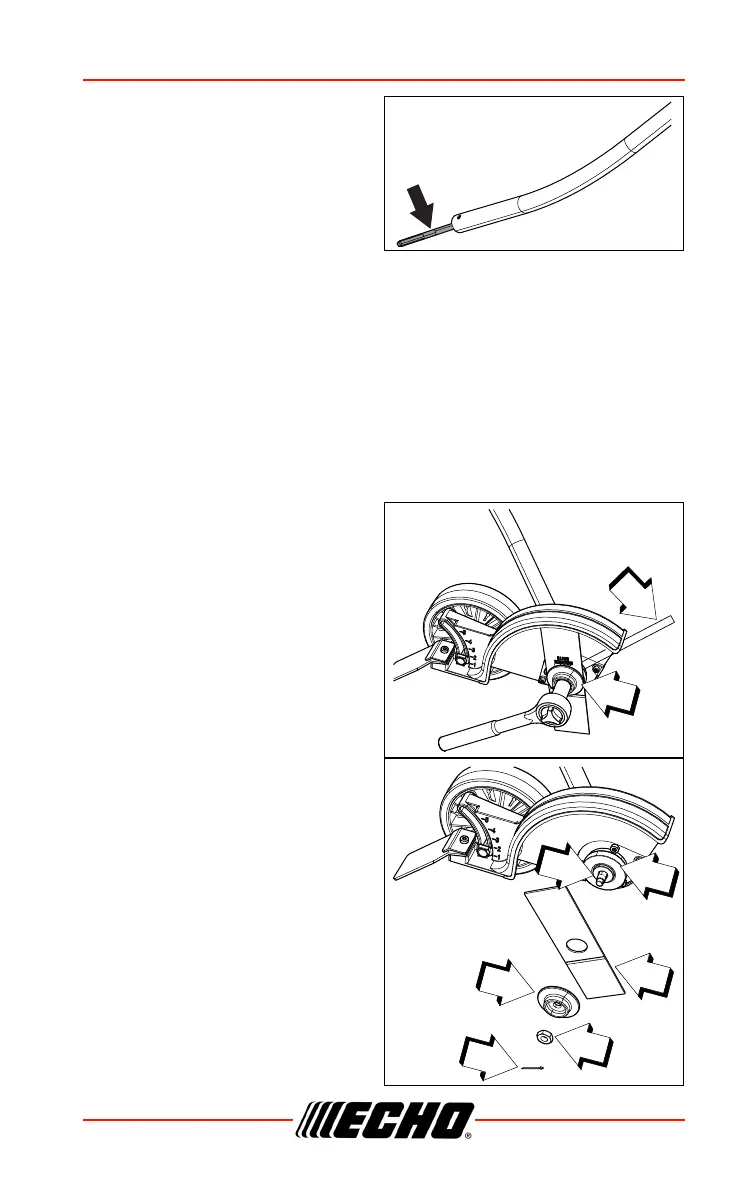

Edger Blade Replacement
Level 1.
Parts required: Blade, new split pin.
Note: Replace blade when it is bent, damaged, or worn shorter than
152.4 mm (6 in.).
1. Remove split pin (A).
2. Align hole in inner blade
adapter (B) with notch in gear
housing, and insert locking tool
(G) to prevent PTO shaft (C)
from rotating.
3. Remove L.H. blade nut (D) by
turning clockwise. Remove
outer blade adapter (E), and
blade (F).
4. Install and center blade (F) on
inner blade adapter (B).
5. Install outer adapter (E) and nut
(D). Tighten nut (D) firmly,
turning counterclockwise.
