18

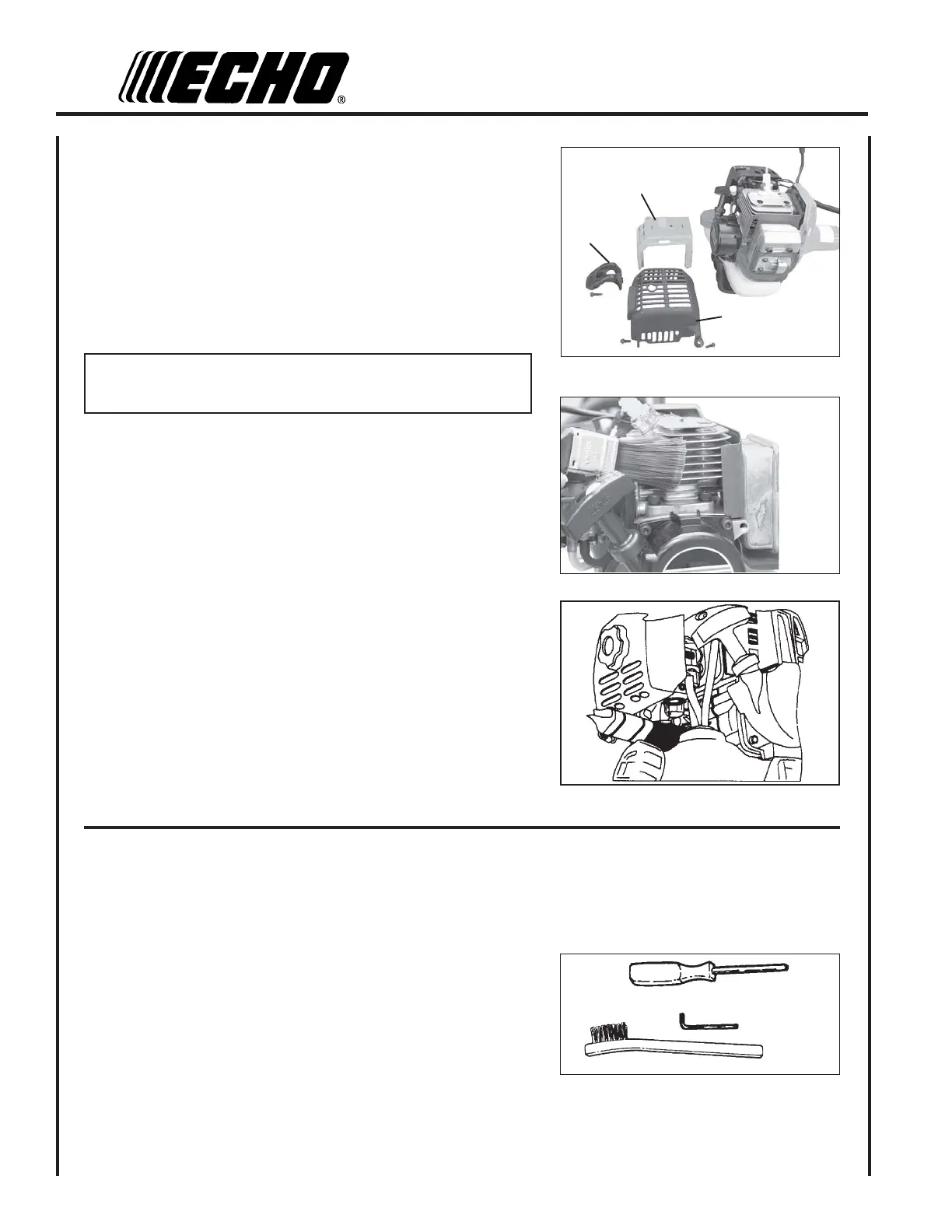

1. Remove spark plug lead.
2. Remove two (2) muffler cover screws and muffler cover (A).
3. Remove screw and arm rest (B).
4. Remove engine cover (C).
IMPORTANT
DO NOT use a metal scraper to remove dirt from the cylinder fins.
5. Use brush to remove dirt from the cylinder fins.
6. Remove grass and leaves from the grid between the recoil starter and
fuel tank.
7. Assemble components in reverse order.
EXHAUST SYSTEM
Spark Arrestor Screen
Level 2.
Tools required: Cross-Head Screwdriver, Soft metal brush, 4 mm Hex
Wrench.
Parts Required: Spark Arrestor Screen, Gasket
A
B
C
