Echo PB-403T User Manual

12
ASSEMBLY
PB-403H
WARNING
DANGER
Never perform maintenance or assembly procedures with engine
running or serious personal injury may result.

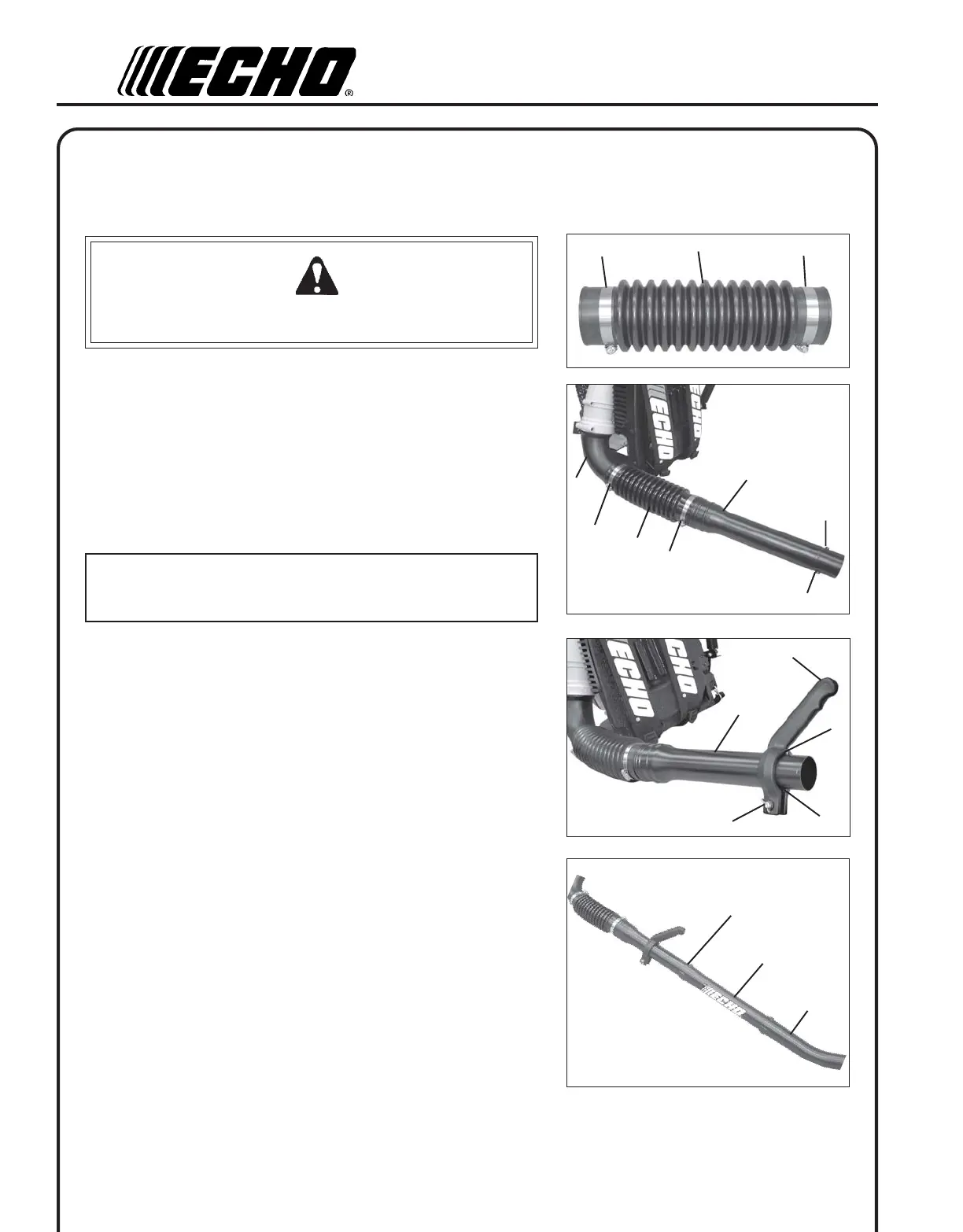

INSTALL BLOWER PIPES / STICK HANDLE
1. Assemble clamps (A) onto both ends of flexible pipe (B).
2. Assemble straight pipe with swivel (C) into flexible pipe (B).
3. Assemble flexible pipe (B) to elbow (D) on blower.
NOTE
A light lubricant may be used to ease assembly of flexible pipe to
blower elbow.
4. Tighten clamps (A).
5. Loosen wing nut (E) completely and expand stick handle clamp (F).
6. Align notches (G) in handle clamp with pipe pegs (H). Stick handle
should be angled away from operator.
7. Slide stick handle onto pipe with swivel (C)
8. Position stick handle for comfortable operation, and tighten wing
nut (E).
9. Assemble straight pipe (J) to pipe with swivel (C), turning straight
pipe sclockwise to lock in place.
10. Assemble curved pipe (K) to straight pipe (J) turning straight pipe
(K) clockwise to lock in place.
C
A
B
A
J
K
C
G
F
C
E
D
AA
B
H
H
G
