13
POWER BLOWER
OPERATOR'S MANUAL
PB-413T
WARNING
DANGER
Never perform maintenance or assembly procedures with engine
running or serious personal injury may result.

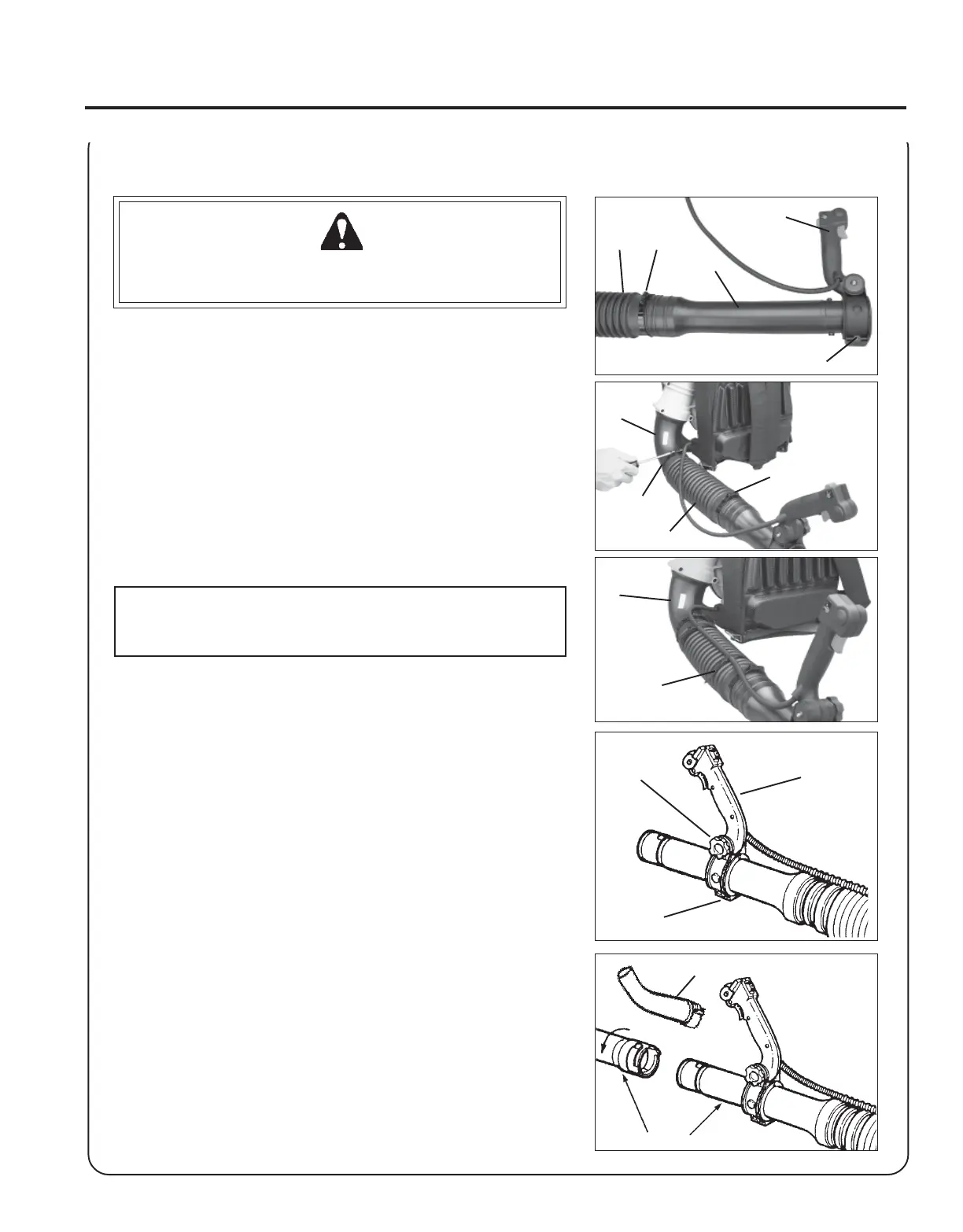

INSTALL BLOWER PIPES
1. Assemble clamps (A) onto both ends of flexible pipe (B).
2. Assemble straight pipe with swivel (C) into flexible pipe (B).
3. Position throttle linkage so cable passes between the elbow (G) and
frame and runs along the top of the flexible pipe. Remove clamp
screw (D) on handle (E). Spread clamp and install onto straight pipe
with swivel (C).
4. Assemble flexible pipe (B) to elbow (G) on blower.
NOTE
A light lubricant may be used to ease assembly of flexible pipe to
blower elbow.
5. Tighten clamps (A).
6. Install throttle wire ties in second groove (F) at each end of flexible
pipe.
7. Move handle (E) to desired position. Tighten knob (H) hand tight
and tighten clamp screw (D).
8. Assemble straight pipe (J) to pipe with swivel (C), turning straight
pipe clockwise to lock in place. Assemble curved pipe (K) to
straight pipe (J) the same way.
9. Make sure all clamps are tight.
B
A
G
A
B
G
F
C
D
A
E
J
C
K
H
D
E
