12
ASSEMBLY
WARNING DANGER
Never perform maintenance or assembly procedures with engine
running or serious personal injury may result.

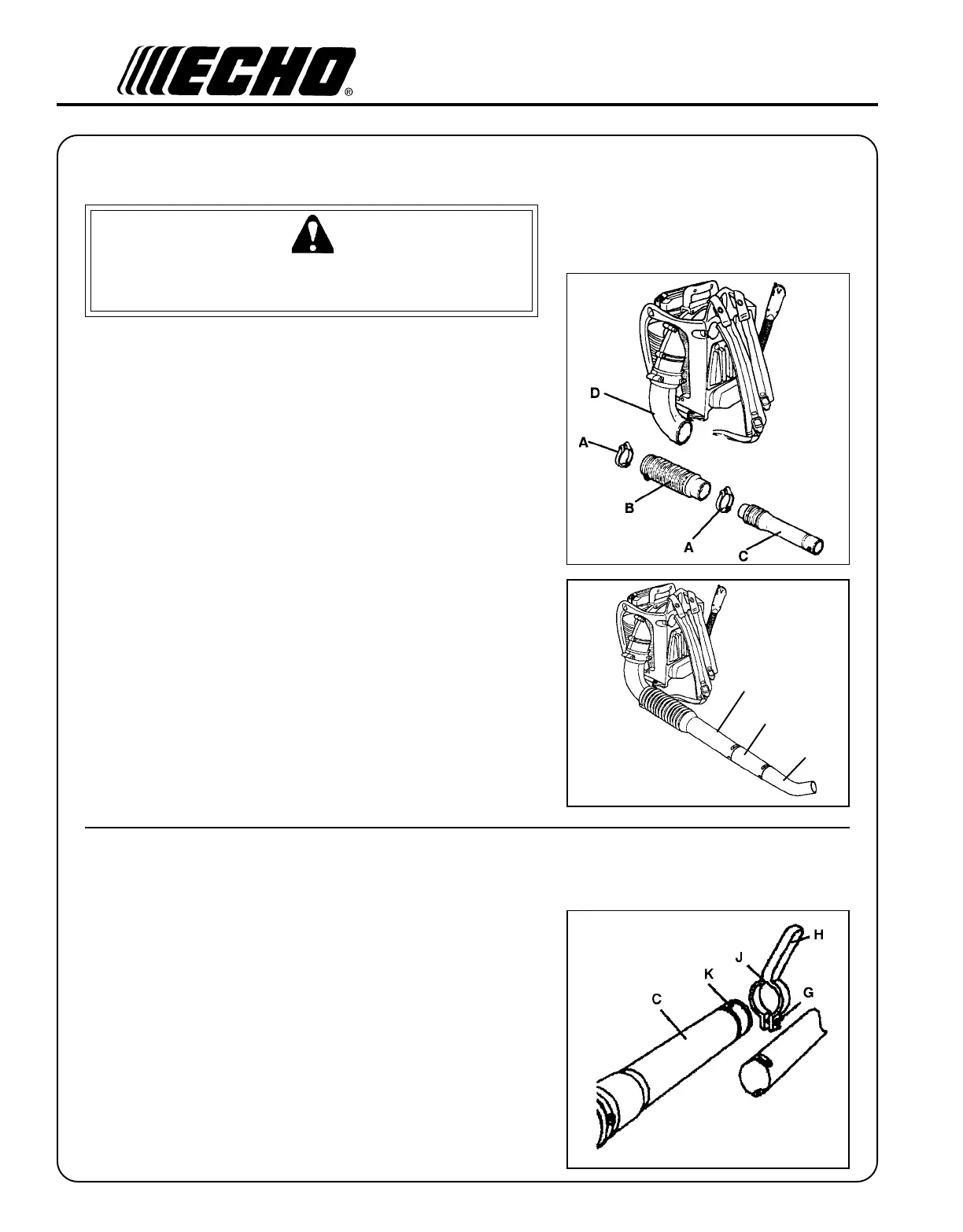

INSTALL BLOWER PIPES
1. Assemble clamp (A) onto both ends of flexible pipe (B).
2. Assemble straight pipe with swivel (C) into flexible pipe (B) and
tighten clamp (A).
3. Assemble flexible pipe (B) to elbow (D) on blower and tighten
clamp (A).
4. Assemble straight pipe (E) to pipe with swivel (C), turning straight
pipe clockwise to lock in place.
5. Assemble curved pipe (F) to straight pipe (E) turning curved pipe
clockwise to lock in place.
INSTALL STICK HANDLE
E
F
C
1. Remove blower pipe from swivel tube (C).
2. Loosen wing nut (G) completely and expand open stick handle
clamp (H).
3. Align notches (J) in handle clamp with pipe pegs (K). Handle
should be angled away from operator.
4. Slide handle onto swivel tube (C).
5. Position handle for comfortable operation and tighten wing nut
(G).
6. Install blower pipe to swivel tube.
