PB-580H/T ASSEMBLY
X7505200705 21
© 12/2017 ECHO Inc.
ENGLISH

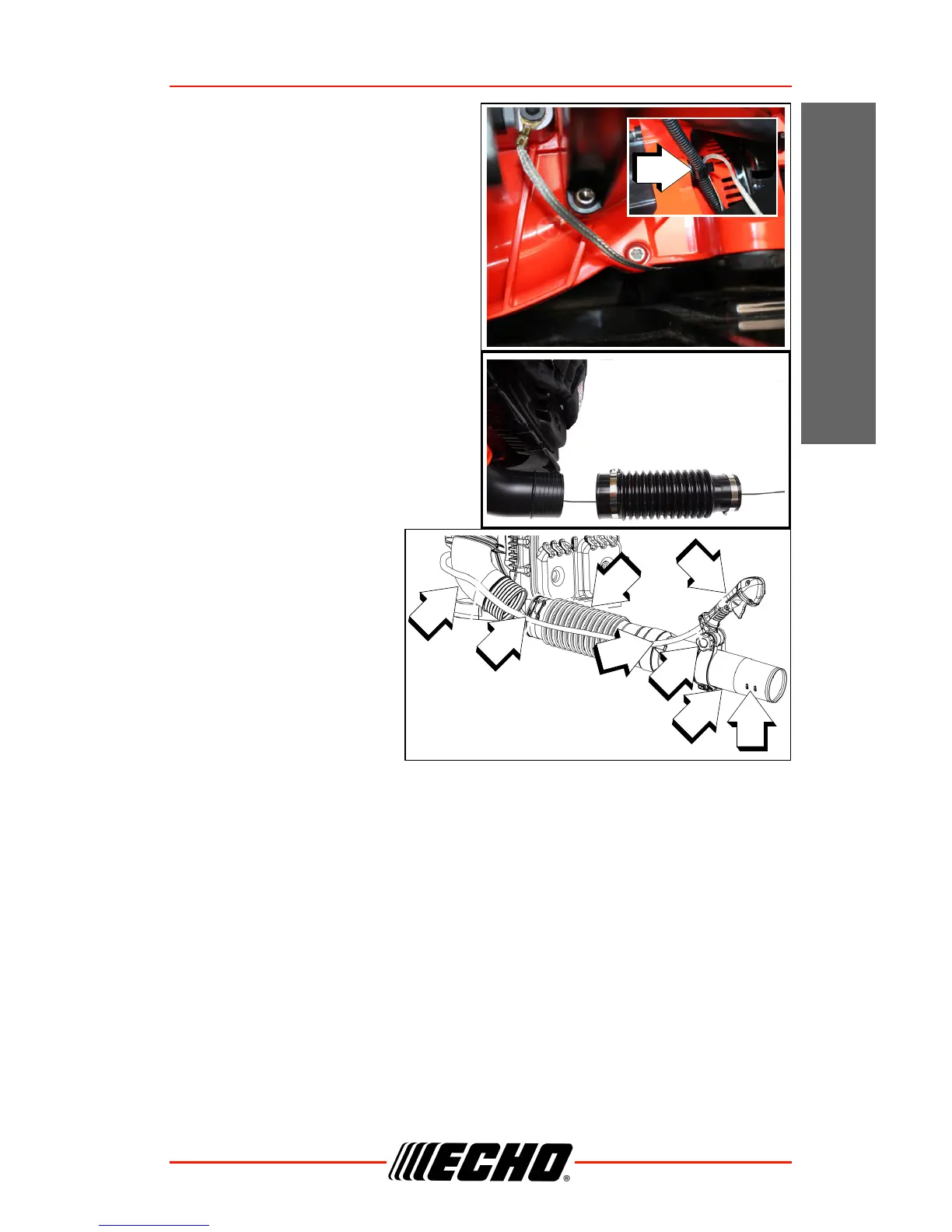

2. Route anti-static wire below fan
housing and clip wire into
throttle cable retaining clip (X).
Position wire outside blower
elbow.
3. Insert anti-static wire through
flex tube. Leave enough slack
in anti-static wire to allow for full
rotation of elbow.
Note: A light lubricant
may be used to
ease assembly of
flexible pipe to
blower elbow.
4. Assemble flexible pipe
to elbow (D) on
blower. Position clamp
with cable guide loop
(G) on outside of
flexible pipe and
tighten clamp.
Note: Hang handle freely from blower to assure throttle cable is not
twisted before installing handle (E).
5. Position throttle cable along the outside of elbow. Loosen knob (H) on
handle (E). Align notches in handle with tabs (F) and install onto swivel
pipe (C) past long ridges in pipe.
6. Insert anti-static wire through swivel pipe (wire will hang freely in pipe).
7. Assemble swivel pipe into flexible pipe and tighten clamp (A).
X
D
G
B
H
A
C
F
E
