Echo PB-9010 H Quick Start Guide

© 08/2020 ECHO Incorporated X7151200200
Quick Start Guide / Guía de inicio rápido / Guide de démarrage rapide
PB-9010 H/T
6

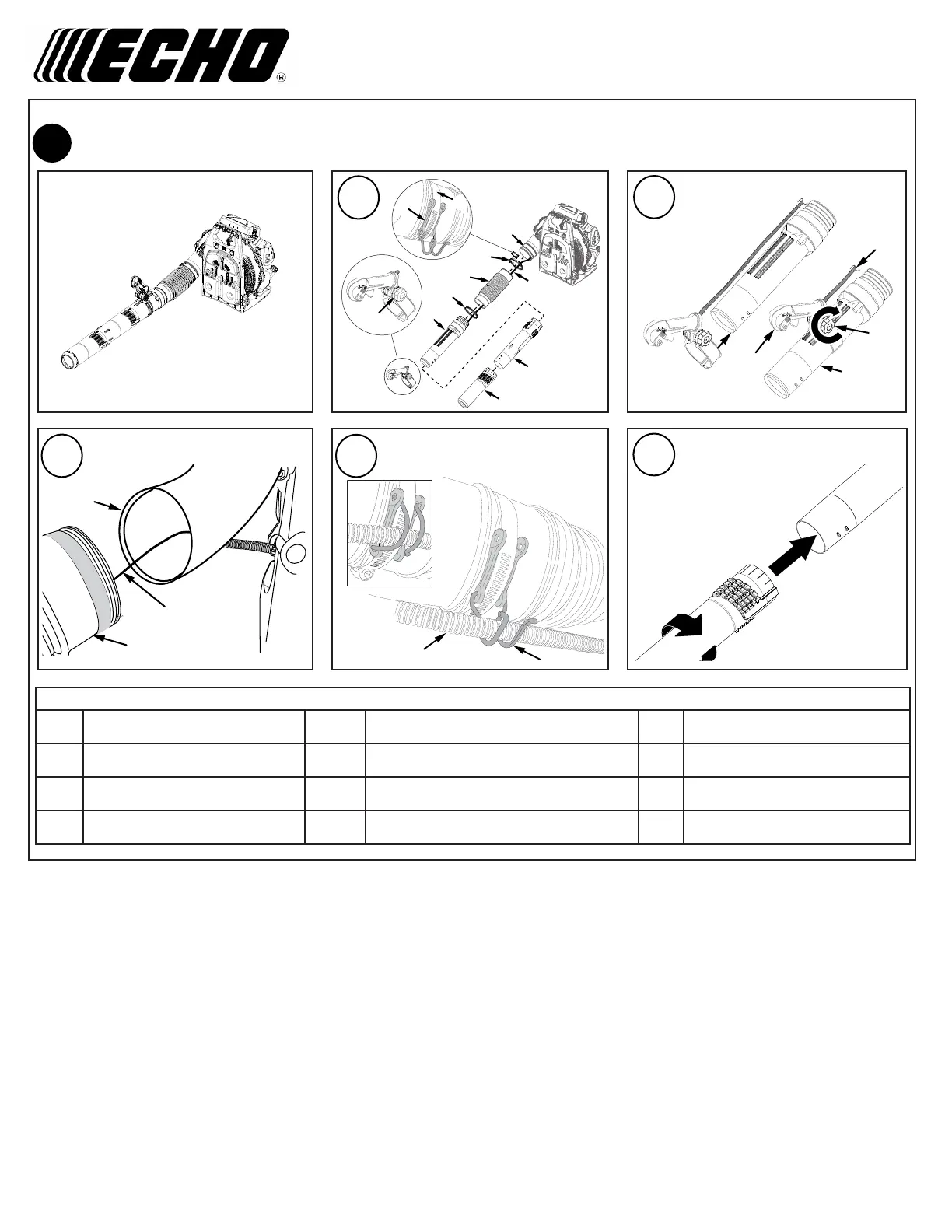

ASSEMBLY / MONTAJE / ASSEMBLAGE
1
T MODEL / T MODELO / T MODÈLE
1A
A
B
C
D
E
G
H
I
J
F
K
B
1B
K
F
L
H
1C
H
C
G
1D
A
L
1E
Figure 1 Legend / Figura 1 Leyenda / Figure 1 Légende
A
Cable Clip / Clip de cable / Clip de câble
B
Clamp / Abrazadera / Serrer
C
Flexible Blower Tube / Tubo de soplador
exible / Tube Sou󰀪eur Flexible
D
Clamp / Abrazadera / Serrer
E
Swivel Blower Tube / Tubo de soplador giratorio /
Tube de ventilateur pivotant
F
Throttle Control / Control del acelerador /
Commande d’accélérateur
G
Static Discharge Wire / Cable de descarga
estática / Fil de décharge statique
H
Elbow Blower Tube / Tubo soplador de codo / Tube
de sou󰀪ante coudé
I
Straight Blower Tube / Tubo de soplador
recto / Tube de ventilateur droit
J
Nozzle Blower Tube / Boquilla Tubo
Soplador / Tube de sou󰀪eur de buse
K
Screw Knob / Perilla de tornillo / Bouton à vis
L
Throttle Cable / Cable del acelerador /
Câble d’accélérateur
1A. Assemble “T” Model blower tubes:
(a) Assemble Cable Clip (A) onto Clamp (B).
(b) Install Clamp Assembly (A+B) onto upper end of Flexible Blower Tube
(C).
(c) Assemble Clamp (D) onto lower end of Flexible Blower Tube (C).
Note: Before installing Throttle Control (F), allow it to hang freely from
blower to make sure Throttle Cable (L) is not twisted.
1B. Assemble Throttle Control (F):
(a) Position Throttle Cable (L) along outside of Elbow Blower Tube (H).
(b) Loosen Screw Knob (K) and install Throttle Control (F) onto Swivel
Blower Tube (E) as shown. Tighten Screw Knob nger tight only.
1C. Assemble Static Discharge Wire (If Equipped):
(a) Unwrap and fully extend the Static Discharge Wire (G) to insert it
through Flexible Blower Tube (C) as shown in Step 1C.
Refer to Figure1A. again to Assemble “T” Model blower tubes:
Note: A light lubricant can be used to ease the assembly of Flexible Blower
Tube (C) to Elbow Blower Tube (H).
(b) Assemble Flexible Blower Tube (C) to Elbow Blower Tube (H). Position
Clamp Assembly (B) with Cable Clip (A) on outside of Flexible Blower
Tube (C) and tighten Clamp.
(c) Assemble Swivel Blower Tube (E) onto lower end of Flexible Blower
Tube (C) and tighten Clamp (D).
1D. Secure Throttle Cable:
(a) Secure Throttle Cable (L) into Cable Clip (A).
(b) Position Throttle Control (F) to desired position and tighten Screw Knob
(K) hand tight.

Echo PB-9010 H Specifications

General

Engine Displacement	79.9 cc
Air Volume	1110 CFM
Air Speed	220 MPH
Type	Backpack Blower
Air Volume at Nozzle	1110 CFM
Max Air Speed	220 MPH
Fuel Capacity	83.8 fl. oz.
Fuel Tank Capacity	83.8 fl. oz.
