ASSEMBLY PPT-2620
20 X7507820600
© 2/2017 ECHO Inc.

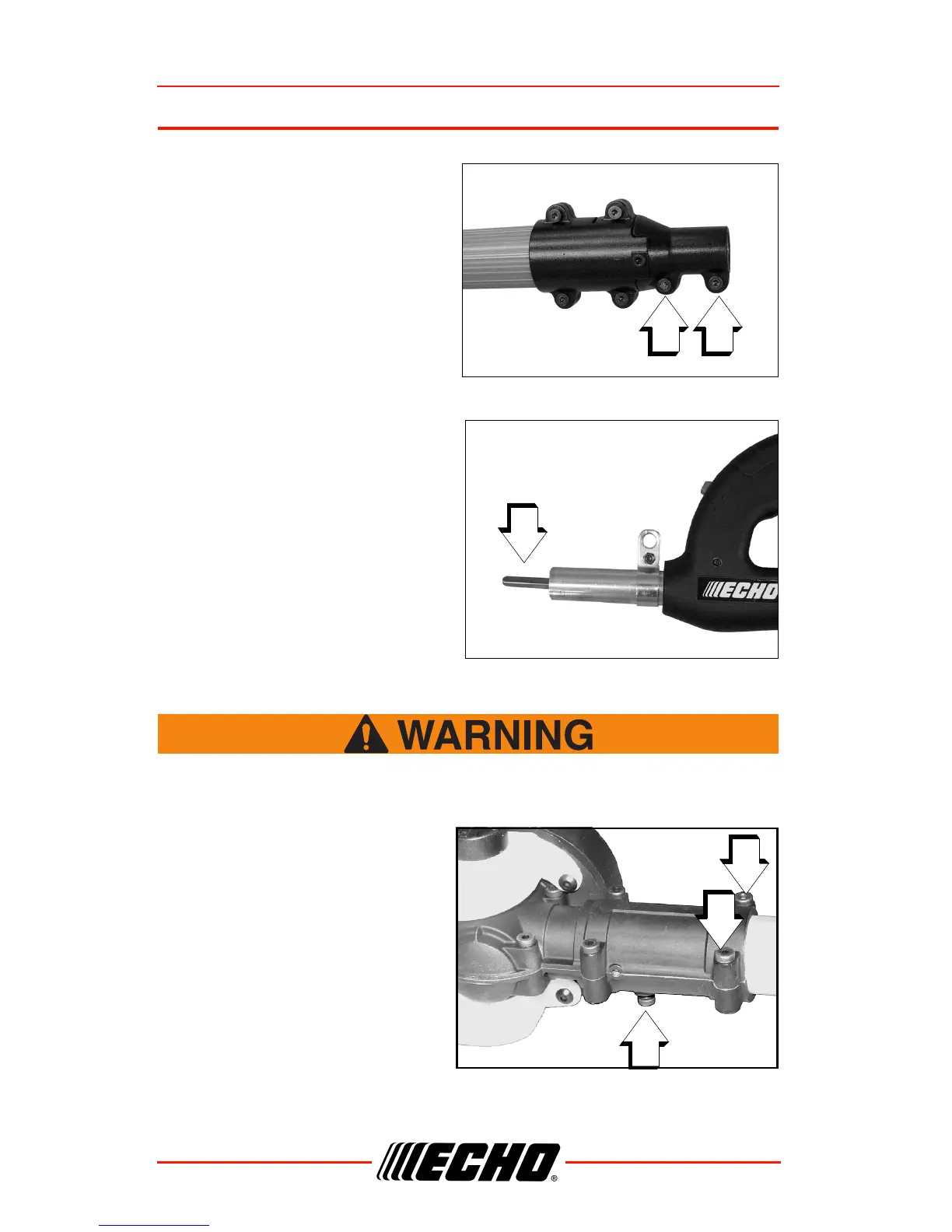

ASSEMBLY
Drive Shaft/Handle
Assembly
1. Remove protective caps from
handle assembly.
2. Loosen clamping bolts (A) on
drive shaft.
3. Pull flexible drive shaft coupler
(B) 2-3 inches out of handle assembly.
4. Align flexible drive shaft
coupler with drive shaft socket
and slide together until handle
assembly is fully seated into
drive shaft.
5. Tighten clamping bolts (A).
Cutting Attachment to
Drive Shaft Installation
Saw Chain is sharp! Always wear gloves when handling
assembly, otherwise serious personal injury may result
1. Loosen the two (2) screws (A)
and remove locator screw (B)
on cutting attachment.
To Next Page
