NYLON LINE HEAD INSTALLATION

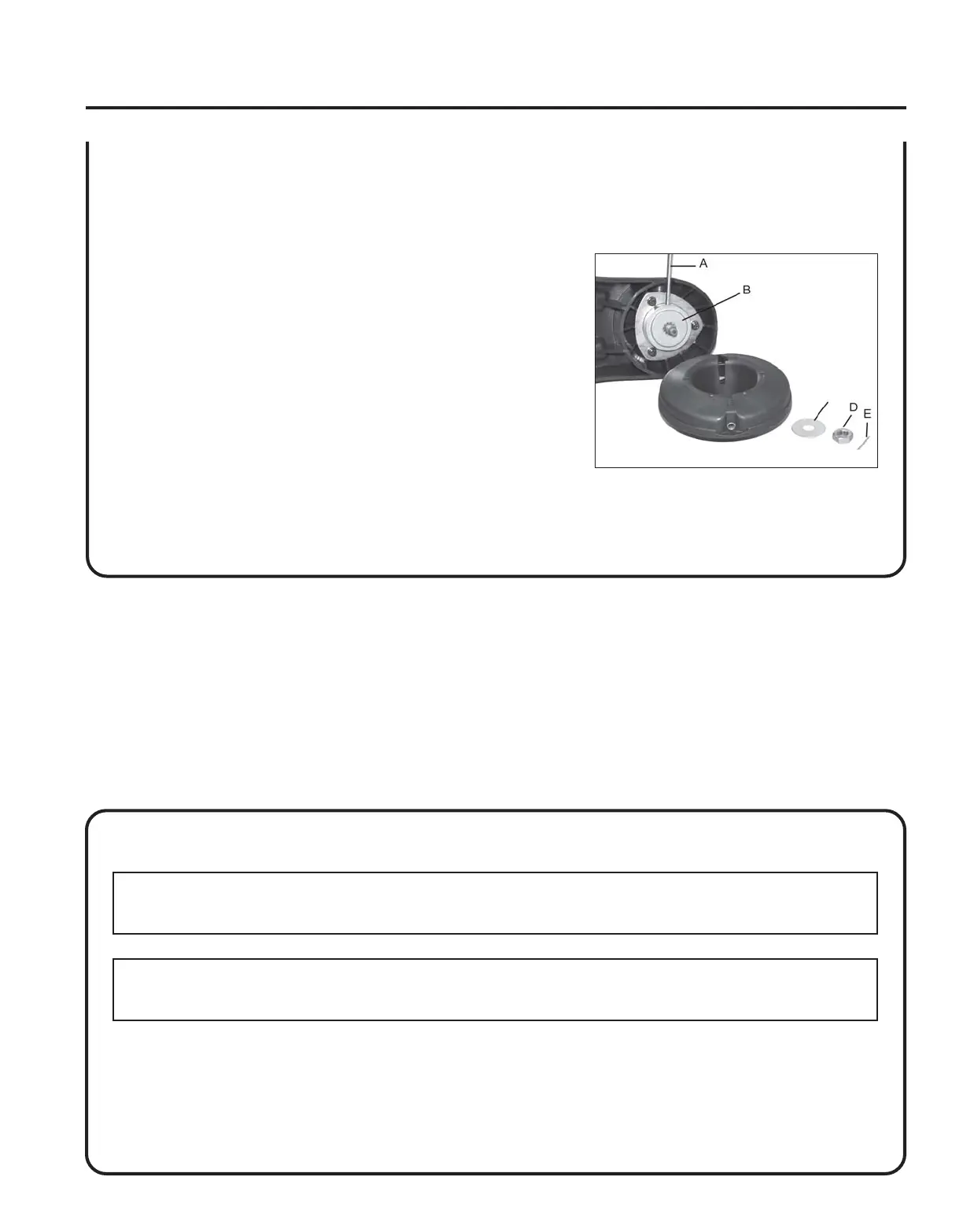

1. Align hole in upper plate with notch in edge of gear housing and
insert head locking tool (A). Remove plastic sleeve from PTO shaft.
2. Be sure upper plate (B) remains on PTO shaft.
3. Place line head onto PTO shaft, followed by large metal washer (C).
4. Thread L.H. nut (D) on PTO shaft. Tighten securely.
5. Install new split pin (E).
6. Remove locking tool (A).
OPERATION
NOTE
Refer to your Split Boom\Pro Attachment Series
TM
Operator's Manual for correct engine fueling, starting and stopping
instructions.
IMPORTANT
Never wear line shorter than 1-1/2 inch extension from head, otherwise overspeeding and engine damage may result.
