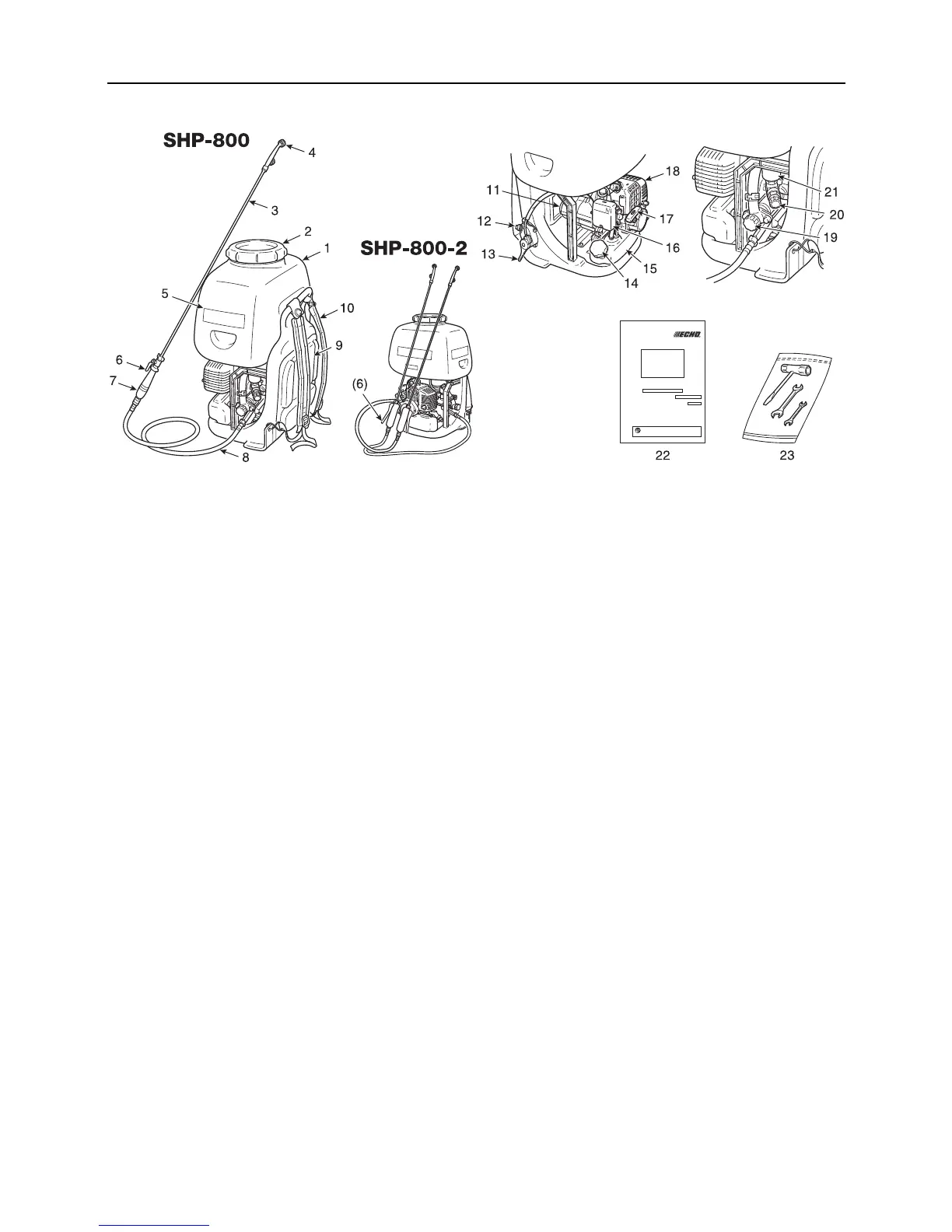

Description
1. Chemical (liquid) tank - Contains chemical.
2. Chemical tank cap - For closing the chemical tank.
3. Nozzle pipe
4. Nozzle
5. Safety decal - Part number 706040-05092.
If a decal cannot be read, a new one can be ordered from
your ECHO dealer.
6. Liquid valve (Grip valve) - Perform the operating and
closing operations for spraying.
7. Grip
8. Spray hose
9. Backpack cushion
10. Shoulder straps
11. Pump - Pump a chemical liquid.
12. Stop switch
13. Throttle lever - Activated operator's hand for controlling
the engine speed.
14. Fuel tank cap - For closing the fuel tank.
15. Fuel tank - Contains fuel and fuel filter.
16. Air cleaner cover - Covers air filter.
17. Starter handle - Pull handle to start the engine.
18. Silencer cover - Cover the silencer not to make operator
touch to hot surface of silencer.
19. Drein cap
20. Regulator knob
21. Air chamber
22. Operator's Manual - Included with unit.
Read before operation and keep for future reference to
learn proper, safe operating techniques.
23. Tools - 17 x 19 mm T-wrench (combination screwdriver
/ spark plug socket), 10 x 12 mm and 14 x 17 mm
spanners.
