9

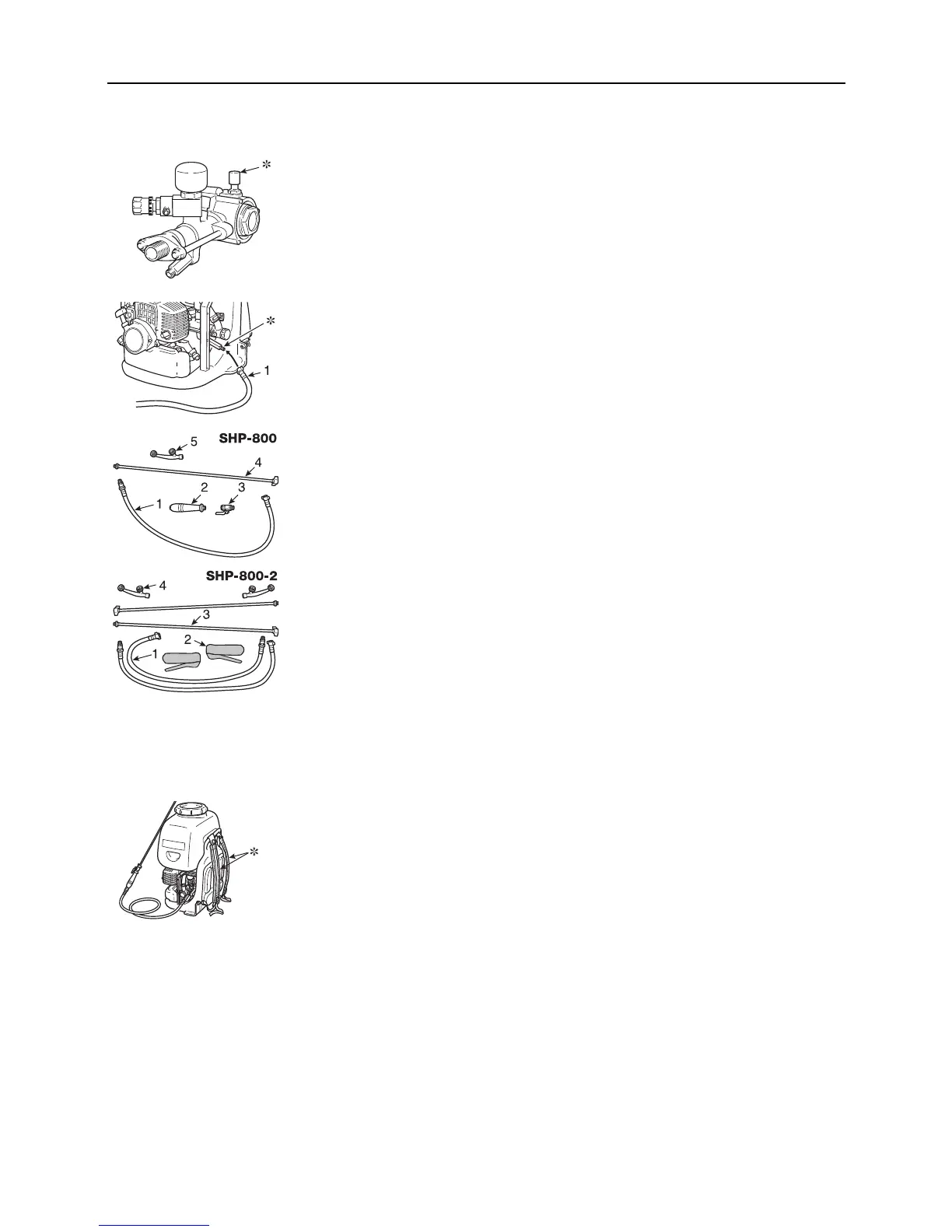

Assembling
Spray hose and nozzle
∗ Rubber cap
The rubber cap fitted on the top of pump crank case is for prevention of oil leakage during
transportation.
Remove the cap before operating pump.
∗ Nipple
1. Spray hose
1. Spray hose
2. Grip
3. Liquid valve
4. Nozzle pipe
5. Nozzle
Install spray hose, grip, liquid valve, nozzle pipe and nozzle to the machine.
1. Spray hose
2. Grip valve
3. Nozzle pipe
4. Nozzle
Install spray hose, grip valve, nozzle pipe and nozzle to the machine.
Ensure that all nuts, screws and bolts installed are properly tightened.
Check all connections to avoid chemical leak. (nozzle, nozzle pipe, spray hose, etc)
Assemble firmly ,otherwise leakage of chemicals can cause injury.
Please be enough careful.
Shoulder straps
∗ Shoulder straps
Shoulder straps are adjustable to fit any operator.
Adjust straps so that pads rest comfortably on the operator's shoulders.
