22

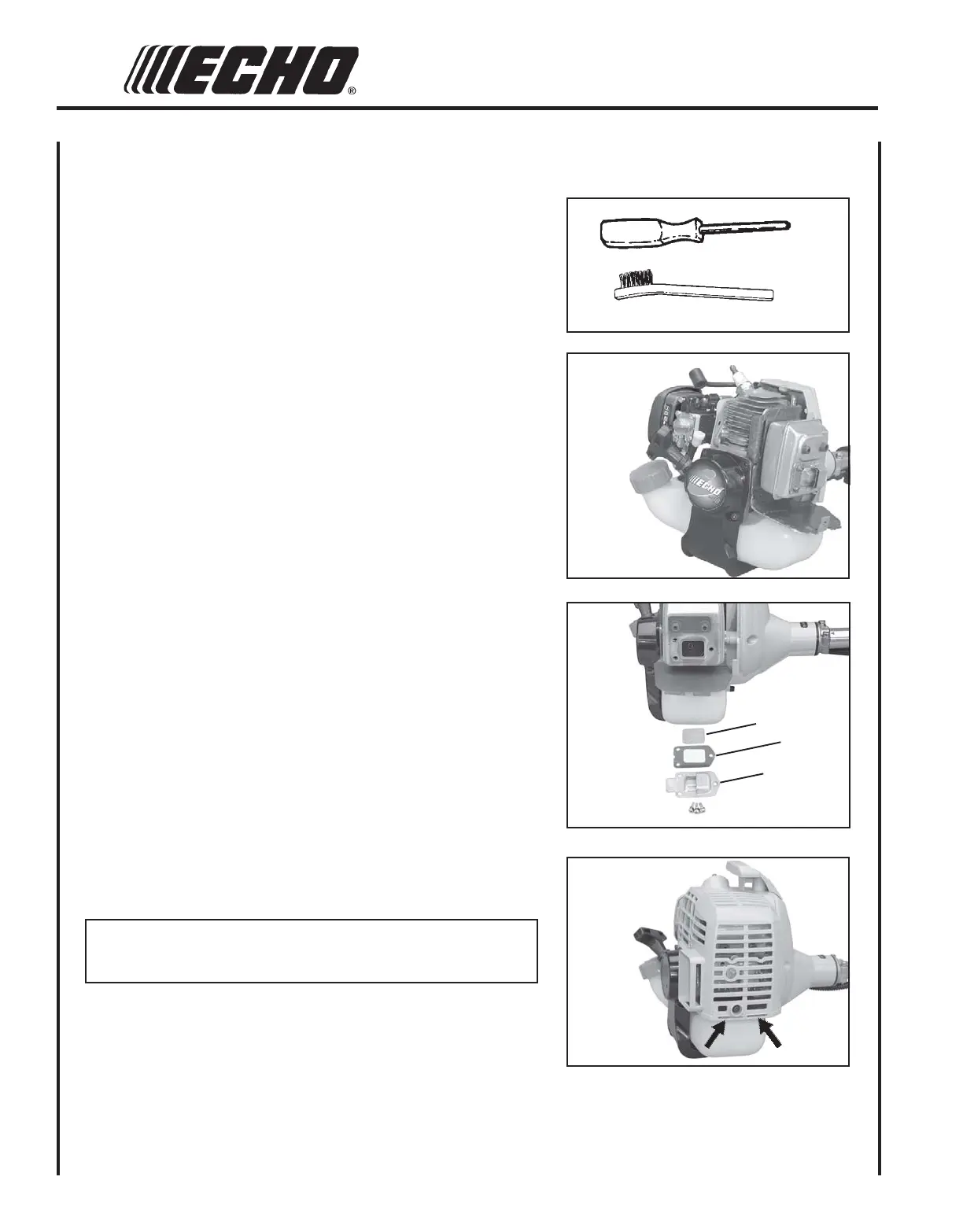

EXHAUST SYSTEM
Spark Arrestor Screen
Level 2.
Tools required: Cross-head screwdriver, soft metal brush.
Parts Required: Spark arrestor screen, Gasket
1. Remove engine cover. See “Cleaning Cooling System” page 20 for
instructions.
2. Remove spark arrestor screen cover (A), gasket (B), and screen (C)
from muffler body.
3. Clean carbon deposits from muffler components.
4. Replace screen if it is cracked, plugged or has holes burned through.
5. Reassemble in reverse order of removal. Make sure screen is
positioned properly before tightening screws.
NOTE
When installing the cover, be certain the metal deflector shield tabs
is in the engine cover slots.
A
B
C
