GRASS TRIMMER/BRUSH CUTTER
OPERATOR'S MANUAL
23

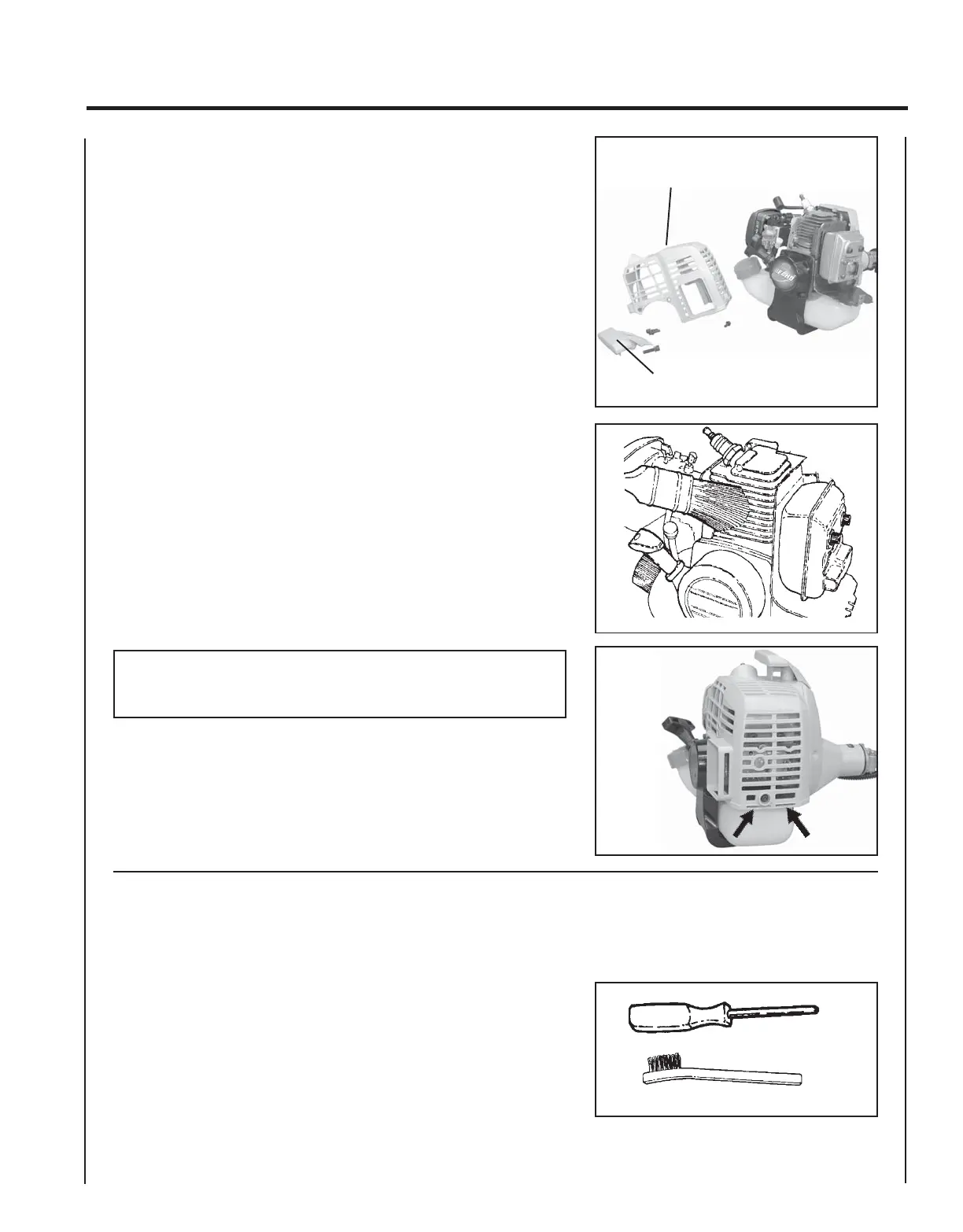

1. Disconnect spark plug lead from spark plug.
2. Remove (1) screw from top guard (A), and remove guard.
3. Remove (3) screws from engine cover (B), and remove cover.
4. Use the brush to remove dirt form cylinder fins.
5. Remove grass and leaves from the grid between the recoil starter and
fuel tank.
6. Assemble components in reverse order.
NOTE
When installing the cover, be certain the metal deflector shield tab
is in the engine cover slots.
EXHAUST SYSTEM
Spark Arrestor Screen
Level 2.
Tools required: Cross-head screwdriver, soft metal brush.
Parts Required: Screen P/N 14586240630,
Gasket P/N 14586642031
A
B
To Next Page
