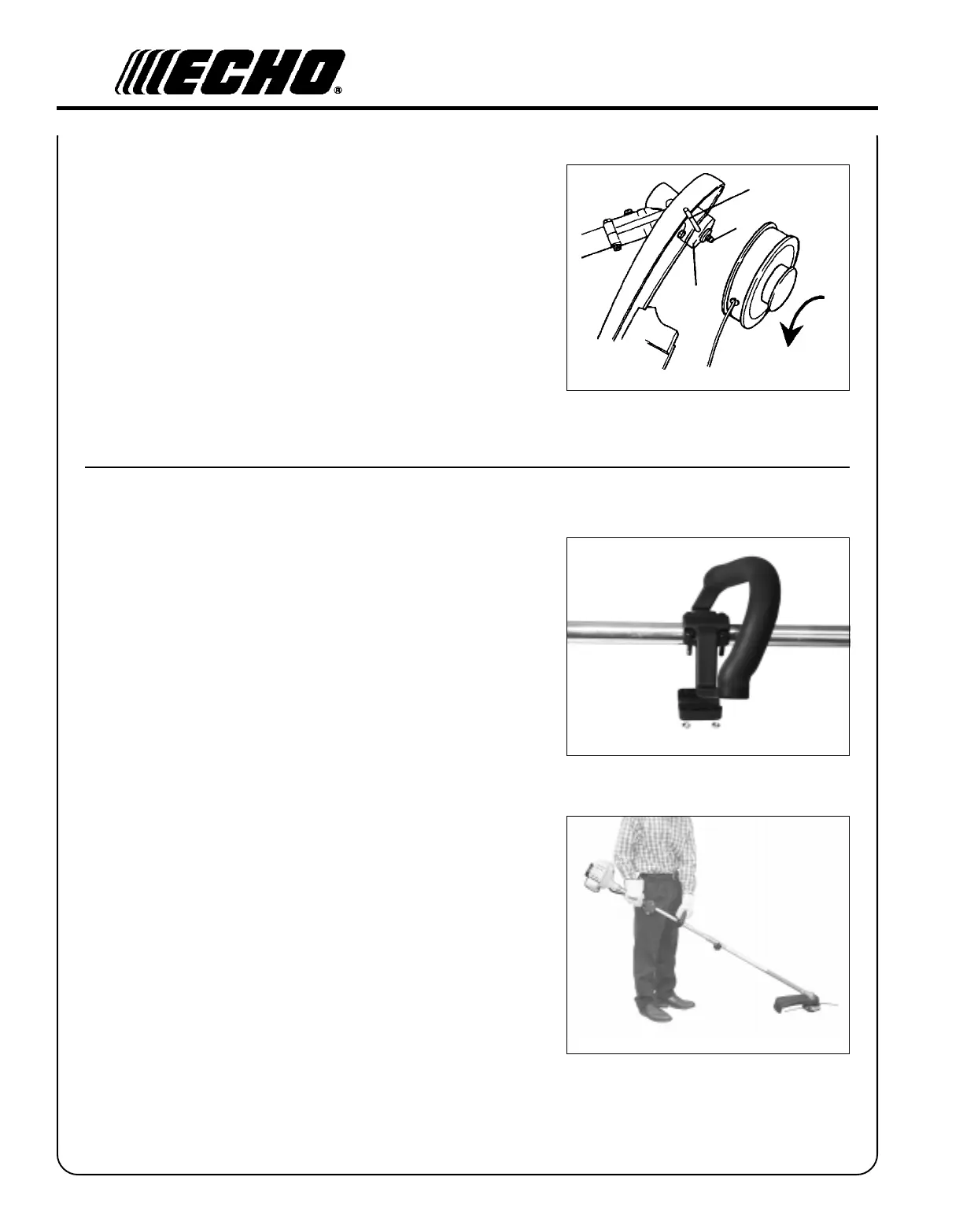

NYLON LINE HEAD INSTALLATION
Tools Required: Head Locking Tool
Parts Required: Nylon Line Head.
1. Align locking hole in upper plate (B) with notch in edge of gear
housing and insert head locking tool (A).
2. Remove plastic sleeve from P.T.O. shaft (C).
3. Be sure upper plate (B) remains on P.T.O. shaft.
4. Thread line head onto P.T.O. shaft by turning it counter clockwise
until head is tight against upper plate (B).
5. Remove locking tool (B).
FRONT HANDLE INSTALLATION
Tools Required: Screwdriver.
Parts Required: Front Handle Assembly
1. Assemble front handle on drive shaft, DO NOT tighten screws yet.
2. Position front handle for comfortable operation and secure screws.
