Echo SRM-225 - 12-09 - OPERATION WITH BLADES; Blade Setup Guide; Blade Type Specific Requirements

12

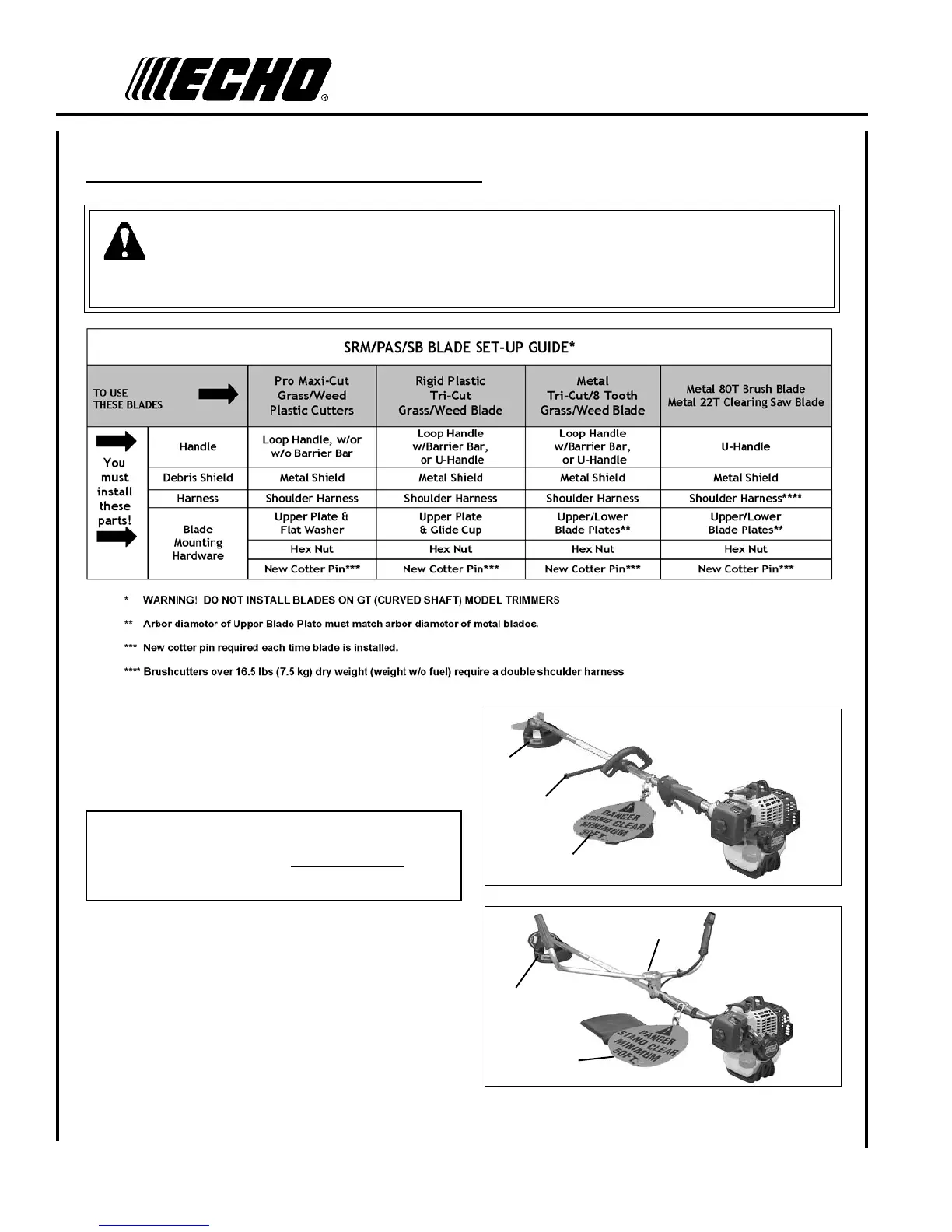

Grass/Weed Blades Require:
Install Blade Conversion Kit, Includes metal shield
(A), barrier bar (B), and shoulder harness (C).
B
A
C
NOTE
The Barrier Bar is used to restrict rearward movement
of the unit. The Barrier Bar is NOT A HANDLE and
should not be gripped when using or carrying the unit.
Brush/Clearing Blades Require:
Install U-Handle / Blade Conversion Kit, Includes
metal shield (A), shoulder harness with hip pad
(C), and U-Handles (D).
A
C
D
o p e r a t I o n w I t h b l a d e s
Preparing the Trimmer/Brush Cutter for Blade Use
WARNING
Blade use DEMANDS specic Brush Cutter conguration. Operation without specied shield, barrier bar or U-
handle, and harness can result in serious personal injury. Follow installation instructions included in optional kits.
