Gr a s s Tr i m m e r /Br u s h Cu T T e r
Op e r a T O r 's ma n u a l
9

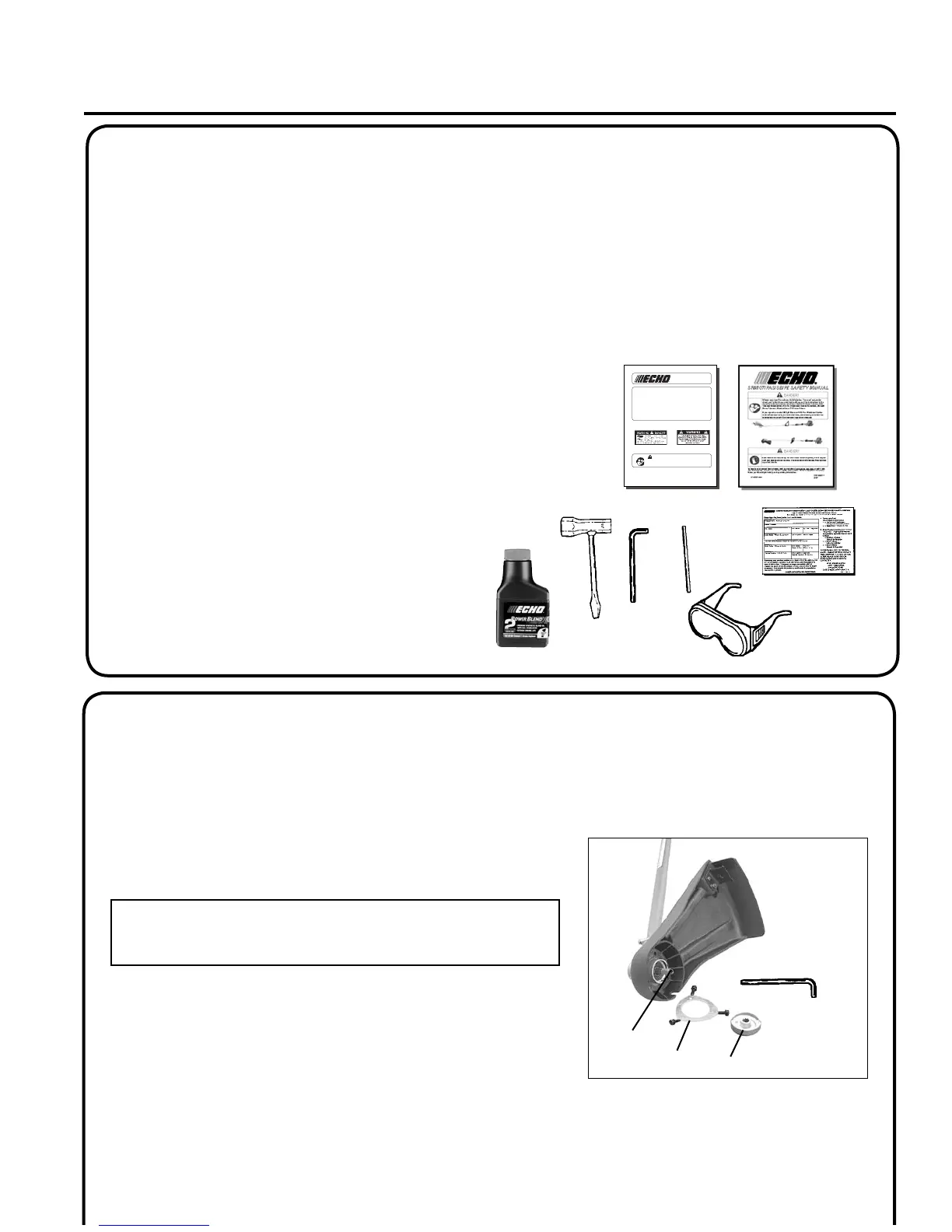

co n t e n t s
The ECHO product you purchased has been partially assembled for your convenience. Due to packaging restrictions,
installation of the plastic debris shield, nylon line head, and positioning of the front handle are necessary.
After opening the carton, check for damage. Immediately notify your retailer or ECHO Dealer of damaged or missing
parts. Use the contents list to check for missing parts.
* Some Echo units may be factory pre-assembled. The nylon line head, plastic debris shield, and mounting hardware
shown in the contents list are pre-assembled to the unit. Assembly tools are not supplied with these units. The front
handle may need to be re-positioned for comfortable operation.
_______1 - Power Head / Drive Shaft Assembly
______ - 1, Operator's Manual
______ - 1, Safety Manual
______ - 1, Warranty Registration Card
_______ - 1, Safety Glasses
_______ - 1, Echo Power BlendX
TM
2-stroke oil sample
* _____ - 1, Nylon Trimmer Head
* _____ - 1, T-Wrench
* _____ - 1, Torx T27 L-Wrench
* _____ - 1, locking tool
* _____ --1, Plastic shield
* _____ --1, shield plate
* _____ --3, 5mm x 16mm screws (shield mtg.)
as s e m b l y
p l a s t I c
s h I e l d I n s t a l l a t I o n
(for Nylon Line Operation)
Tools Required: Torx T27 L-Wrench
Parts Required: Plastic Shield, Shield Plate, three (3) 5mm x 16mm
screws.
NOTE
The plastic shield is for use with the Nylon Line Head only.
Install Metal Shield when using plastic or metal blades.
1. Remove plastic threaded shaft sleeve and adapter plate (C) from
PTO shaft (A).
2. Place the shield on the bottom of the bearing housing ange.
3. Place shield plate (B) on shield, align holes. Install three (3) screws
from bottom through plate and shield into gear case.
4. Assemble adapter plate (C) onto PTO shaft.
A
B
C
