SRM-230 MAINTENANCE
© 2/2014 ECHO Inc.
X7532098207 29

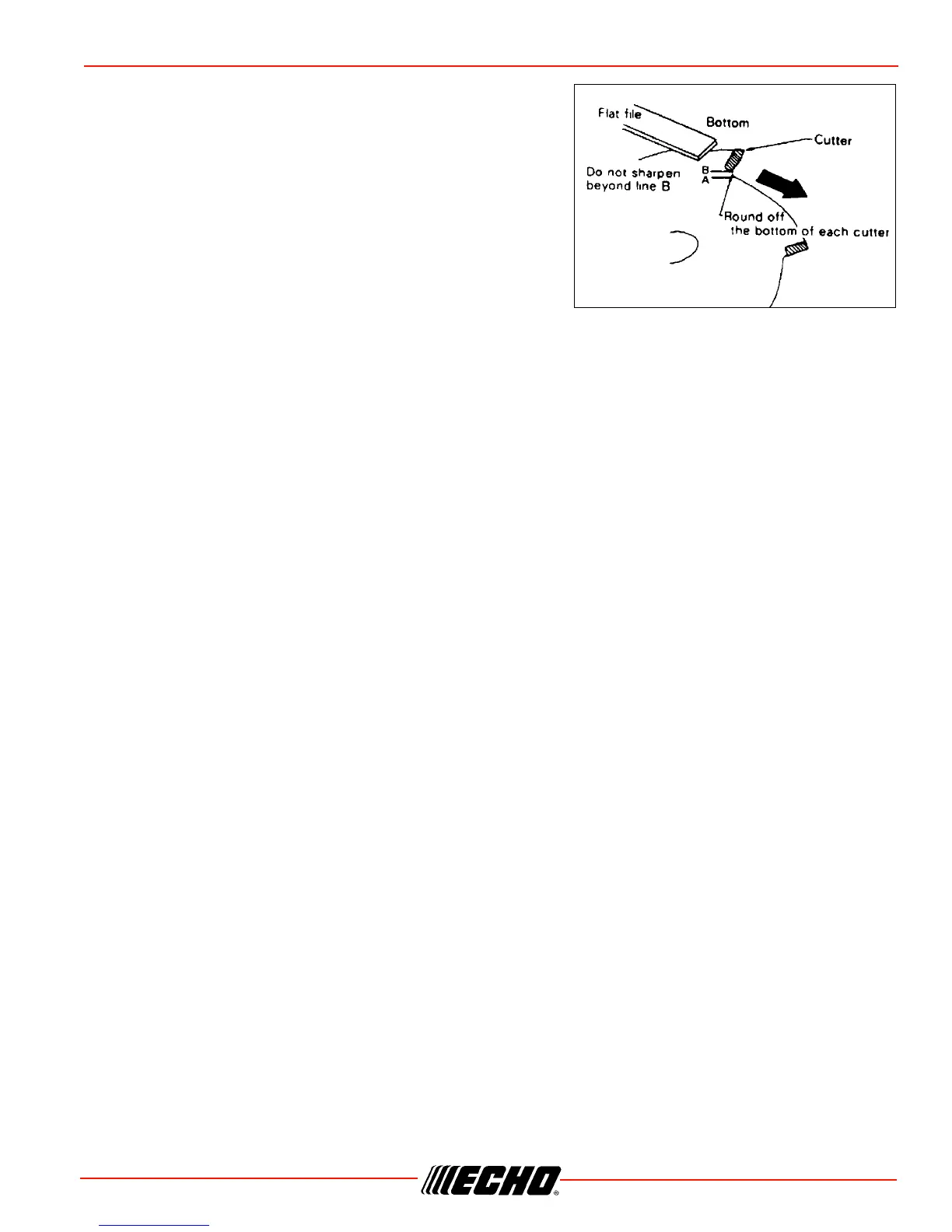

3. After sharpening teeth, check each tooth radius for evidence
of a square (sharp) corner. Use the round (rat tail) file to
renew the radius.
