16

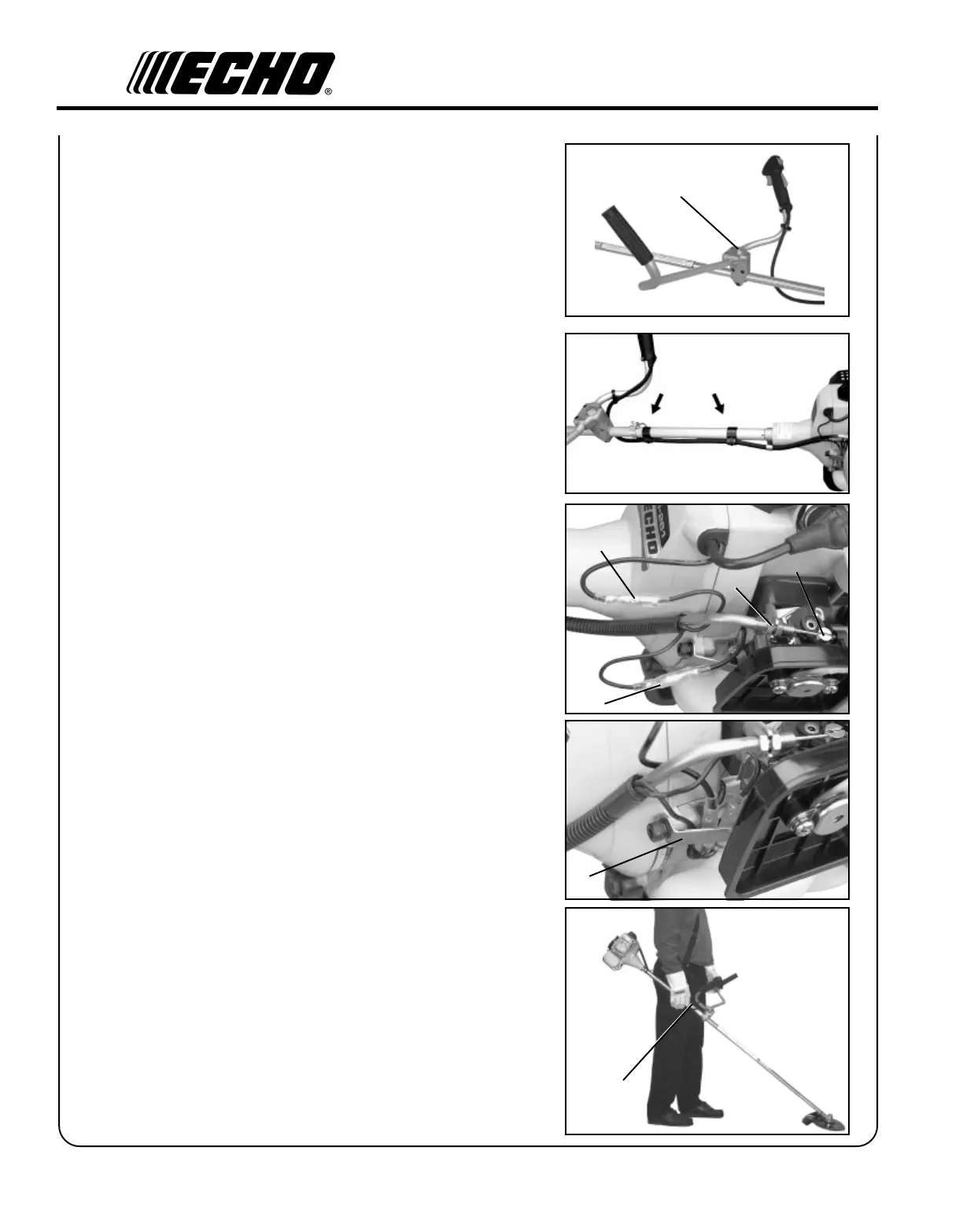

10. Install upper U-Handle and bracket on lower bracket and secure
with one (1) 8mm x 55mm bolt (K) and large circular washer.
11. Install power head and align gear box, power head and U-Handles.
Tighten all screws.
12. Route throttle linkage and ignition lead assembly behind U-Handle
bracket, and clip to drive shaft as shown.
13. Place throttle linkage in slot in bracket. One nut on each side of
bracket. Finger tighten both nuts (D).
14. Attach inner cable to swivel (C). Check throttle for freedom of
movement and that wide open throttle / low idle extremes are
adjusted properly. If adjustment cannot be achieved with adjusting
nuts, consult with your Echo Dealer for correct adjustment
procedure.
15. Connect ignition leads (A) and (B).
16. Secure ignition leads against engine housing with clip (L).
17. Install air filter and cover.
18. Balance unit.
a. Put on harness and attach unit to harness.
b. Slide harness clamp (M) up or down until unit balances with
cutting attachment approximately 2 - 3" from ground.
c. Tighten harness clamp screw.
K
M
A
B
C
D
L
