Echo SRM-2655SI User Manual

SERVICE INFORMATIONSRM-2655SI
5
5K223 5K224
5K225 5K016 5K042
5K182 5K222
5K188
0
5
10
1
2
3
4
5
6
7
8
9
10
11
5K1895K219 5K220

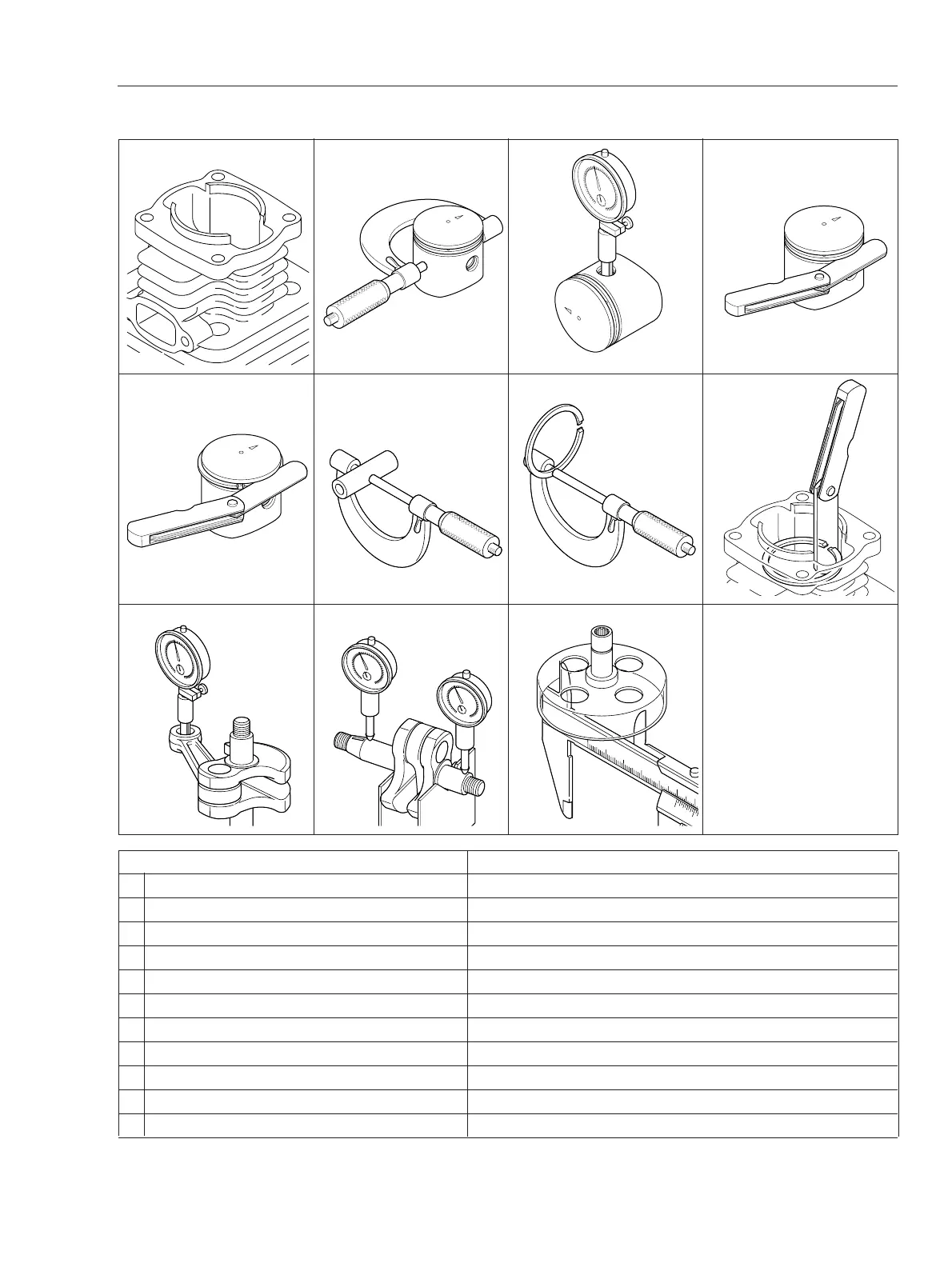

1-5 Service limits
ABCD
EFGH
KLM
Description mm (in)
A Cylinder bore When plating is worn and aluminium can be seen
B Piston outer diameter Min. 33.91 (1.335)
C Piston pin bore Max. 8.030 (0.3161)
D Piston ring groove Max. 1.6 (0.063)
E Piston ring side clearance Max. 0.1 (0.004)
F Piston pin outer diameter Min. 9.980 (0.3929)
G Piston ring width Min. 1.45 (0.057)
H Piston ring end gap Max. 0.5 (0.02)
K Con-rod small end bore Max. 11.025 (0.4341)
L Crankshaft runout Max. 0.05 (0.002)
M Clutch drum bore Max. 55.5 (2.19)
