GRASS TRIMMER/BRUSH CUTTER
OPERATOR'S MANUAL
25
5. Use the wooden stick or brush to remove dirt from the cylinder fins.
6. Assemble components in reverse order.
B
C
D
A

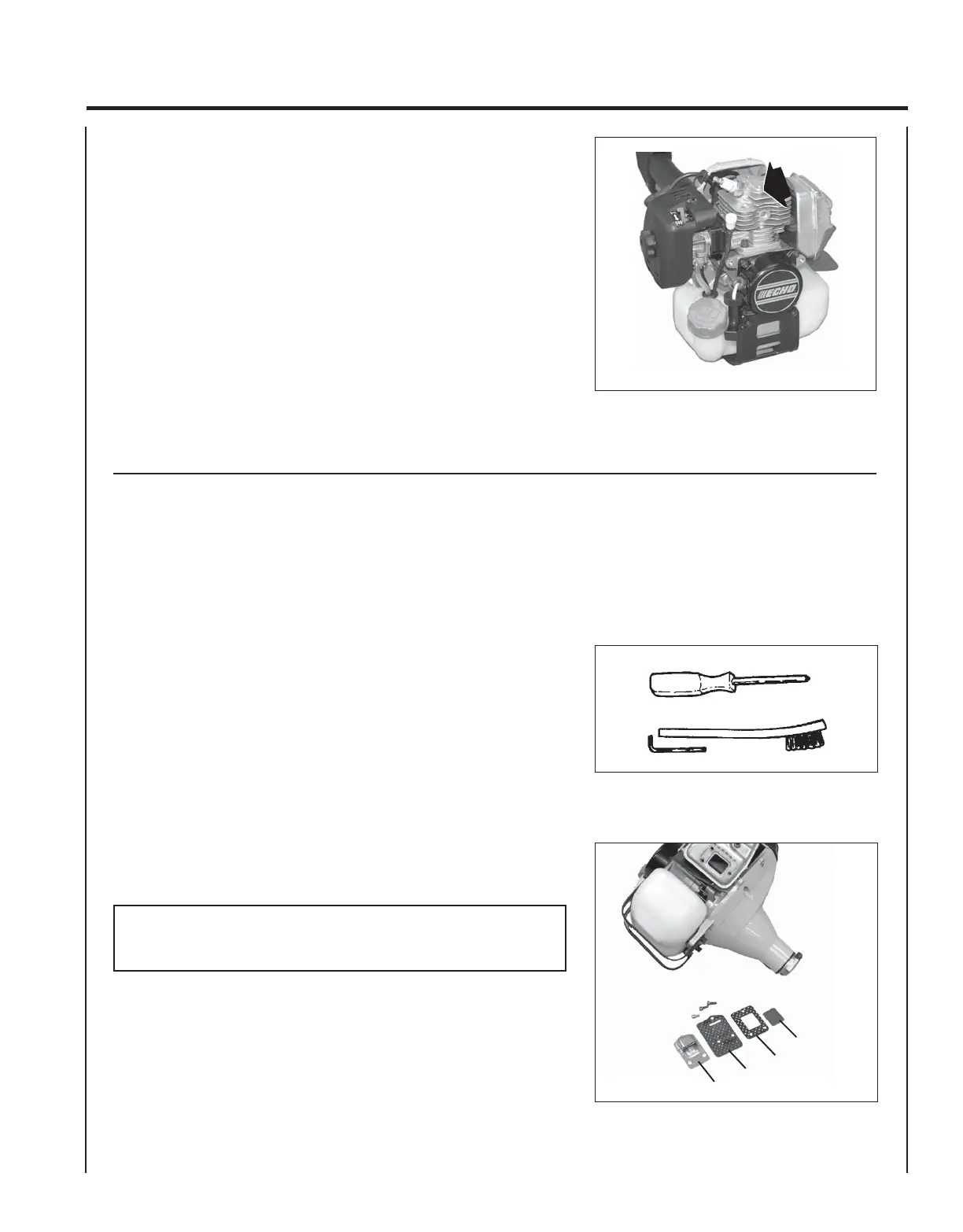

EXHAUST SYSTEM
Spark Arrestor Screen
Level 2.
Tools Required: Cross Head Screwdriver, Soft metal brush, 4 mm Hex
Wrench
Parts Required: Screen, Gaskets
1. Remove three (3) screws from muffler cover and remove.
2. Remove screen holder (A), gasket (B, C) and screen (D) from
muffler body.
3. Clean carbon deposits from muffler components.
NOTE
When cleaning carbon deposits, be careful not to damage the
catalytic element inside muffler.
4. Replace screen if it is cracked, plugged or has holes burned
through.
5. Assemble in reverse order of removal. Make sure screen is posi-
tioned properly before tightening screws.
