GRASS TRIMMER/BRUSH CUTTER
OPERATOR'S MANUAL
27
A

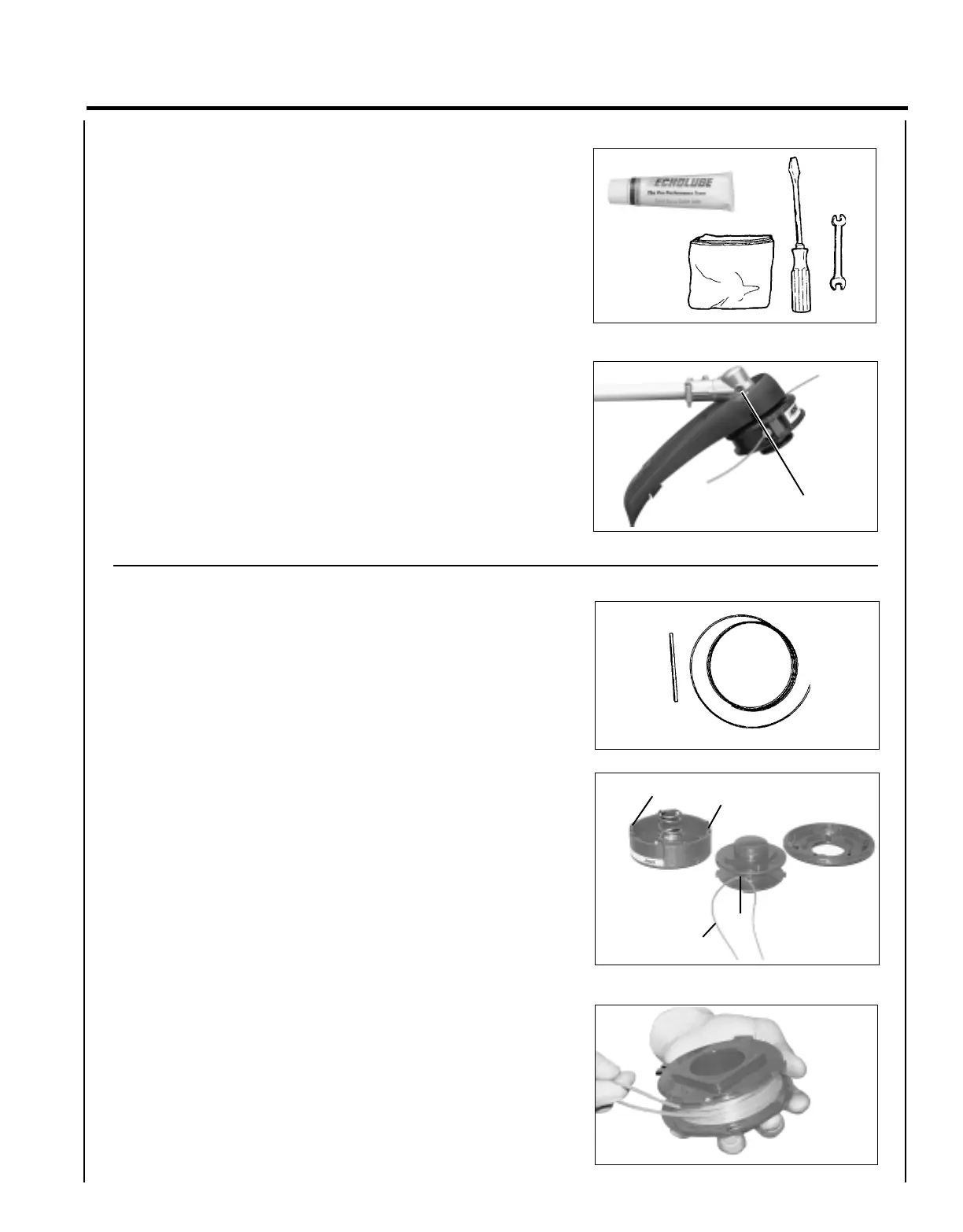

LUBRICATION
Level 1.
Tools Required: 8 mm Open End Wrench, Screwdriver, Clean Rag.
Parts Required: ECHO
®
LUBE
TM
8 oz. (P/N 91014) or Lithium Base
Grease.
Gear Housing
1. Clean all loose debris from gear box.
2. Remove plug (A) and check level of grease.
3. Add grease if necessary, DO NOT over fill.
NYLON LINE REPLACEMENT
Tools Required: Head locking tool (if head is to be removed)
Parts Required: ECHO 0.105 in. Nylon Trimmer Line 15m (50 feet)
long.
1. Shut engine off. Lay unit on the ground with head assembly up.
2. Hold head firmly and push in cover tabs (A) to remove spool.
3. Use one piece of nylon line (B) and thread through the molded
loop (C) on the spool spindle until ends are even.
4. Hold spool with the tap knob in your hand and opening toward
you. Place index finger between the two lines and wind line
clockwise tightly and evenly.
B
C
A
A
To Next Page
