Packing list
Assembly
U-handle version
U-handle assembly
1. Install handle assembling bracket (upper) (A) in handle as-
sembling bracket (lower) (D) and fix handle by tightening
handle assembling bolt (8 mm) (B) lightly.
2. Adjust inclination of handle to adequate position (easy to op-
erate) and tighten firmly handle assembling bolt.
C: Washer
The following parts are packed separately in the packing box.
When you have unpacked the box, please check the parts that it contains.
Contact your dealer if anything is missing or broken.

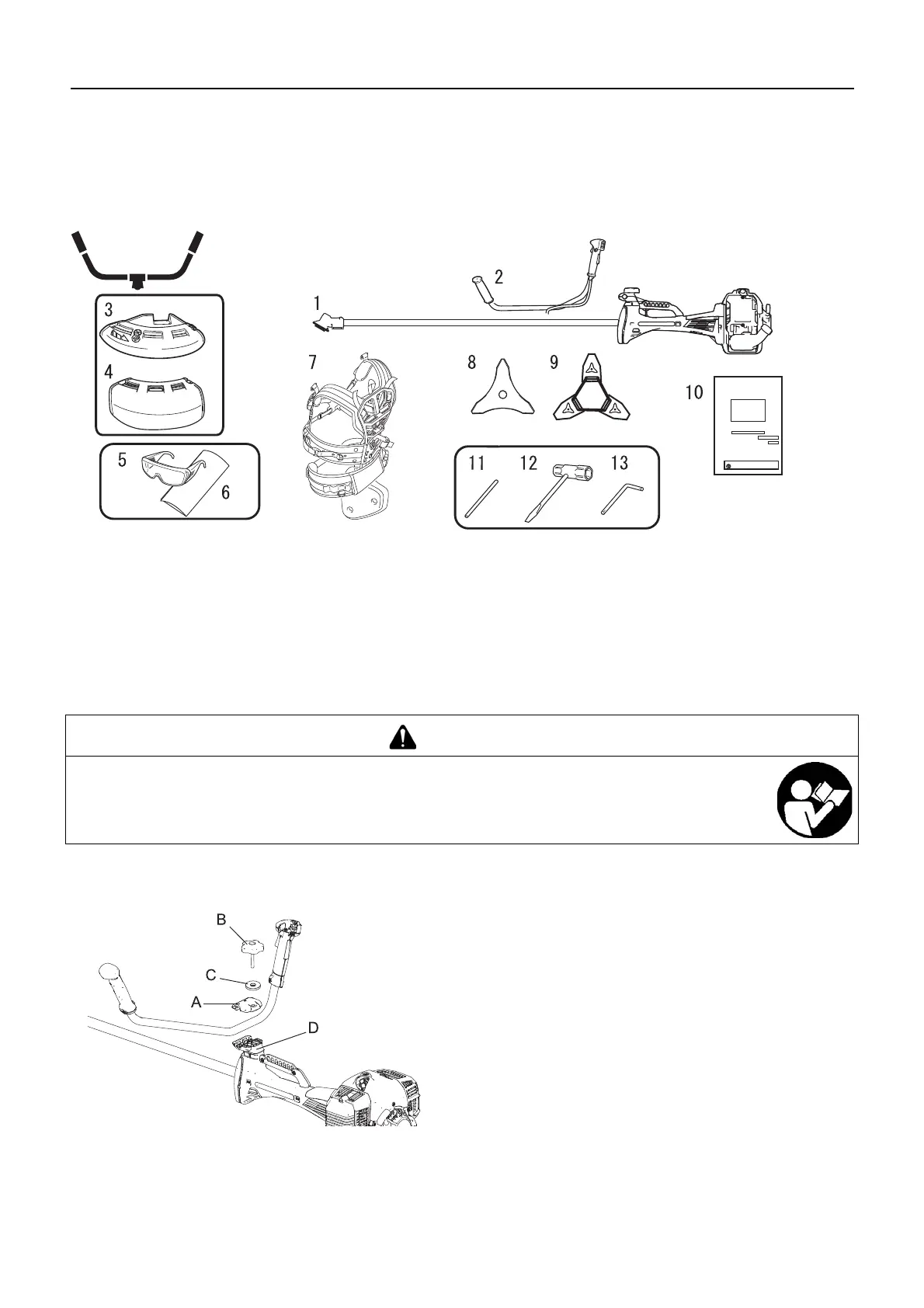

1. Engine and shaft tube
2. U-handle
3. Shield (for nylon line cutting head)
4. Shield (for metal blade)
5. Safety goggles (ANSI Z 87.1 compliant)
6. Caution tag
7. Shoulder harness
8. Nylon line cutting head
9. 3 cutter blade
10. Blade cover
11. Operator's manual
12. Locking tool
13. Socket wrench
14. L-wrench
WARNING
Read the operator's manual carefully to ensure that you assemble the product correctly.
Using a product that has been incorrectly assembled could lead to an accident or serious injury.
