Installation Guide
7
tel - 1-866-766-2267
email - gmsupport@echomaster.com
Illustrations are typical and may not match exact vehicle detail
Once the door panel is removed, place in safe area to
avoid damage.
NOTE
FCTP-GM2003
Trailering Camera System

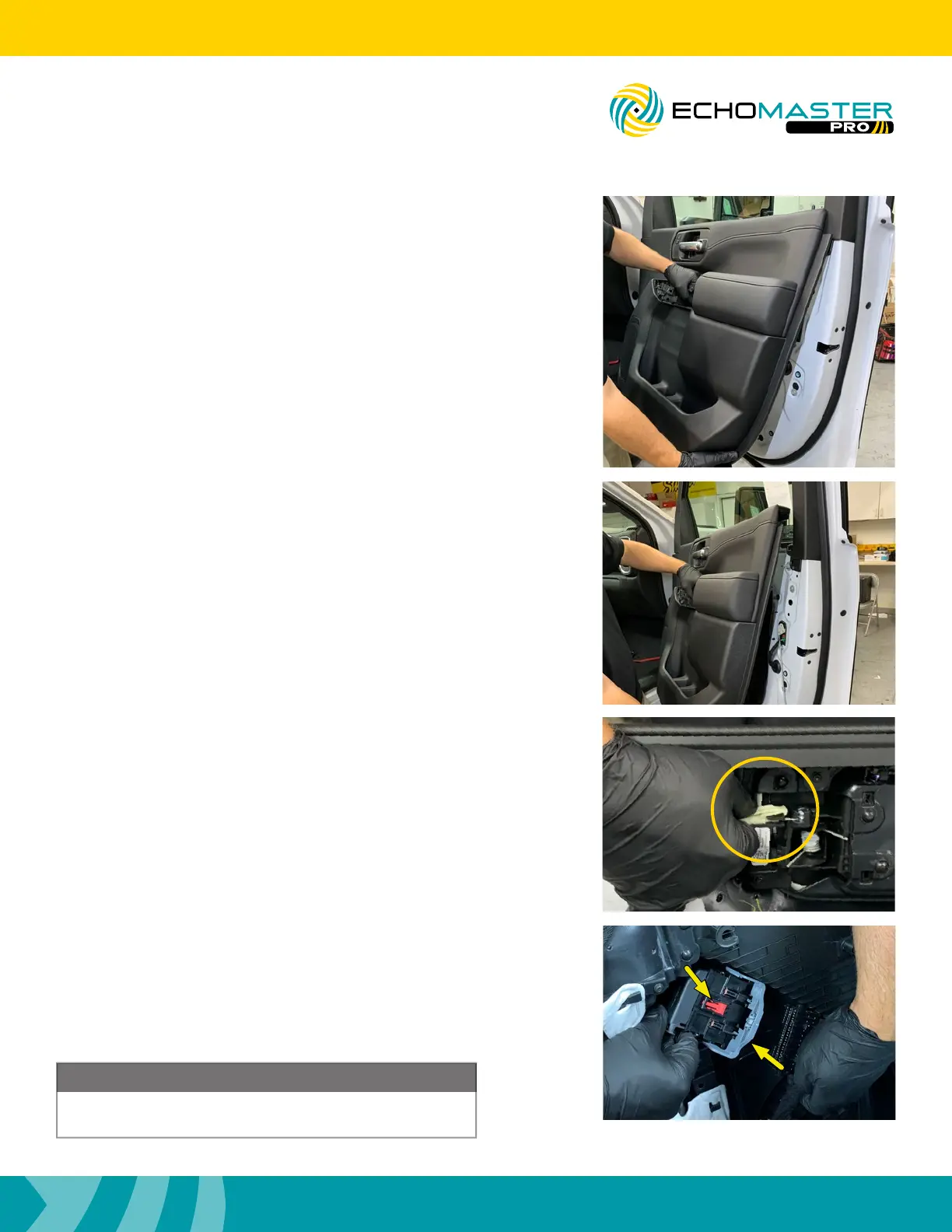

Step 7
Once all the fasteners have been released in step 6, lift up
on the door panel to remove it from the door.
Step 9
With the door panel still leaned toward you and away from
the door, disconnect the door harness. Do this by releasing
the red locking tab and rotating the large Gray slide lock tab
towards the ground.
Step 8
With the door panel leaned toward you and away from
the door, remove the door latch release cable. Do this by
pressing down on the tab, pulling back and them rotating
the fastener 90 degrees towards the door until the cable is
able to lift out of the retainer.
Red LockingRed Locking
Tab Tab
Gray SlideGray Slide
Lock Lock
