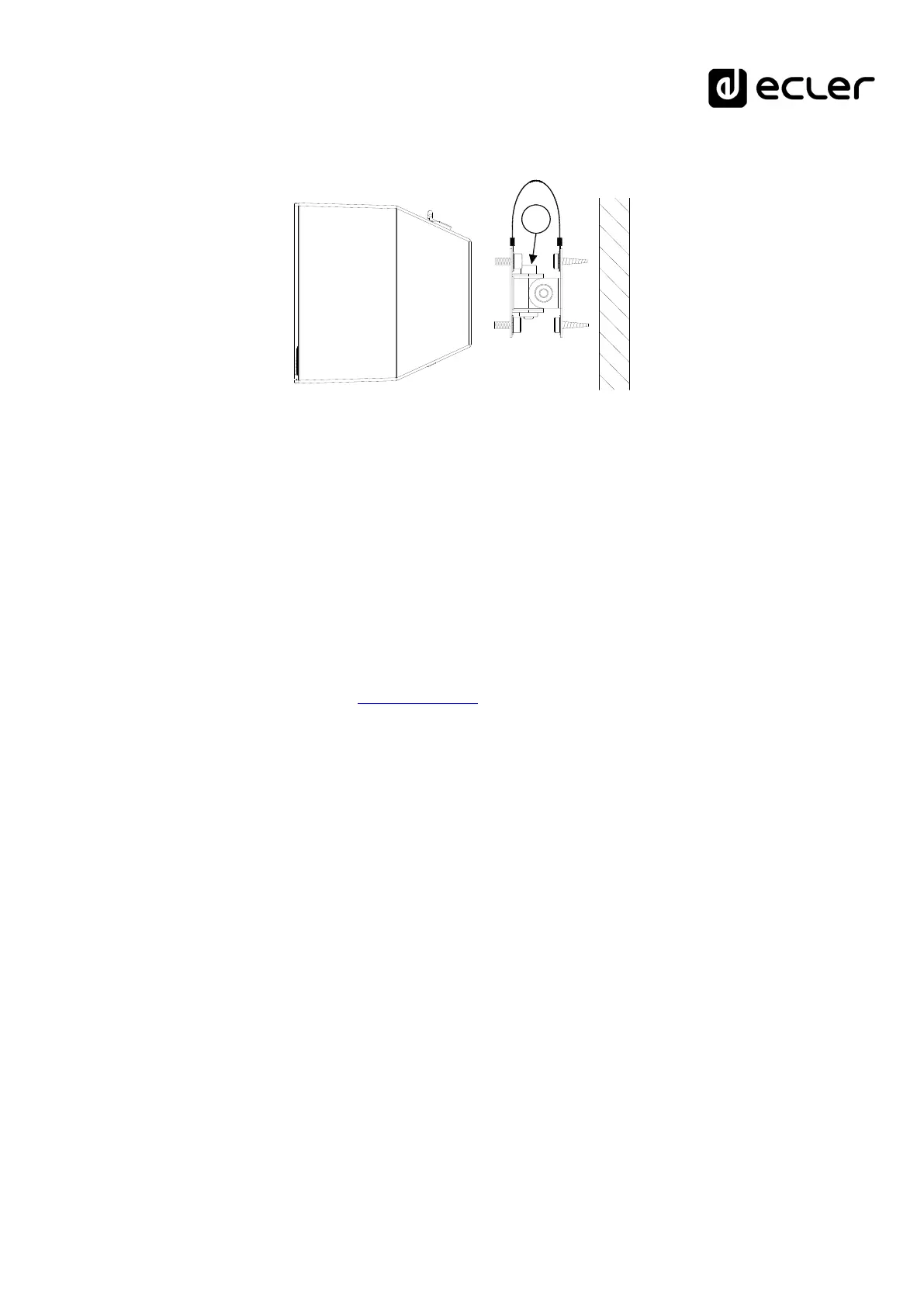

The following diagram shows you how to install the AMBIT103 using the accessory
supplied, so that it can be oriented both vertically and horizontally.
NOTE: As a general safety rule, remember to put the runner in place and also that
the screw marked “1” should be placed at the upper part of the support, so that if it
becomes loose, it will not fall.
Other installation possibilities:
• The AMBIT103 has 4 nuts inserted in the rear at a standard diagonal distance of
60mm, to permit the safety sling screw to be housed and to be coupled to a
standard bracket.
• Ecler offers a wide range of mechanical accessories that can be used to group
several AMBIT, thus enhancing their versatility even more. Please refer to your
Ecler distributor or visit www.ecler.com for all existing possibilities.
