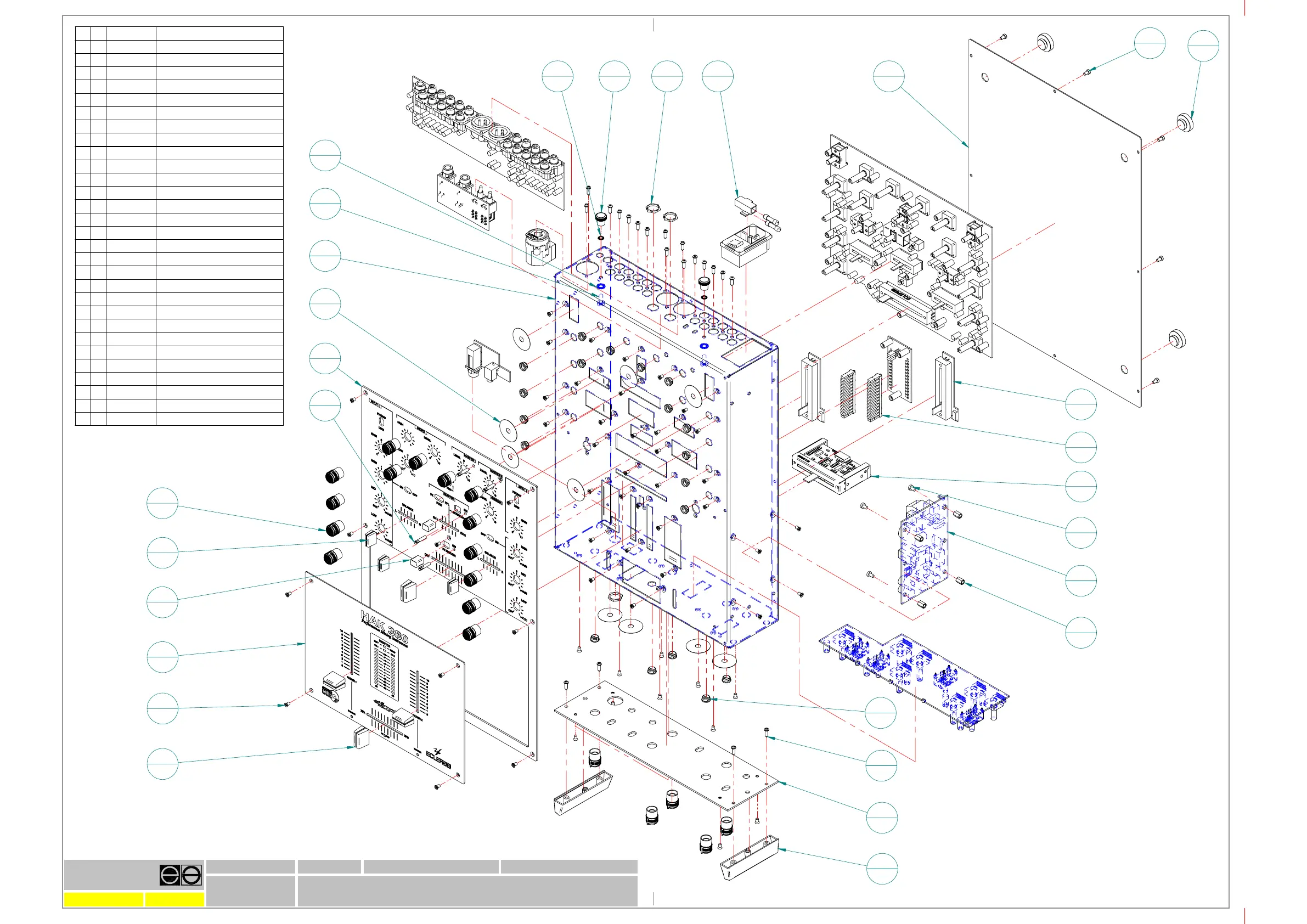

Ecler HAK380 - MECHANICAL DIAGRAM

drawn: date:
060531
project:
M03-05
product:
HAK380
number:
30.0221
version
01.01
approved:
Jordi Folc
h
title:
MECHANICAL DIAGRAM
E
C
LER
21
1
9
1
6
4
7
2
19
1
24
1
25
2
26
4
12
20
18
3
10
4
11
4
2
2
Nº Qty. Code Description
1 2 FCARDE040000 TOOTHED WASHER M4
2 2 FCARS4000000 SEGMENTED WASHER M4
3 2 FCBOR0035000 GROUND TERMINAL
4 19 FCBOTGOM1000 ROTARY KNOB RUBBER INDEX
5 10 FCDISC626000 CIRCULAR DUST FILTER
6 4 FCGUIAL10000 LIGHT PIPE GUIDE VERTICAL
7 2 FCGUIAL20000 12 WAY LIGHT PIPE VERTICAL
8 19 FCINSPLA2000 ROTARY POT. PLASTIC GUIDE
9 1 FCMEC02701 FRONTAL PANEL
10 4 FCPIE1552000 RUBBER FOOT 15520 MAC
11 4 FCSEP3080000 SPACER M3x8
12 20 FCT400290900 SCREW 2,9x9,5 D7981F BLACK
13 4 FCT803005000 SCREW DIN 7985 M3x5 COMBI
14 55 FCT803005500 SCREW D965 M3x5 BLACK
15 8 FCT850300500 SCREW M3x5 REDUCED HEAD
16 2 FCT850411000 SCREW M4x10 TRILOB. WHITE
17 2 FCTOPPL03000 PLASTIC CORNER EMBELLISHMENT
18 3 FCTUE0120000 NUT M12
19 1 FMETHERNAL ETERNAL XFADER
20 1 FMFONT40C000 FONT40C POWER SUPPLY
21 1 FP0289600000 ROTARY POTS FRONT PANEL
22 1 FP0291700000 BASE CHASSIS
23 1 FP0292300000 BOTTOM COVER
24 1 FRBASRE30100 MAINS SOCKET W/SWITCH 2xFUSE=500mA
25 2 FRBOT07X9010 BUTTON 7X9 CHROME
26 4 FRBOTD003000 HAK FADER KNOB
27 3 FRBOTD004000 LITTLE FADER KNOB CHROME
28 1 FRLEXHAK3800 FADERS FRONT PANEL
29 2 GENERIC FADER/XFADER 2X100K 45MM ECLER
15
8
1
2
16
2
20
1
13
4
27
3
14
55
28
1
4
19
5
10
22
1
3
2
23
1
29
2
17
2
8
19
