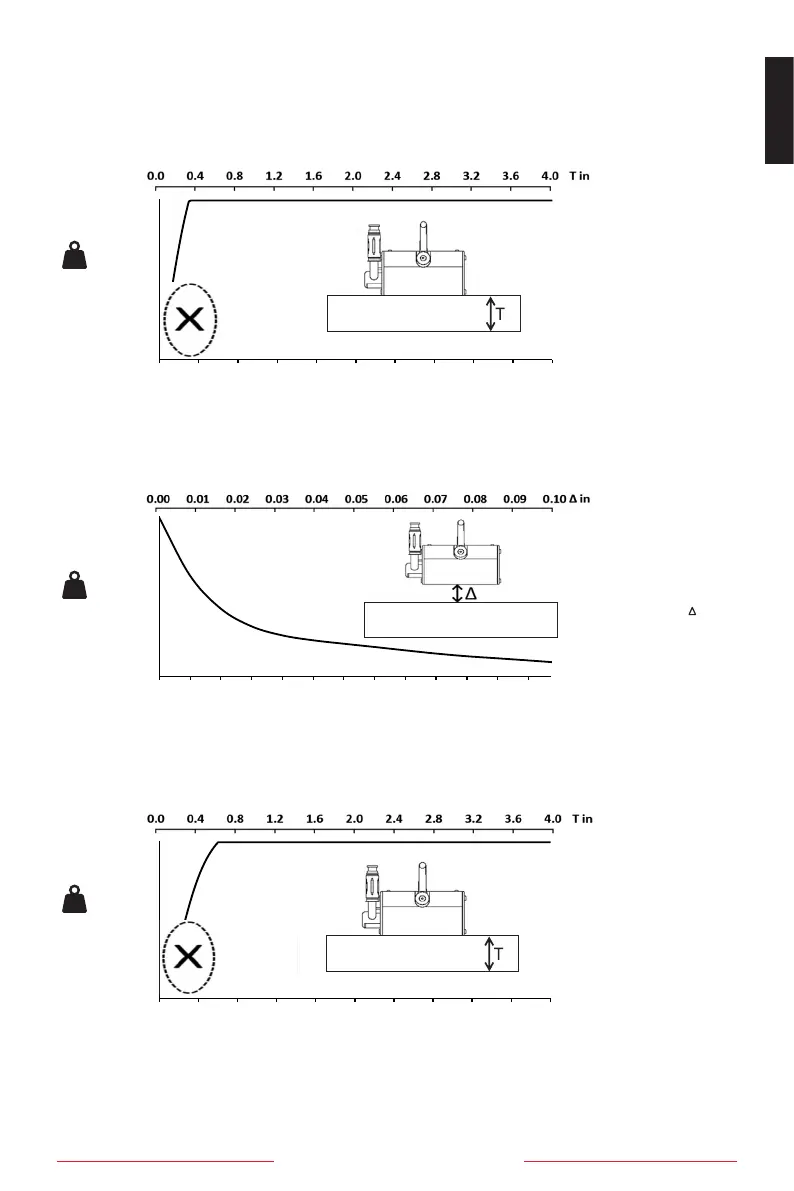

4.2 Performance Curves
WLL
WLL
1000kg
(2200lb)
≥45mm
(≥1.77”)
kg
(lb)
WLL
WLL
1000kg
(2200lb)
≥45mm
(≥1.77”)
kg
(lb)
WLL
WLL
1000kg
(2200lb)
≥45mm
(≥1.77”)
kg
(lb)
ULE0300 / ULE0660
300kg (660lb)
WLL VS THICKNESS (T)
DATA GRAPH
0%
10%
20%
30%
40%
50%
60%
70%
80%
90%
100%
0 10 20 30 40 50 60 70 80 90 100
T mm
ULE0100 / ULE0220
100kg (220lb)
WLL VS THICKNESS (T)
DATA GRAPH
Note:- Performance
varies with material.
Note:- Performance
varies with material.
ULE0100 / ULE0220
100kg (220lb)
WLL VS AIRGAP ( )
DATA GRAPH
