4 Technical Data

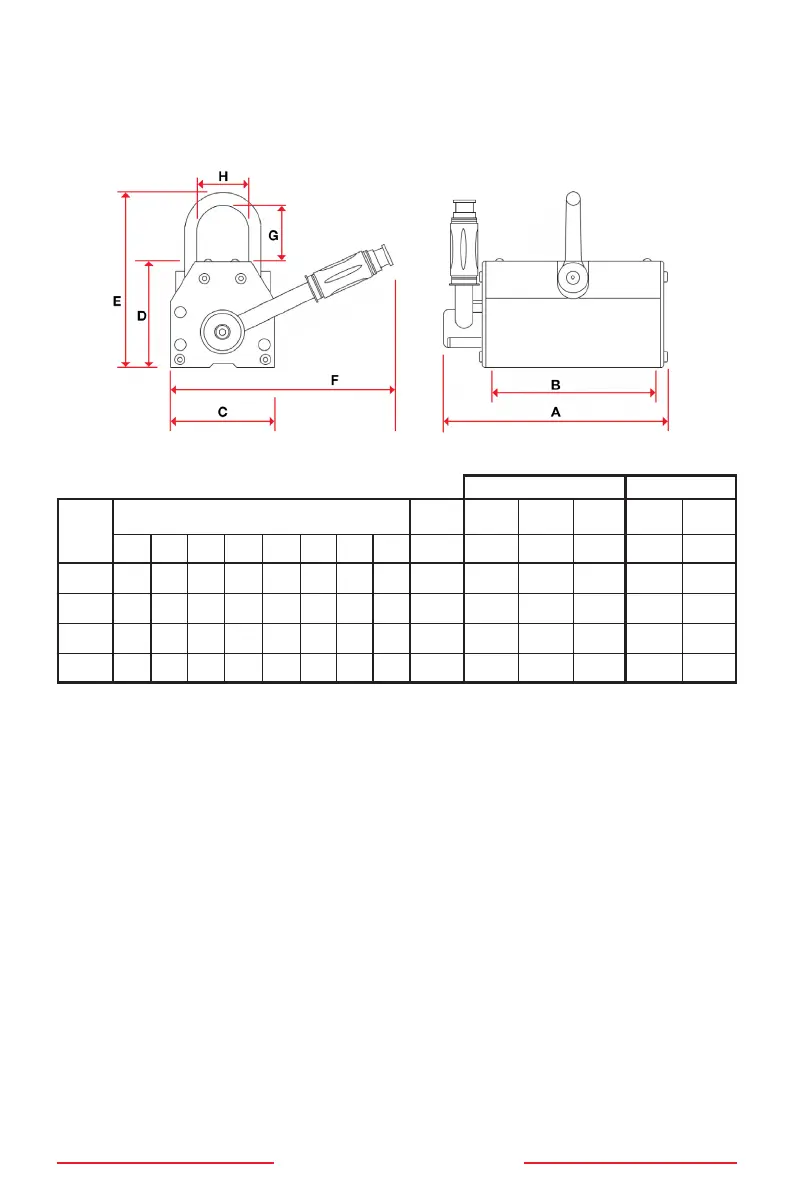

4.1 Model Types
Flat Section Round Section
Model
Number
Dimensions (mm)
Self
Weight
WLL*
Thickness
Min.
Length
Max.
WLL*
Diameter
Max.
A B C D E F G H kg kg mm mm kg mm
ULE0100 131 91 65 75 124 185 45 32 3 100 15 1000 50 80
ULE0300 202 157 95 95 169 253 63 46 10 300 20 1500 150 100
ULE0600 283 248 120 118 220 280 90 61 23 600 30 2000 300 140
ULE1000 350 308 136 140 269 310 110 79 39 1000 40 2500 500 180
* Please note that the Working Load Limit (WLL) is now used instead of Safe Working Load
(SWL). The Lifting force values shown include the 3:1 safety factor and have been based on
using thick high magnetic permeability steel with no air gaps. Air gaps, thinner materials
and materials with lower magnetic permeability can all reduce the pull force a lifter can
actually achieve. Please note that the achievable pull force is reduced when lifting thinner
mild steel plate. Please note that the diameter of the round bar can aect the amount of
lift that can be achieved. You must follow LOLER, PUWER, ASME B30.20 and H&S advice. You
should always check for a downrate, factor in any downrate to then perform a safety lift,
then perform a full lift only after a successful safety lift.
