Eclipse AVN4430 User Manual

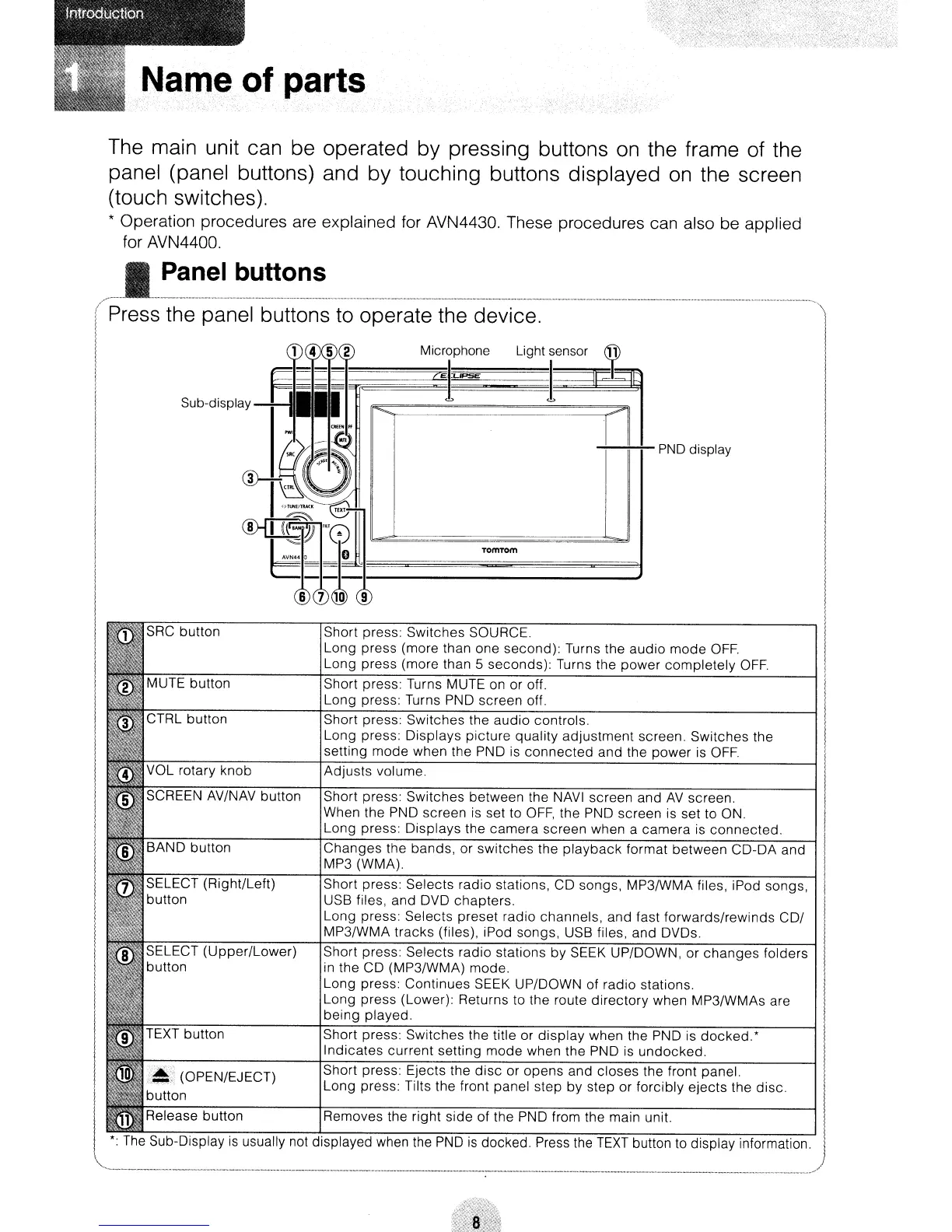

Name of parts
The main unit can be operated by pressing buttons on the frame of the
panel (panel buttons) and by touching buttons displayed on the screen
(touch switches).
* Operation procedures are explained for AVN4430. These procedures can also be applied
for AVN4400.
l
PND display
TomTom
Sub-display
~ Panel buttons
( Press the panel buttons to operate the device.
:
.' SRC button
MUTE button
CTRL button
VOL rotary knob
SCREEN AV/NAV button
BAND button
SELECT (Right/Left)
button
SELECT (Upper/Lower)
button
TEXT button
·.~i (OPEN/EJECT)
button
Release button
Short press: Switches SOURCE.
Long press (more than one second): Turns the audio mode
OFF.
Long press (more than 5 seconds): Turns the power completely OFF.
Short press: Turns MUTE on or off.
Long press: Turns PND screen off.
Short press: Switches the
audio controls.
Long press: Displays picture quality adjustment screen. Switches the
setting
mode when the PND is connected and the power is OFF.
Adjusts volume.
Short press: Switches between the
NAVI screen and AV screen.
When the PND screen is set to OFF, the PND screen is set to ON.
Long press: Displays the
camera screen when a camera is connected.
Changes the bands, or switches the
playback format between CD-DA and
MP3 (WMA)
Short press: Selects radio stations, CD songs, MP3/WMA files, iPod songs,
USB files, and DVD chapters.
Long press: Selects preset radio channels, and fast forwards/rewinds CD/
MP3/WMA tracks (files), iPod songs, USB files, and DVDs.
Short press: Selects radio stations
by SEEK UP/DOWN, or changes folders
in the CD (MP3/WMA) mode.
Long press: Continues SEEK UP/DOWN of radio stations.
Long press (Lower): Returns to the route
directory when MP3/WMAs are
being played.
Short press: Switches the title or display when the PND is
docked.*
Indicates current setting mode when the PND is undocked.
Short press: Ejects the
disc or opens and closes the front panel.
Long press: Tilts the front panel step by step or forcibly ejects the disc.
Removes the right side of the PND from the main unit.
*: The Sub-Display is usually not displayed when the PND is docked. Press the TEXT button to display information.
