T-SLOT MOUNTING SYSTEM
The Geo utilises a T-slot arrangement to mount the
OOPS to the bottom of the frame. The T-slot is an
improvement over the dovetail mounting system
found on most paintball markers, and is much more
able to withstand the rigours of modern tournament
paintball.
For backwards compatibility there are industry
standard mounting holes in the base of the frame for
mounting third party air source adaptors (ASAs).
MACROLINE HOSING AND
ELBOWS
To aid the longevity of your macroline hosing, it is
very important to remove it from (and install it back
into) the fittings in the correct manner:
Pull back the collet section of the macroline fitting and
keep the collet depressed.
Pull the macroline hose out of the macroline fitting and
release the collet.
Before installing the macroline hose into the macroline
fitting ensure that the end has been trimmed correctly
to ensure a tight fit in the fitting.
SETTING UP
Before you can begin to use your Geo, you will need to
attach an air-system and a paintball loader.

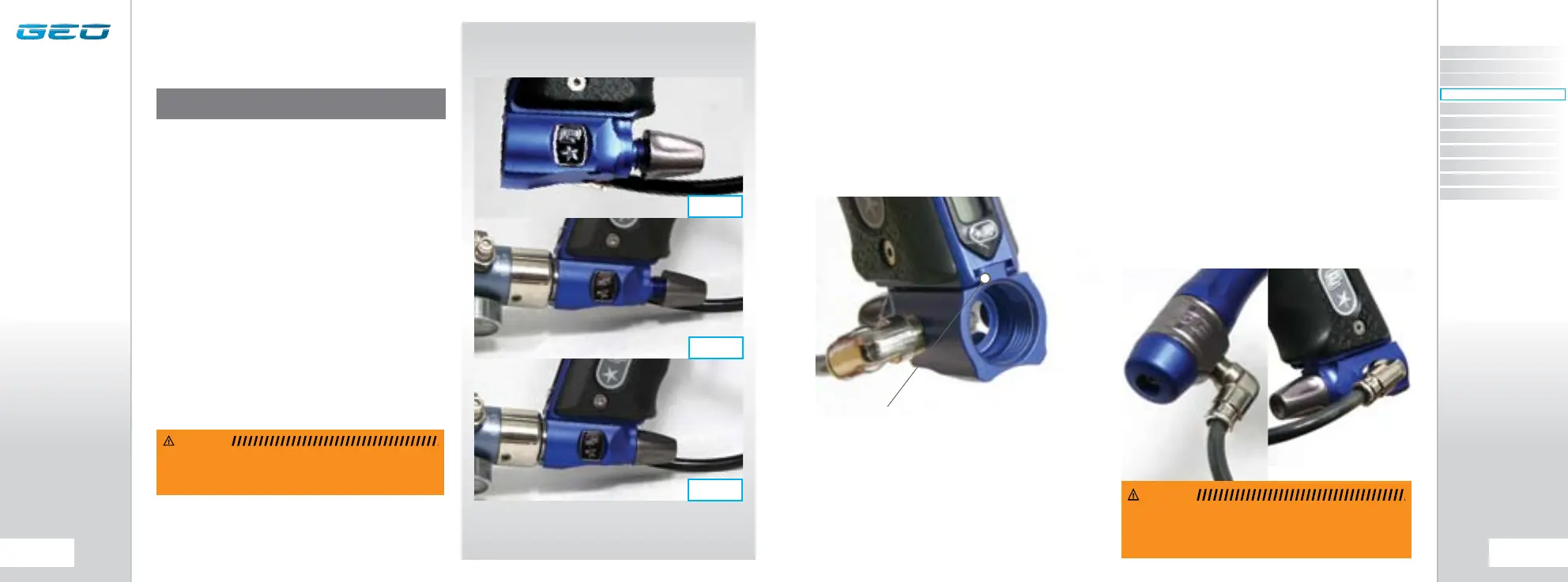

INSTALLING A PRESET AIR
SYSTEM
Every Geo comes complete with an Eclipse On/Off
Purge System (OOPS) which provides a direct
connection for a preset air system. Before screwing the
air system into the OOPS ensure that the On/Off knob
is wound out approximately half way (SEE FIGURE 4.1).
Be careful not to unscrew the On/Off knob too far as
it will come completely off the OOPS. If this happens,
replace the On/Off knob by screwing it back onto the
OOPS body in a clockwise direction.
Screw the preset air system into the OOPS (SEE FIGURE
4.2) so that the bottle screws in all the way and is tight.
Slowly turn the On/Off knob in a clockwise direction
allowing the OOPS to depress the pin of the preset
air system causing the Geo to become pressurised,
providing that there is sufficient air in your tank (SEE
FIGURE 4.3).
You have now installed a preset air system onto your
Geo.
NOTE: THE GEO CANNOT BE USED WITH CO2, IT CAN ONLY
BE POWERED BY COMPRESSED AIR OR NITROGEN.
WARNING: IF YOU EVER REMOVE THE MACROLINE
HOSE FROM THE FITTING, ALWAYS CHECK THE CONDITION
OF YOUR MACROLINE HOSING AND IF IT IS WORN OR THE
WRONG LENGTH REPLACE IT IMMEDIATELY.
WARNING: ALWAYS RELIEVE ALL RESIDUAL GAS
PRESSURE FROM THE GEO BEFORE UNSCREWING THE
PRESET AIR SYSTEM.
T-SLOT
MOUNT
FIG 4.3
FIG 4.2
FIG 4.1
