EKO INSTRUMENTS CO., LTD. 4-20mA Signal Converter MC-11 Instruction Manual V1
Pg. 8
5. Getting Started
5-1. Parts Name
Each part name and its main functions are described below.
Table 5-1. Parts Name and Terminal Numbers
Parts Name
Terminal Numbers
1
Pyranometer Signal Input Terminal ( - )
1
2
Pyranometer Signal Input Terminal ( + )
2
3
Temperature sensor (NTC 10kΩ)
3
4
Temperature sensor (NTC 10kΩ)
4
5
4-20mA Output & Power Supply Input Terminal ( - )
5
6
4-20mA Output & Power Supply Input Terminal ( + )
6
7
Ground terminal
N/A
2
1
6
5
7

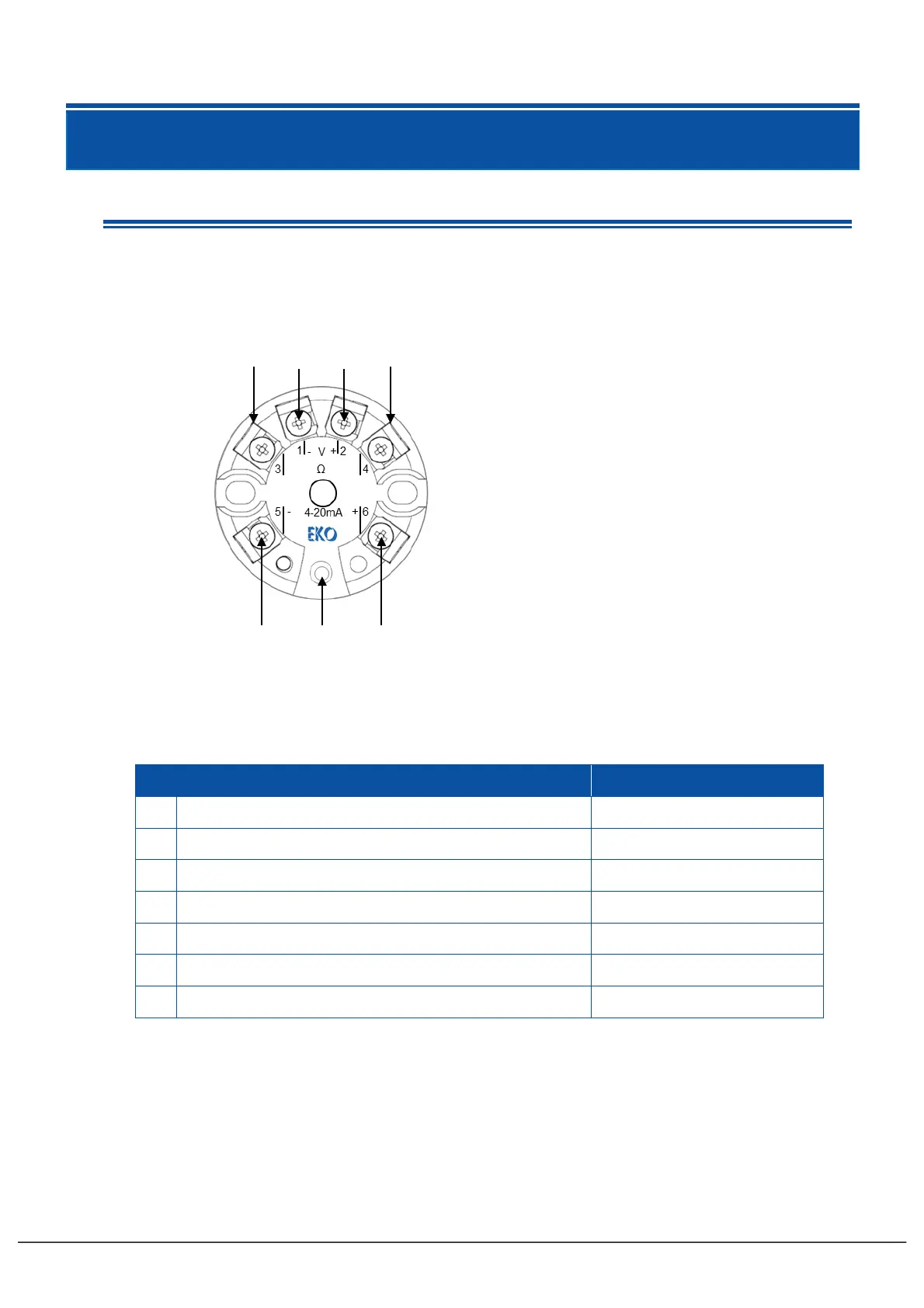

Figure 5-1. Parts Name
4
3
