Setting min. light level
Turn on the lights using the dimmer shaft. Then turn the dimmer shaft as far as possible to
the left (minimum light output). Do the lights blink? Then use a screwdriver to slowly turn
the MIN potentiometer to the right for stable light. Is the light already stable? Then slowly
turn the MIN to the left for even better dimmability, to just before the point where the lamps
start blinking. This is the best dimmability of the LED lamps.
Specifications
Connection voltage:
Frequency:
Dimming technology:
Dimmable LED lamps:
Lamps with electronic transformers:
Halogen and incandescent lamps:
• Suitable for both retrofit lamp bulbs and new installations.
• Two-wire connection - no neutral wire required.
• Soft start system for longer LED lamp life.
• Built-in protection for temperature protection and overload.
220-240 VAC 50Hz
2,4 GHz, 868 / 915 MHz
Trailing edge and leading edge (R,L,C)
0-250W Trailing (R,C)
0-150W Leading (R,L)
10-300W
10-300W
Manual
ECO-DIM.07 Zigbee
PRO
Universal Zigbee Led dimmer (R,L,C)
Note:
• This is a two-wire dimmer and it should be connected as shown under the heading
‘Wiring diagram’.
• Installation of the dimmer on a 230V mains should be carried out by a qualified
professional, taking into account national regulations. Ensure that the electricity is
switched o during all work.
• You cannot connect more than one dimmer in parallel. To then control the same load
from two points.
• Dimmer is not suitable for wound/magnetic or core transformers.

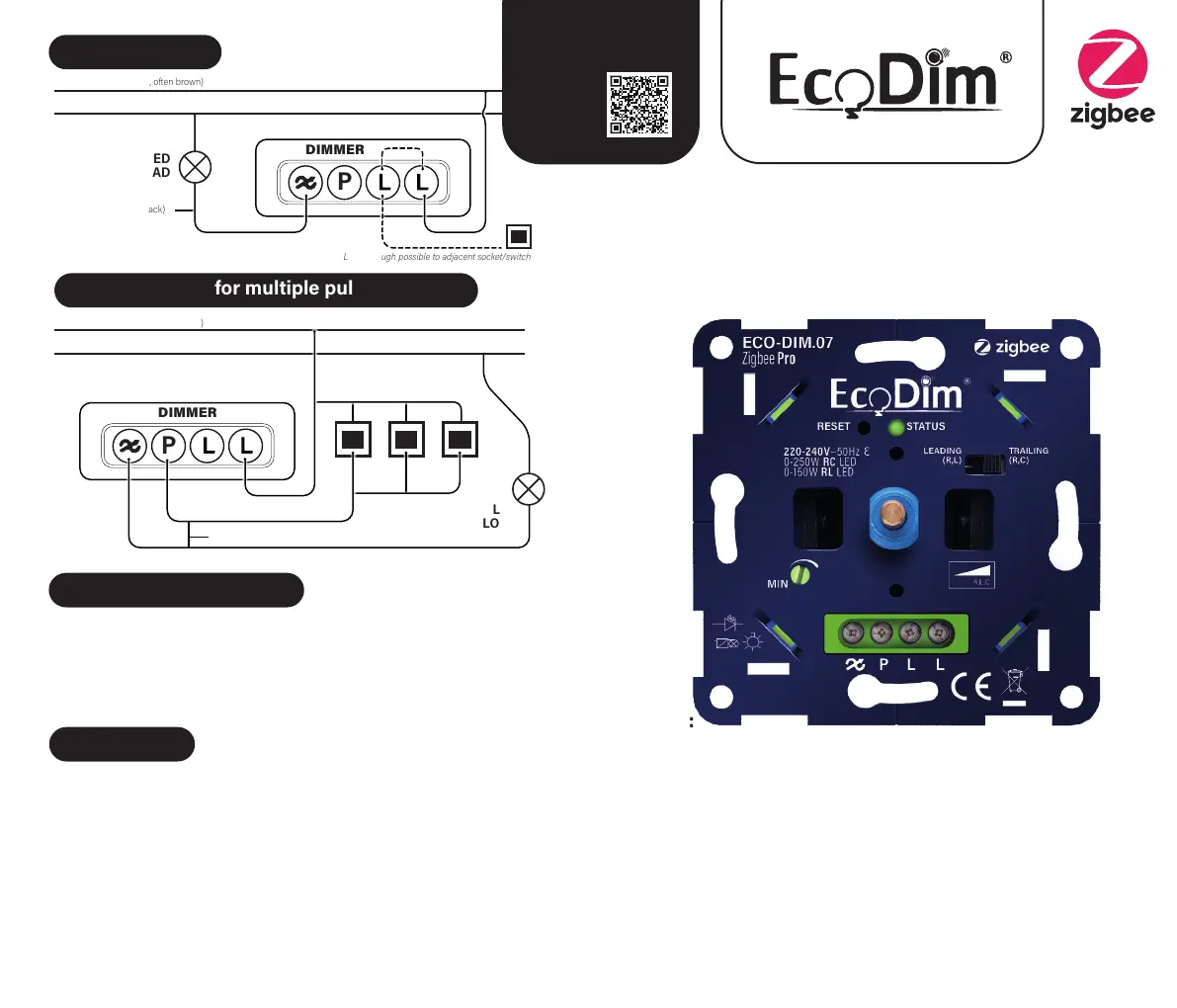

Wiring diagram
DIMMER
P
Wiring diagram for multiple pulse switches
L wire
(Phase wire, often brown)
(Neutral wire, often blue)
N wire
LED
LOAD
DIMMER
P
LED
LOAD
L wire
(Phase wire, often brown)
(Neutral wire, often blue)
N wire
Loop-through possible to adjacent socket/switch.
(Switching wire, often black)
(Switching wire, often black)
EcoDim B.V.
Dr. Huber Noodtstraat 89
7001 DV, Doetinchem, Netherlands
(Imported by NJ Trading B.V.)
Made in China
Simplified EU Declaration of Conformity:
We, EcoDim B.V., hereby declare that this product conforms to the
directives applicable from the European Union.
The full text of the EU declaration of conformity can be consulted
at the following internet address:
https://www.ecodim.nl/en/service/ecodim-certificering
