EcoFlow POWER HUB - Bypass Mode; Inverter Mode

EN
12

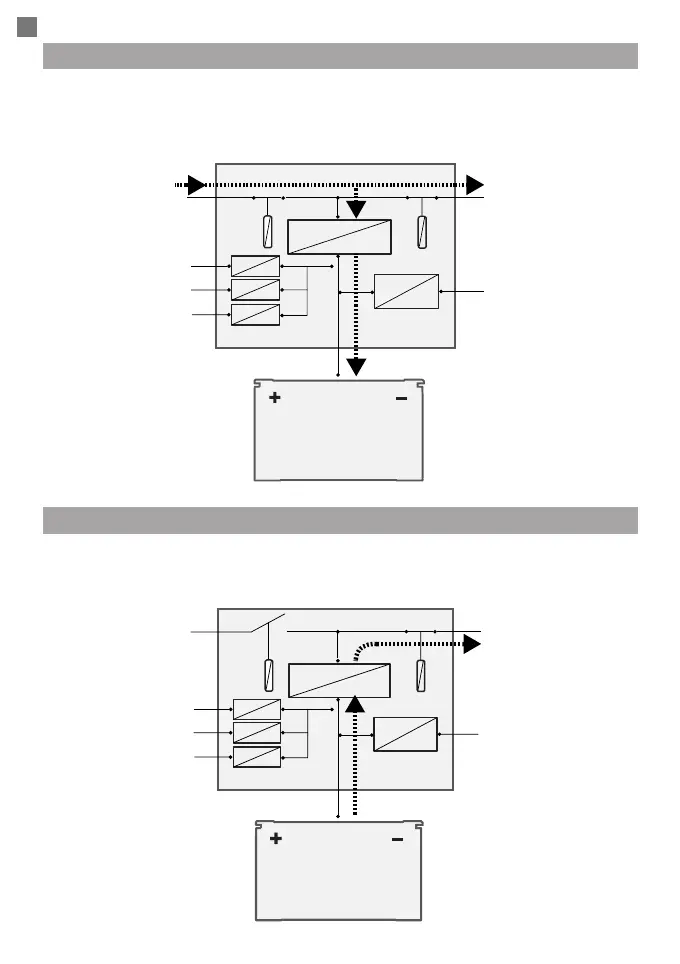

When external AC power source is not available, the system will enter Inverter Mode. AC
Output is now supplied by the LFP battery.
Inverter Mode
Bypass Mode
When the product is connected to external AC and the AC output is enabled, the system
enters bypass mode. The AC output is provided by the external AC power supply and the
LFP battery is charged by the external AC power supply.
AC
DC
DC
DC
DC
PV1
PV2
PV3
DC
DC
DC
DC
DC
AC IN
AC OUT
DC OUT
BATTERIES
AC
DC
DC
DC
DC
PV1
PV2
PV3
DC
DC
DC
DC
DC
AC IN
AC OUT
DC OUT
BATTERIES
