2. Install M5*12 in the corresponding positions on back of the microinverter.
×1
×3

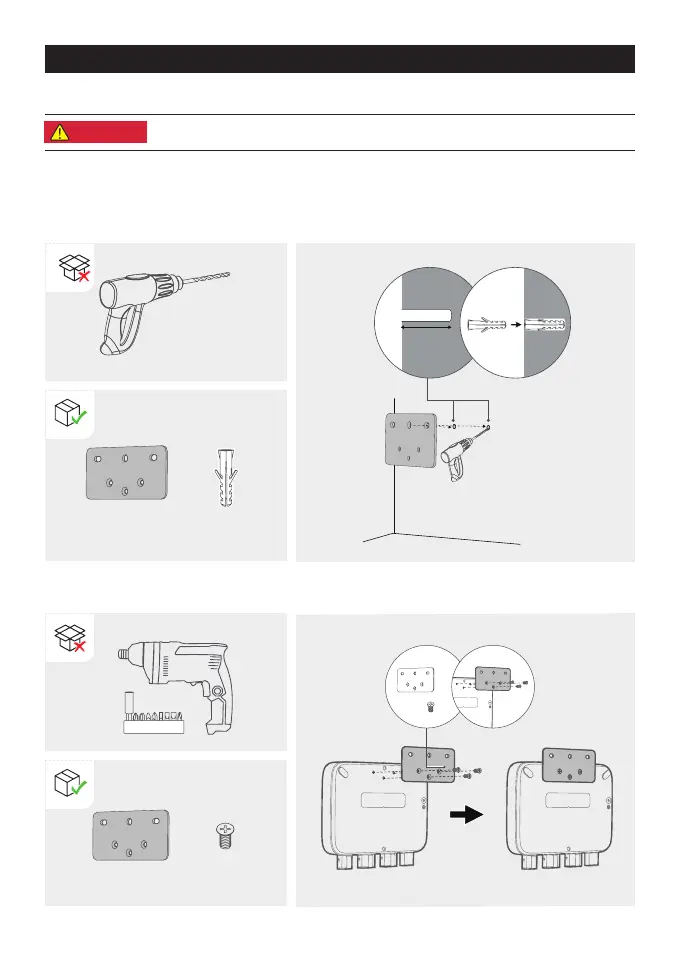

1. Use the installation board to locate the hole and drill two holes about 41 mm in depth in the
wall. Then, insert M5*40 into the holes.
Mount on the wall
If your balcony solar system does not include a power station, you can mount the microinverter.
Mounting the microinverter
Diller Ф8mm (0.31in.)
(not provided)
Installation board
Installation board
M5*40
M5*12
X2X1
X3X1
41mm
2×
Wear protective goggles or gloves when drilling holes.
DANGER
