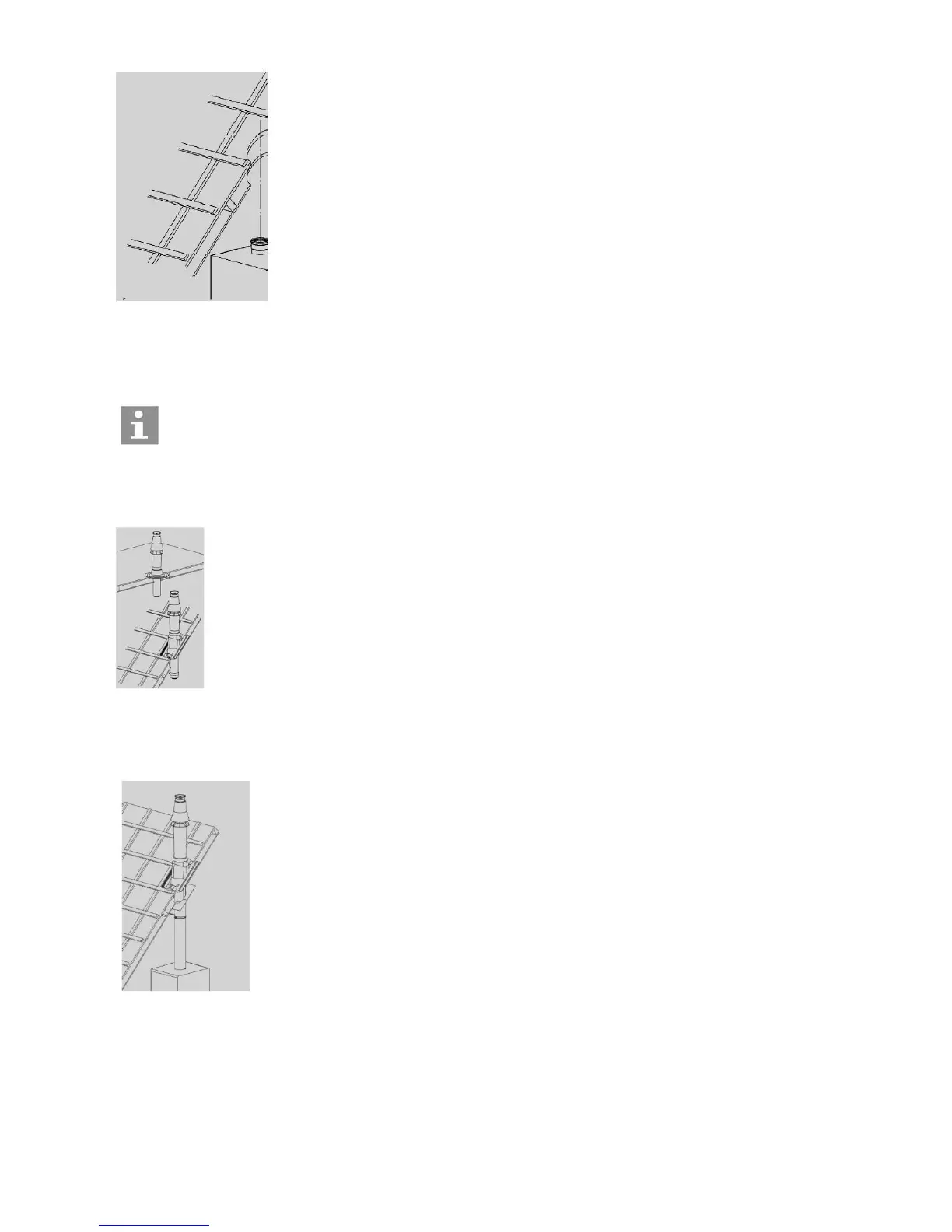

Figure 4.18 Location
5. Place the weather collar into position. See figure 4.19.
6. Carefully insert the flue terminal through the weather collar from outside the roof.
Notice
Do not turn cap. See figure 4.19.
7. Assure that the flue terminal is plumb using a level or similar device. See figure 4.19.
8. Fix the wall clamp (supplied) around the flue terminal. Do not tighten the clamp. See figure 4.19.
Figure 4.19 Positioning of roof terminal
9. Connect the flue terminal to the appliance with appropriate flue pipe and fittings. Install the concentric vent in
accordance with the installation instructions supplied with the straight vent sections. See figure 4.20.
Figure 4.20 Connecting concentric system
10. Finally secure the roof clamp.
27
