6.4.1 Terminal assignment
The terminals can be accessed after dismounting the front lid,
(see
Ä
Chapter 6.4 ‘Electrical installation’ on page 45, Fig. 14, pos. 2).
In accordance with the terminal assignment given below, modifications can be made to
control inputs at the customer's site.
NOTICE!
Only skilled personnel are authorised to carry out all changes to the
terminal assignment. Contact our Customer Service if you have any queries
or need assistance
Ä
Chapter 1.8.2 ‘Technical support contact’
on page 13.

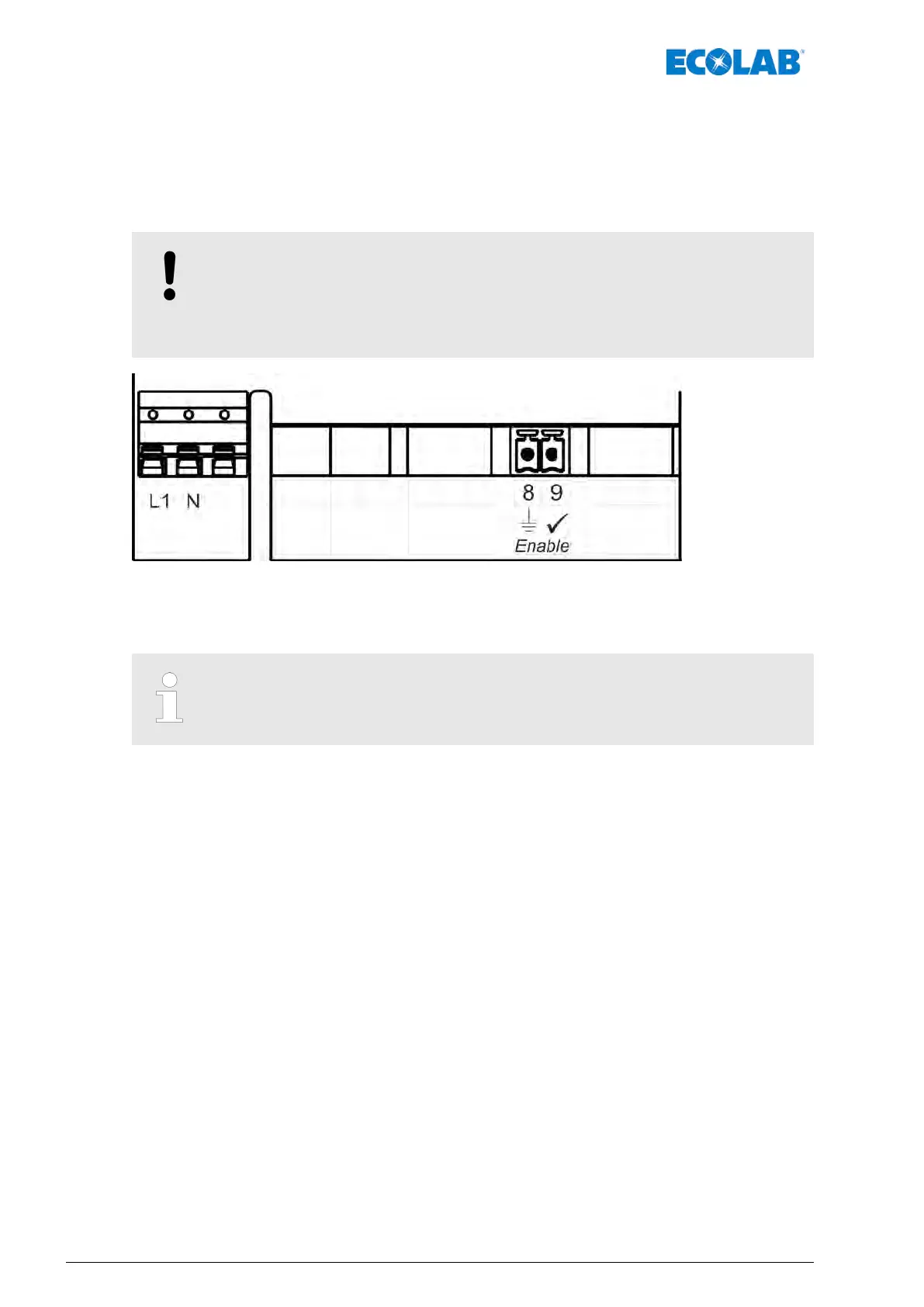

Fig. 15: Terminal assignment ‘EcoPro’
L1 Mains phase (live conductor)
N Neutral (earth)
8 Enable signal, earth (GND)
9 Enable signal, signal input
Permissible external diameters for connecting the inputs/outputs:
AD Ø = 5.1-5.7 mm (pos. 2-5).
Permissible cable: LIYY 4x0.5; LIYY 5x0.34; L
YCY 2x0.34; Oilflex 4x0.5
Mounting and installation
46417102264 Rev. 6-12.2019
