Ecom Ident-Ex 01 - Firmware Update via BOOT Command

14

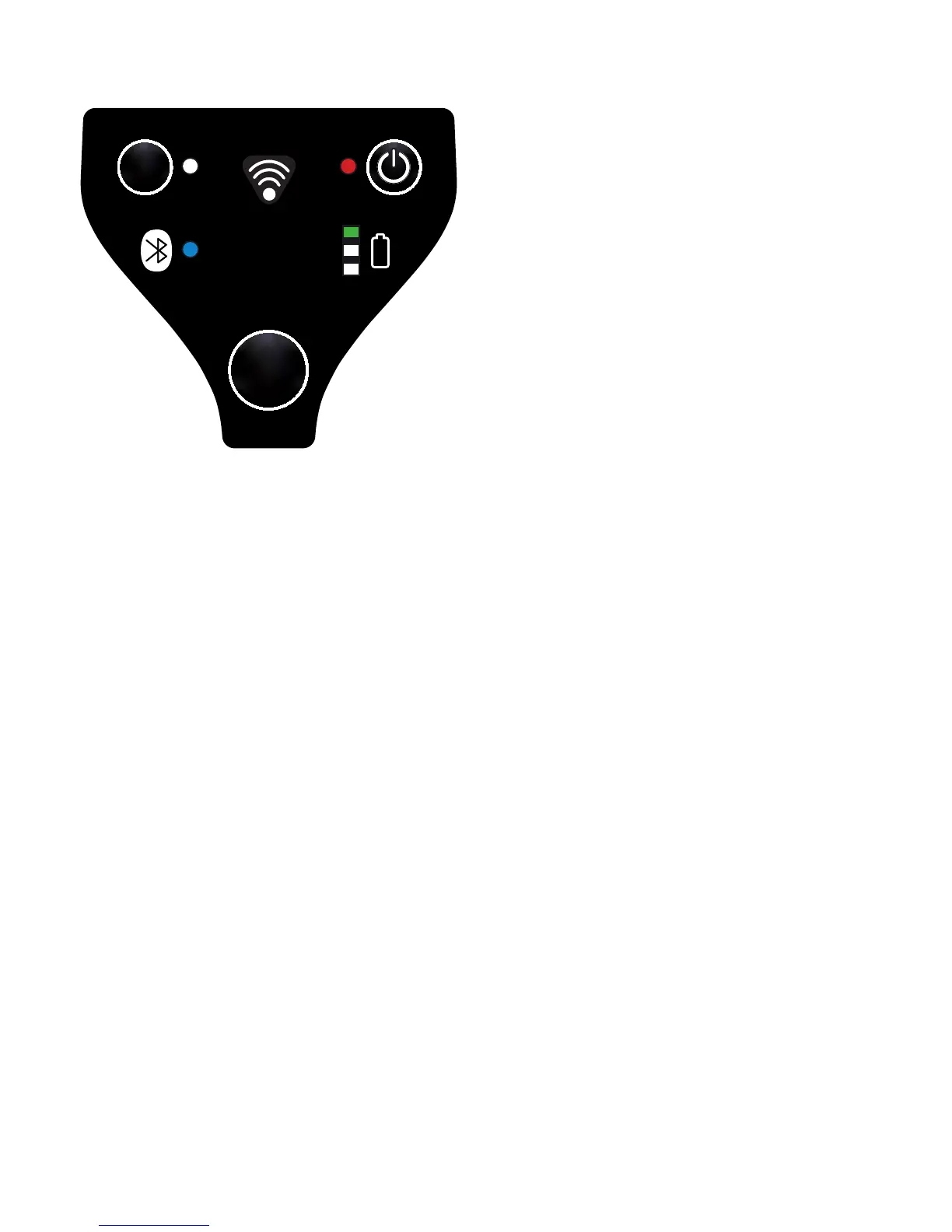

If the transfer was successful, the green light of the battery indicator will blink
shortly.
The new rmware now starts and the Bootloader will leave.
If a failure occurs during the transfer, the rmware can’t be started and we will
stay in the Bootloader (a chaser light in the battery indicator goes from red, to
yellow, to green).
In this case the rmware hast to be installed (see point Installation of new
rmware).
A new Bluetooth connection has to be set up, if the connection is lost while
installing a new rmware (the SPP and Bluetooth LED are not on)
By sending the symbol string “BOOT”
The second possibility of installing new rmware for the Ident-Ex is to send the
symbol string „Boot“, before data is send through the HyperTerminal. Therefore,
only „Boot“ has to be typed in the HyperTerminal. The red LED on the battery
indicator will start blinking on the Ident-Ex which means, that the Ident-Ex
requests data from the computer.
