| ECOMAT200028
CLASSIC PLUS
1) Main switch (red)
This switch is used to put the device into operation. When switched on, the built-in red glow lamp
lightsup.
2) Power rocker switch with positions 450 W / 750 W / MAX
The power level is selected with the 3-position rocker switch. At the 450 W level, the power supply needs
to be protected by 2 amps. This is the smallest possible protection. It also serves as an economy circuit.
The ratio of heat output to power consumption is as follows:
• 450 W / 2 A - Fusing: For very small fuses and low heat requirements, also serves as an economy
circuit.
• 750 W / 4 A - fuse: This position can also be selected for small fuses and serves as an economy
circuit.
• MAX 1500/1800 W / 6-10 A - Protection: With this position the maximum heating power is selected
according to the heat requirement or for quick heating. The fan rotates at high speed.
EN

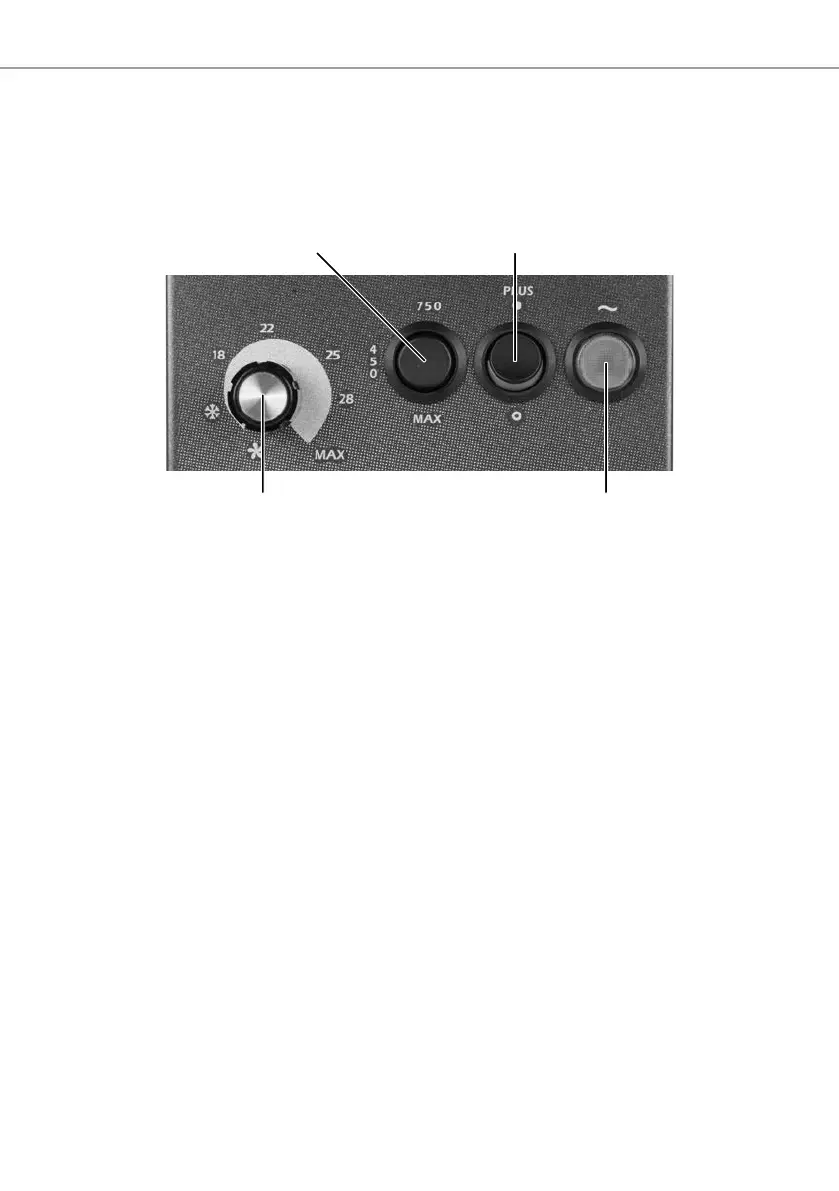

2) Power rocker switch
3) Thermostat rotary knob 1) Main switch (red)
4) PLUS rocker switch
