Installation & Operation Manual Proven Quality since 1892
ECON actuator Fig. 7907, type ELA80 3000 www.eriks.com
Rev.23 August, 2023 11

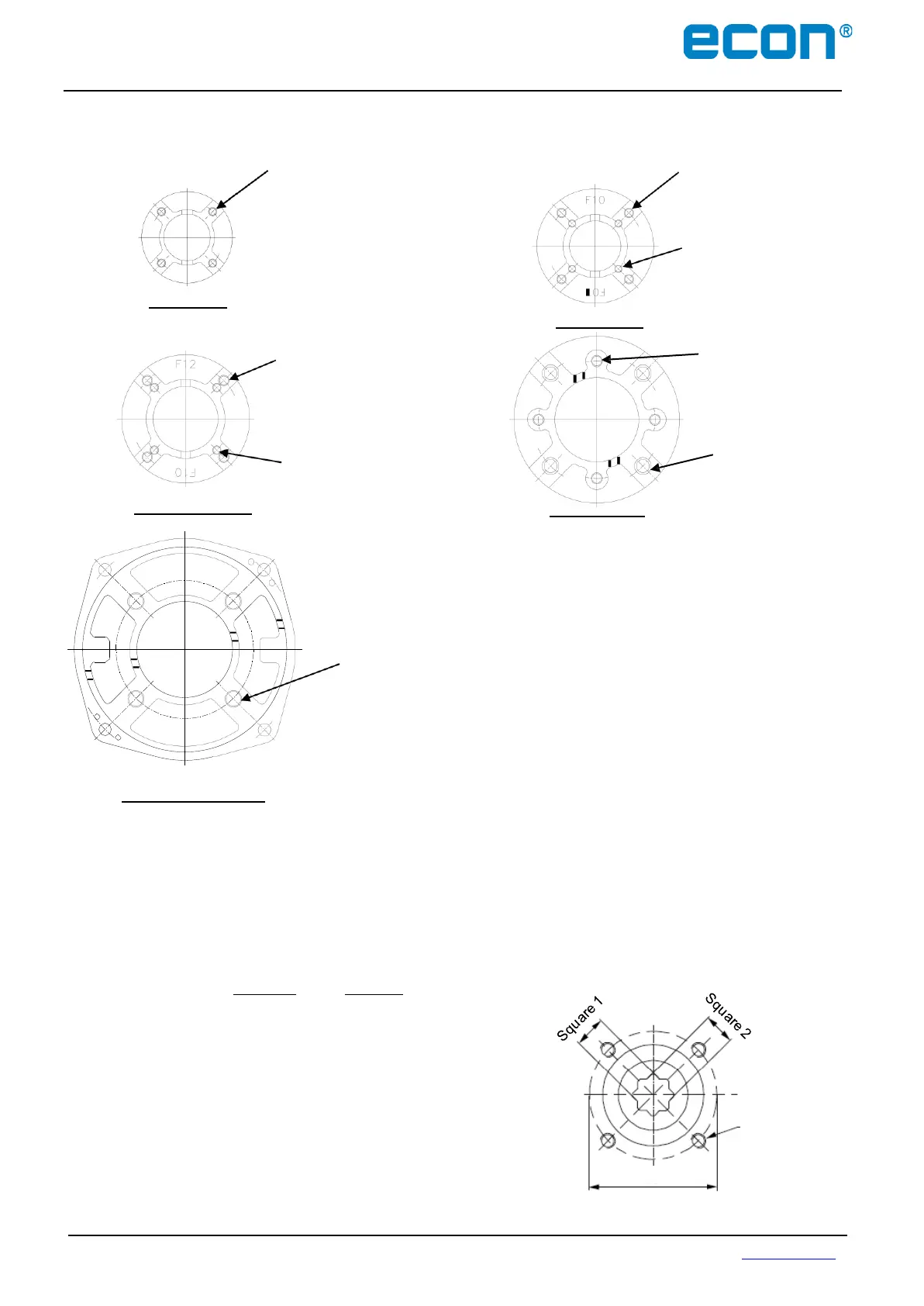

4.2.1 Actuator Mounting Base Details (ISO 5211)
4-M8TAP
D.P12
P.C.D
Ø
70
(ISO 5211 F07)
ELA80/100
ELA150/200
4-M10TAP D.P15
P.C.D
Ø
102
(ISO 5211 F10)
4-M8TAP
D.P12
P.C.D
Ø
70
(ISO 5211 F07)
4-M12TAP
D.P18
P.C.D
Ø
125
(ISO 5211 F12)
4-M10TAP D.P15
P.C.D
Ø
102
(ISO 5211 F10)
ELA300/500/600
ELA800/1200
4-M12TAP D.P18
P.C.D
Ø
125
(ISO 5211 F12)
4-M16TAP D.P24
P.C.D
Ø
140
(ISO 5211 F14)
4-M20TAP
D
.
P
30
P.C.D Ø
165
(ISO
5211
F
16
)
ELA2000/2700/3000
4.2.2 Actuator Drive Bushing
ELA actuators have a Double Square (star) driving bush, which can be replaced by another dimension to
fit the valve stem. This means that the actuators are suitable for valves with a parallel or diagonal stem
connection. Also drive bushings with a double-D shape or round shape with keyway are available as an
option. Hereunder the ELA-versions with standard connection
and possible double square options can be
found:
Standard Optional
ELA80 DS 17mm DS 9-11-14-16mm
ELA100 DS 17mm DS 9-11-14-16mm
ELA150 DS 17mm DS 11-14-19-22mm
ELA200 DS 17mm DS 11-14-19-22mm
ELA300 DS 22mm DS 14-17-19-27mm
ELA500 DS 27mm DS 14-17-19-27mm
ELA600 DS 27mm DS 14-17-19-27mm
ELA800 DS 27mm DS 22mm
ELA1200 DS 27mm DS 22-30mm
ELA2000 DS 36mm DS 27-46-55mm
ELA2000 DS 36mm DS 27-46-55mm
ELA3000 DS 46mm DS 27-36-55mm
Threaded bolt
holes 4x
Pitch
