eControls RT2 User& Installer's Manual

INSTALLER SECTION

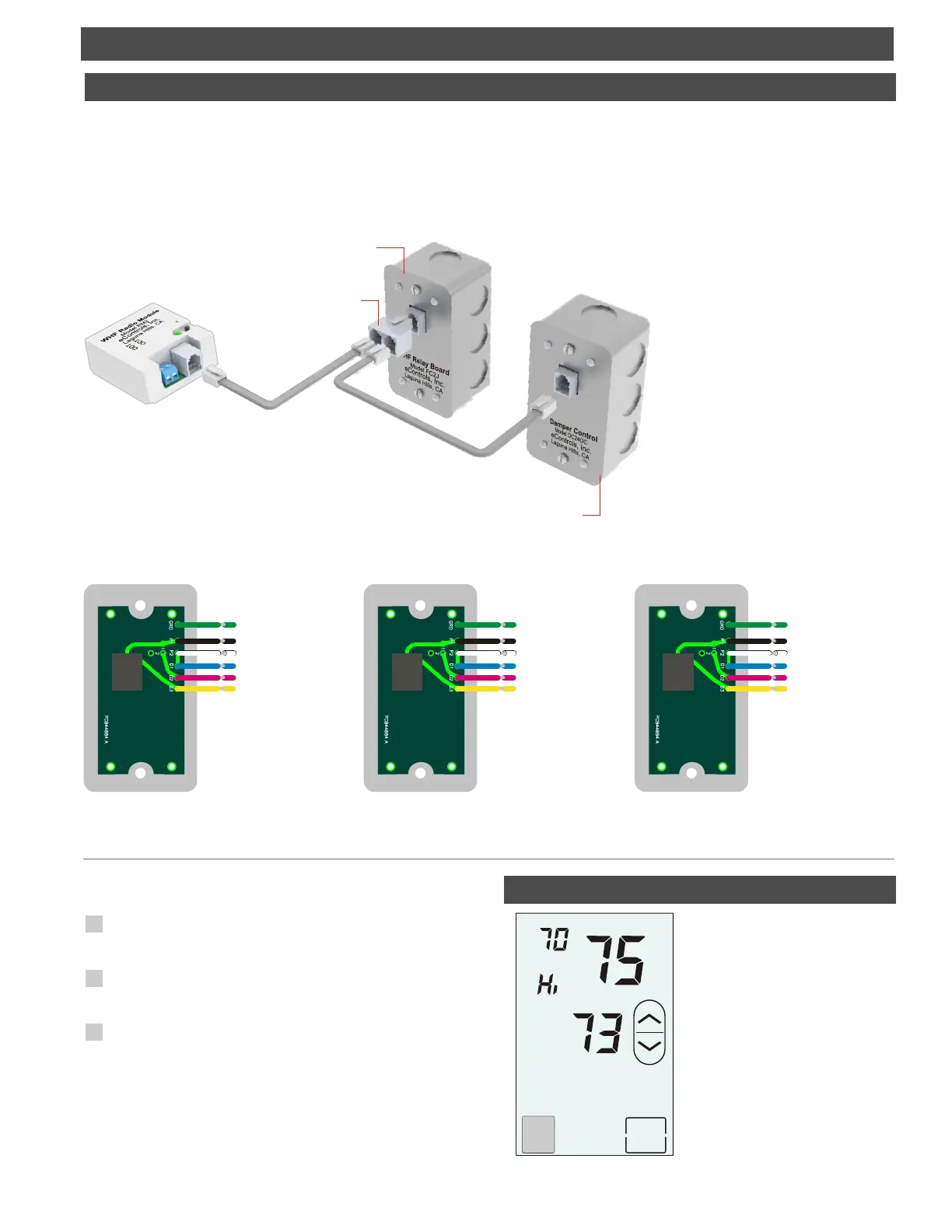

Installing the Optional Damper Control
The Damper Control is used when power actuators are
required for heavy duty dampers with higher thermal
insulation.
Model DC120-O Model DC120-OC Model DC24-OC
FC2J Relay Board
Electrical box on WHF
New electrical box
3-foot RJ11 cable
supplied with FC2J
3-foot RJ11 cable
supplied with Damper
Control
Damper Control
RJ11 Splitter supplied
with Damper Control
RM2 Radio Module
To Ground To Ground To Ground
To 120VAC Power To 120VAC Power To 24VAC Power
To 120VAC Neutral To 120VAC Neutral To 24VAC Com
To Damper Neutral To Damper Neutral To Damper Com
To Damper 120VAC To Damper Close To Damper Close
To Damper Open To Damper Open To Damper Open
Set the FAN number
(Only required when using more than 1 WHF)
Set ADDRESS number
(Only required if other RT2 installations within 300 feet)
Select Type of WHF
1
2
3
INSTALLER OPTIONS
Outdoors
Linked
Set To
Cool
Indoors
Econo
Cooling
o
F
Menu
Access the Installer Options
by pressing and holding the
MENU key for about 7
seconds until Option 01 is
displayed.
OFF
ACCESS INSTALLER OPTIONS
The Damper Control is installed in a separate electrical
box and coneected to the damper actuators and either
24VAC or 120VAC depending on the actuators and
corresponding Damper Control being Used.
7
